Shaft Mount Pins (QCSJ)

One Touch Fasteners - Shaft Mount Fasteners (QCSJ)


One Touch Fasteners - Shaft Mount Fasteners (QCSJ)
One Touch Fasteners - Shaft Mount Fasteners (QCSJ)

Part Options


Description

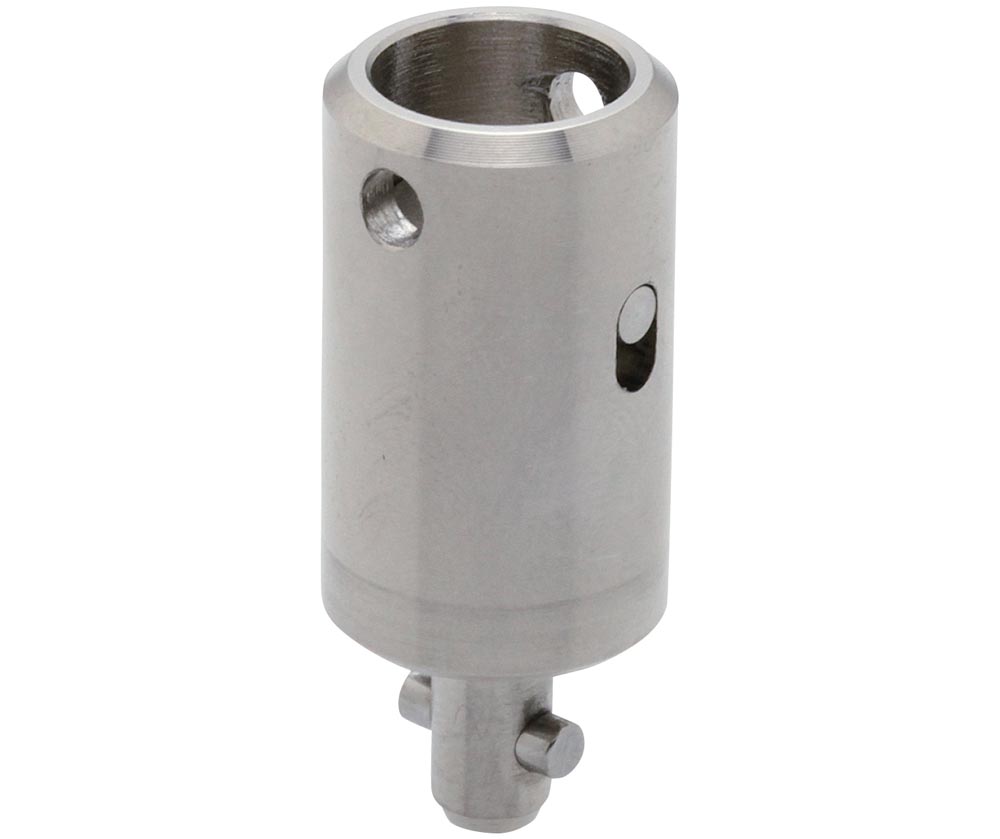

These shaft-mount fasteners provide positive locking in quick change applications where there is frequent insertion and removal of a fixture. They allow for consistent fastening force eliminating the chance for under or over tightening by the operator. They are designed to be used with QCSJ-series cam receptacles. The fastener is designed to be mounted to a shaft for extended reach and the receptacle is mounted to the base. As the fastener is inserted into the receptacle, the pins on the fastener align with the grooves in the receptacle. Rotating the fastener one quarter turn aligns and locks the fasteer into place. The body and shank are made from 1045 steel with an electroless nickel plated finish. The pin is made from 304 stainless steel. The spring is made from 304-CSP stainless steel.
