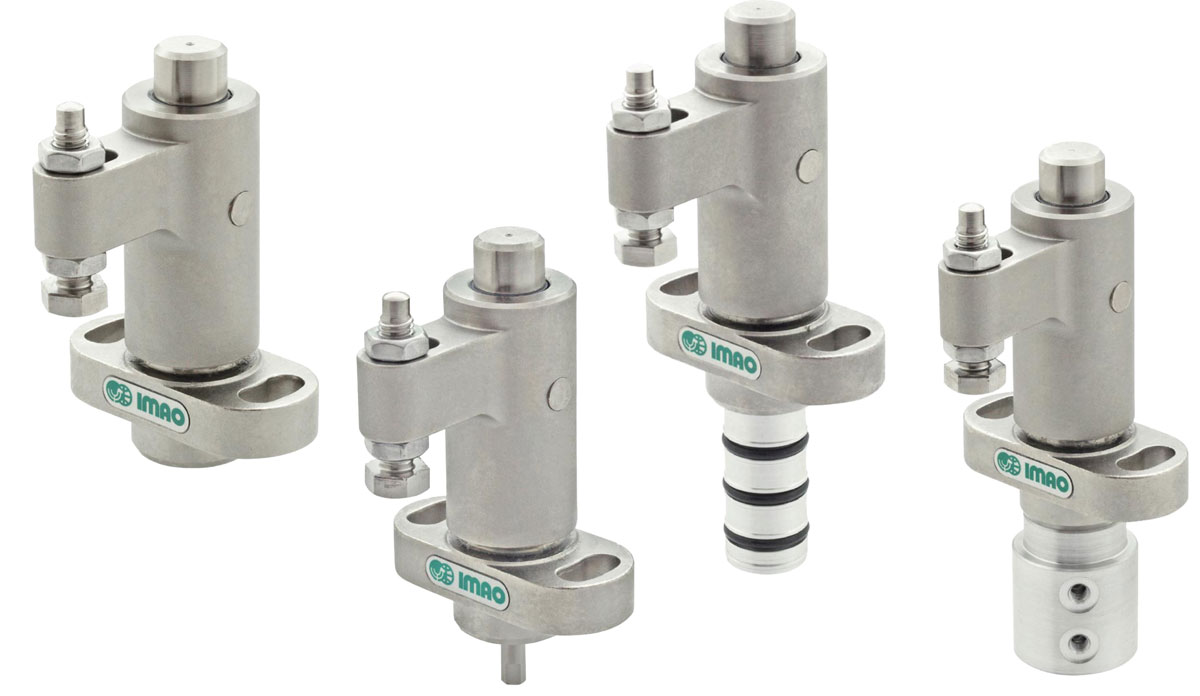

Compact Pneumatic Swing Clamps

High-force, space-saving clamping actuated by air

cc

Engineered for automated clamping applications, featuring a unique hybrid mechanism that combines mechanical locking with pneumatic actuation.

Wedge clamping mechanism provides up to 5 times stronger clamping than a pneumatic cylinder of the same size.

Reduce workpiece setup time and provide stable clamping.



Pneumatic Swing Clamp Features

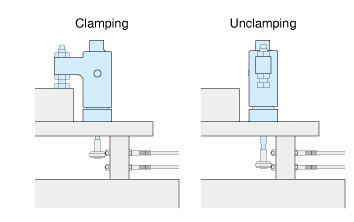

Quick and Constant Pneumatic Clamping

  • Reduce workpiece setup time and provide stable clamping.

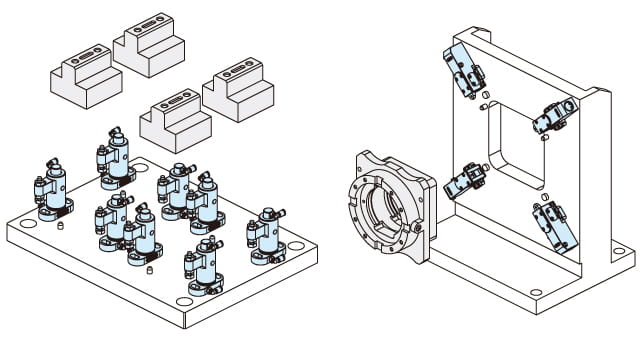

Compact Design

  • Compact size allows installment in tight places.
cc







  • Small body allows multiple clamping at a time in limited space.
cc

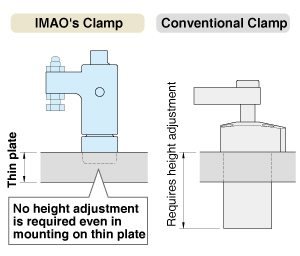

Easy Mounting

  • Mounts from the top with two mounting holes.
  • Choose left or right clamping direction.
cc

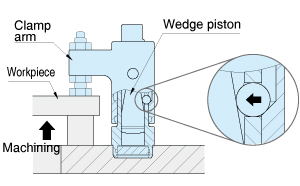

High Clamping Force

  • Wedge mechanism generates approximately five times the clamping force of the same size air cylinder.
cc





  • Wedge mechanism allows the clamp arm to stay firm against any reaction force.
cc





Application Example

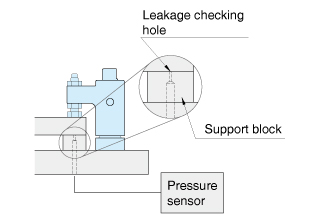

Standard, Air Leakage Checking

  • The pressure sensor detects clamping/unclamping conditions by preparing the air leakage checking hole.
cc





With Rod

  • Clamping/unclamping conditions can be detected by a switch.
cc

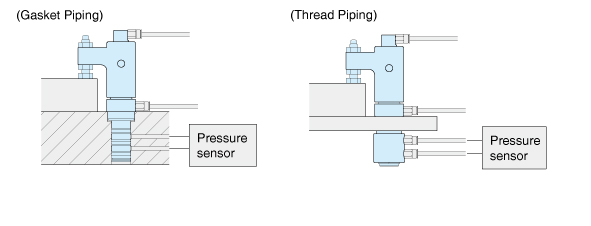

With Detecting Ports

  • Used with pressure sensors, clamping/unclamping conditions can be detected.
cc







View All Pneumatic Swing Clamps
