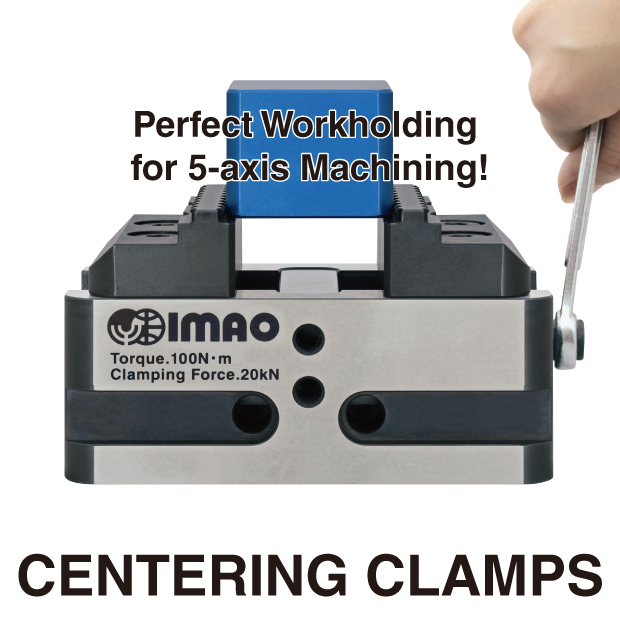

Self-Centering Vises

Center-moving jaws provide stable workpiece centering settings. Ideal for 5-axis machining.

cc



Demonstration Video

Features

cc

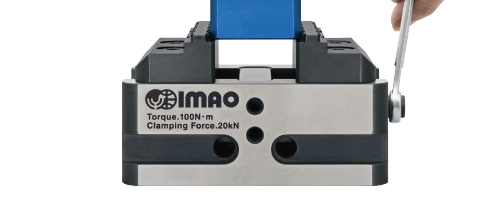

The jaws move toward the center. This always provides stable workpiece centering settings. Ideal for 5-axis machining.

cc

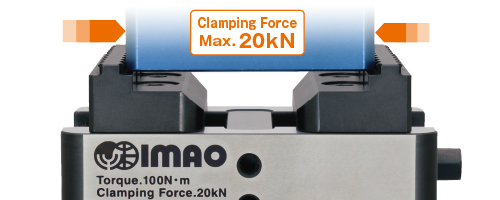

Clamping Force at 20 kN

High-rigid design allows strong clamping force of 20 kN. Small clamping area (serrated jaw: 3.5 mm / dovetail jaw: 3 mm) saves the loss of raw material.



cc

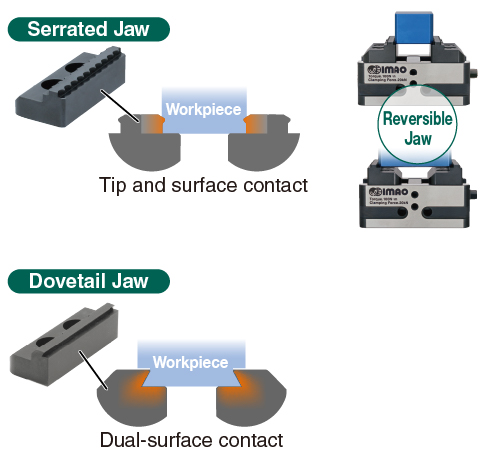

Two Choices of Jaw Style

Use serrated jaws for strong bite. Use dovetail jaws for rigid dual contact clamp. Choose the jaw style that meets your application needs.

cc

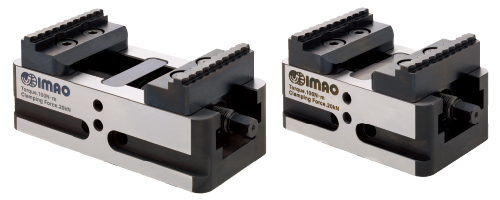

Compact Body

Can be easily mounted onto a small machine pallet. 130mm and 170mm sizes are available.



Types

Centering & 5 Axis Vises

Centering & 5 Axis Vises



The TriMax G and TriMax S vises are designed for high precision 5-axis machine milling operations.



View Products







Line up

G Series

5-Axis Vises

Includes jaws with TG GripSerts

S Series

Centering Vises

Basic or premium, with GripSert-equipped jaws

CP170-N

Centering Vises

Compact, self-centering

G Series

Vise Jaws

Smooth/grooved, round grippers, or for TG Gripserts

S Series

Vise Jaws

Basic or premium, fits TG GripSerts

CP175

Vise Jaws

Serrated or dovetail jaws, use on CP170-N vises
