SpeedLoc Locator System

Powerful clamping with Precise alignment and positioning.

Speedloc Locators



The SpeedLoc™ precision locating and mounting system is designed to solve the common difficulties associated with precision attachment and removal of fixtures, fixture plates, and accessories on both vertical machining centers and horizontal machining centers. This unique system alleviates the prying, pounding, and/or use of jack screws of associated methods. The SpeedLoc’s unique design allows the precision locator to mechanically extract itself from the receiver when removing. This allows for easy separation of fixtures, fixture plates, and accessories. Another advantage the SpeedLoc precision locating and mounting system has over competing products is that the SpeedLoc locators do not require expensive “repair kits” associated with rubber o-ring failure or ball bearings falling out or fracturing. The system is made up of precision locators, receivers, and liner bushings.The SpeedLoc system delivers powerful clamping with precise alignment and positioning with workholding accuracy of ±.0004".



BENEFITS



connection

EASY TO USE

Easy locating and self-extracting bodies.

efficient

EFFICIENT

Locate and fasten in one operation.

accurate

ACCURATE LOCATING

Workholding accuracy of ±.0004".

Strong

HEAVY DUTY LOADS

Clamping strength up to 45,000 lbs.

Application

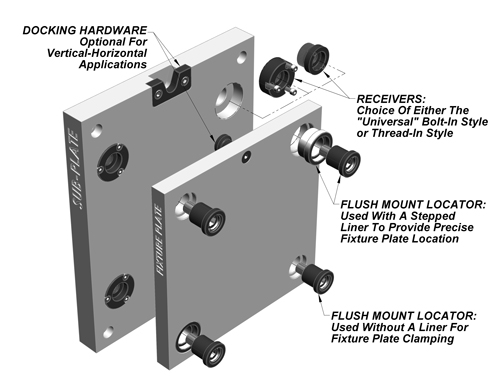

SpeedLoc Flush

SpeedLoc flush

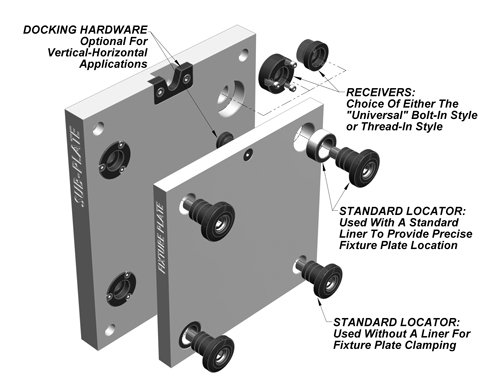

SpeedLoc Standard

SpeedLoc Standard

Types



SpeedLoc Locator System

SpeedLoc Locator System



The system is made up of precision locators, receivers, and liner bushings. Designed to solve the common difficulties associated with precision attachment and removal of fixtures, fixture plates, and accessories. This unique system alleviates the prying, pounding, and/or use of jack screws of associated methods.



View Products

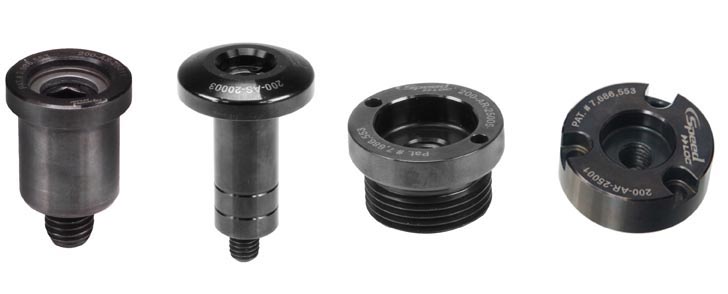

Line up

SpeedLoc Bolt-in Receivers (MPAR)

SpeedLoc system receiver.

SpeedLoc Docking Hardware (MP-DH)

SpeedLoc system docking plate and positioning stud.

SpeedLoc Flush Mount Locators (MPAS)

SpeedLoc system locator.

SpeedLoc Standard Bushings (MPAL)

SpeedLoc system. Steel.

SpeedLoc Standard Locators (MPAS)

SpeedLoc system locator.

SpeedLoc Stepped Bushings (MPAL)

SpeedLoc system. Steel.

SpeedLoc Thread-in Receivers (MPAR)

SpeedLoc system receiver.
