Fixtureworks
Fixtureworks

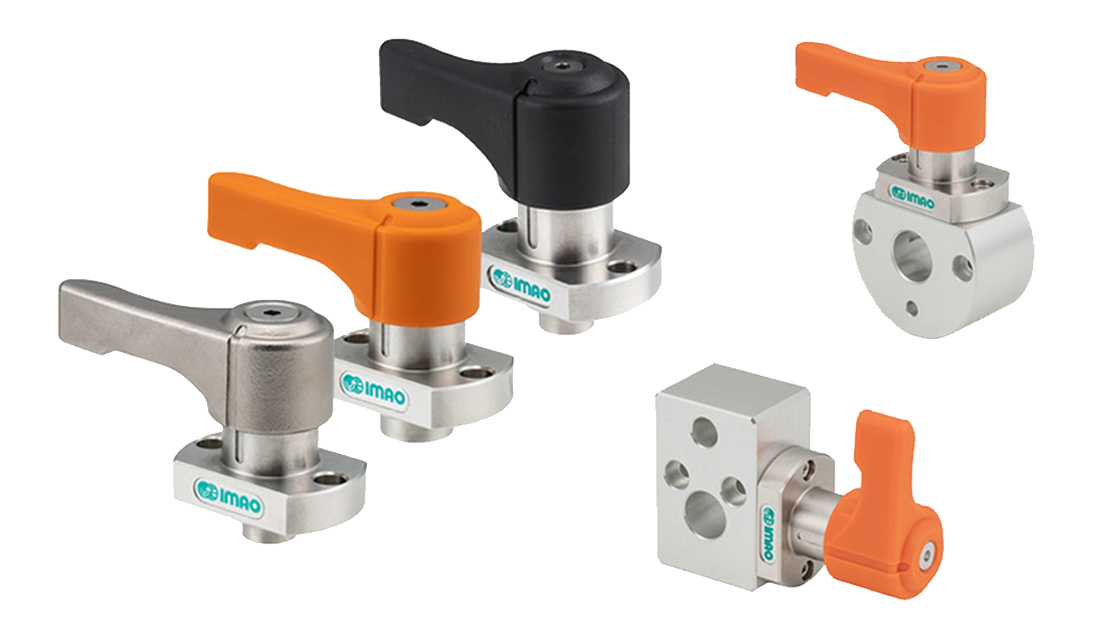

Push Lock Clamps for Slide and Angle Adjustment

Quick, reliable operation without over/under tightening

push lock clamps



One Touch Push Lock Clamps are quick locks that provide easy, tool-less locking with a simple turn for slide and angle adjustment.
The internal spring keeps the clamping force constant to prevent over/under tightening. The indication line and touch of a click allow any user a secure and reliable operation.
These locks are versatile enough to clamp various objects such as flat bars, round shafts and linear rails in many sizes.
One-Touch Clamps are available in a wide variety of sizes, clamping forces, and clamping directions.
IMAO's One Touch Push Lock Clamps reduce setup time and increase productivity.





PRODUCT VIDEO







Push Lock Clamp Features



Quick & Easy Clamping

  • Achieve fast slide and angle adjustment with a simple turn of the handle.
  • When engaged to lock, piston is pushed out to clamp an object such as a flat bar or shaft.

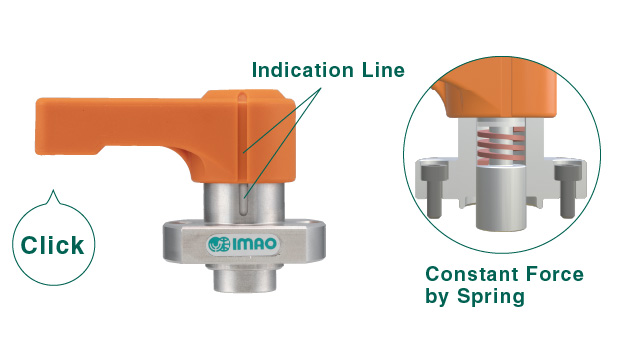

Secure Clamping

Allows any user error-free clamping with



  • Constant clamping force
  • Indication line
  • Touch of a click
cc

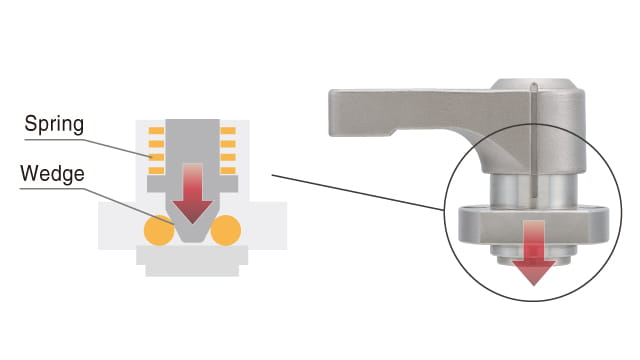

Also Available - Heavy-Duty Version

  • Clamping force of 1100 N achieve with the simple turn of the handle.
  • Wedge mechanism added for constant, strong clamping force.
  • Ideal for applications requiring extra holding force and torque.
cc

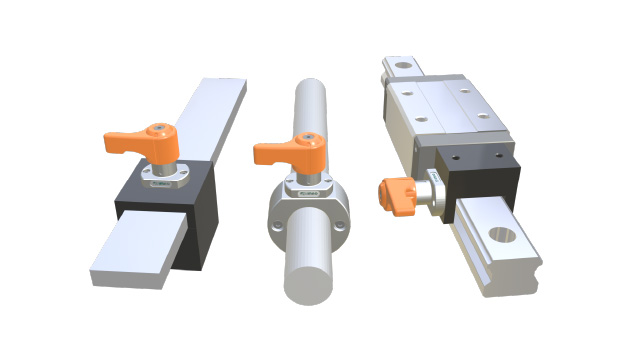

Suitable for Various Objects & Sizes

  • Flat bars
  • Round shafts
  • Linear rails
  • In many sizes
cc





Lineup of Push Lock Clamps

QCPS

Sliding Locks

Push lock clamp

QCPSS

Sliding Locks

Push lock clamp, heavy duty

QCSHL

Sliding Locks

Push lock clamp, with collar
