Pneumatic Flex Locator + Form Holding Clamp System

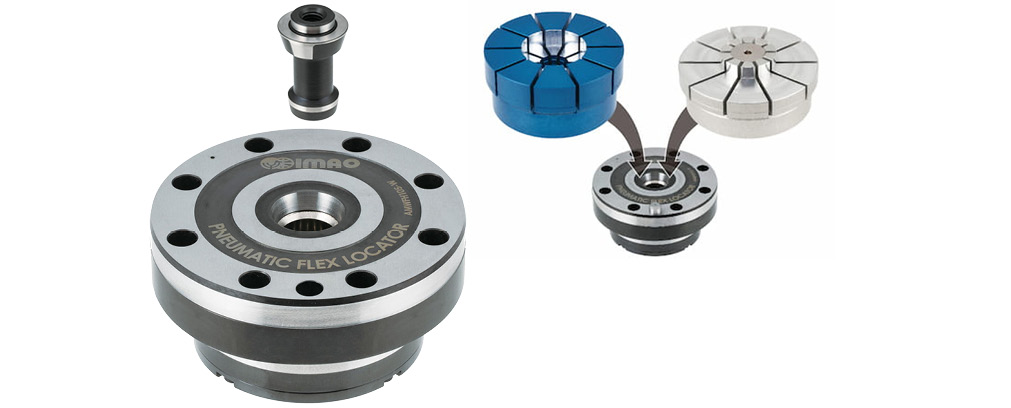

Heavy duty Pneumatic Locator



Zero point clamping system for quick & accurate changeover.
Instant heavy-duty clamping with air for quick-change applications.
Heavy duty type with highly accurate locating and high clamping force.
Doubles as form holding clamping system when used with ID/OD machinable jaws.



Use as a Heavy-Duty Pneumatic Clamping Locator

  • Clamping Module + Clamping Pin
  • Single-acting module with spring clamping, pneumatic unclamping
  • Turbo function boosts the clamping force
  • Locating Repeatability: 0.005 mm
  • Clamping Force with Spring: 4000 N / 8500 N
  • Clamping Force with Turbo: 12000 N / 26000 N

    •

  • AMWFH-WP Module DATASHEET
  • AMWFH-M Pins DATASHEET

    •







    Use as a Pneumatic Form-holding Clamp System



  • Clamping Module + ID/OD Form Holding Jaws
  • OD/ID clamping with machinable and interchangeable jaw
  • Workpiece Locating Repeatability: 0.03 mm
  • Jaw Locating Repeatability: 0.02 mm

    •

  • AMWFH-O OD Jaws DATASHEET

    •









  • AMWFH-I ID Jaws DATASHEET

    •









    LINEUP

    AMWFH-WP

    Pneumatic Clamping Locators

    Heavy duty, turbo air input, pin or form-holding

    AMWFH-O

    Pneumatic Clamps

    OD holding jaws, machinable, use with AMWFH pneumatic clamp

    AMWFH-I

    Pneumatic Clamps

    ID holding jaws, tapered screw, use with AMWFH pneumatic clamp
