Quick & Easy Locking with No Tools

• Tool-less quick clamping reduces workpiece setup times
• Just turn the handle to complete clamping
• Quick clamping without tool provides fast workpiece changeover

Fixture with Hydraulic/Pneumatic Clamps

• High unit costs
• Require complex design and maintenance

Less cost-effective than One-Touch solution

Fixture with One-Touch Clamps

• No piping
• No maintenance

Leads to a reduction in overall cost of fixture buildup

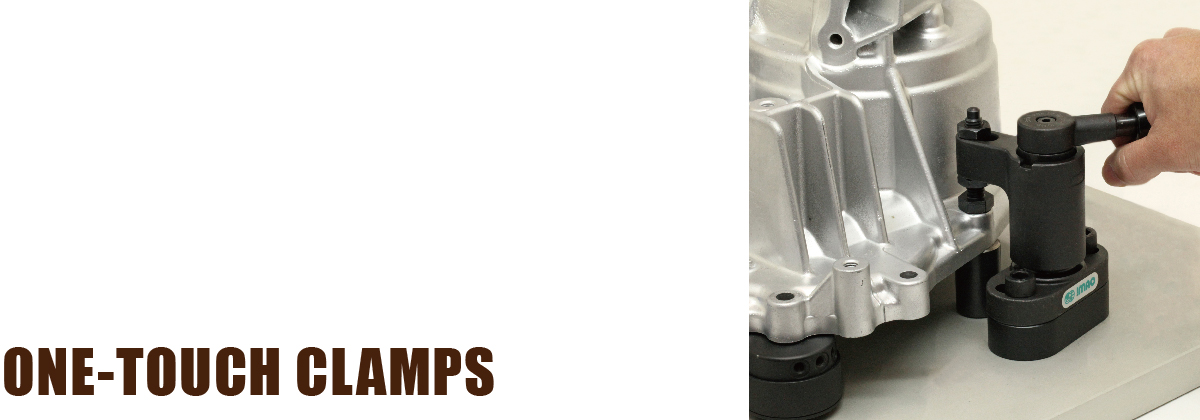

QLPDH Pull Clamp is utilized for interference-free hole drilling and milling on a horizontal machining center.

QLSCL-R Side Clamps featuring low profile design are utilized for hole and pocket machining on a vertical machining center.

Fixtures with One-Touch Swing Clamps simplify operation for product inspection.

Swing Clamps

• Swing clamps are designed to rotate into position and then clamp down as the lever is rotated by the user
• Adjustable handle version provides higher clamping force and longer clamping stroke
• Adjustable clamping force on the replaceable handle version
• QLSWC  Swing clamp
• QLCWC  Cam lever

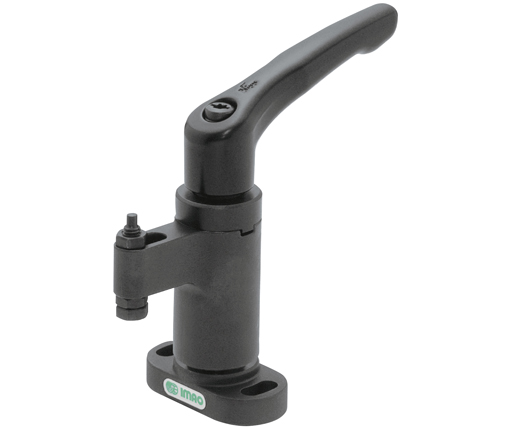

• QLSWC Adjustable handle

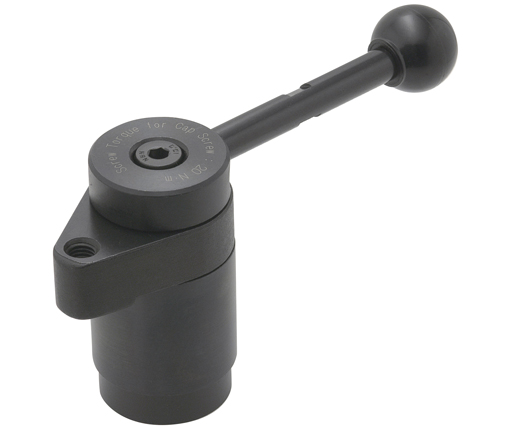

• QLSW  Replaceable handle

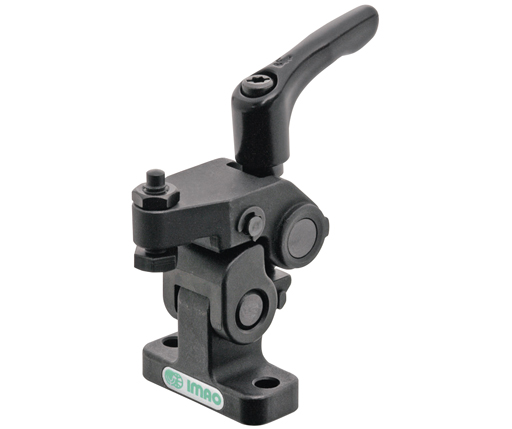

Retractable Clamps

• Clamps rock back completely away from the workpiece for easy loading and unloading
• Adjustable handle version provides higher clamping force and longer clamping stroke
• Retractable clamp arm on cam handle version
• QLRE  Adjustable handle

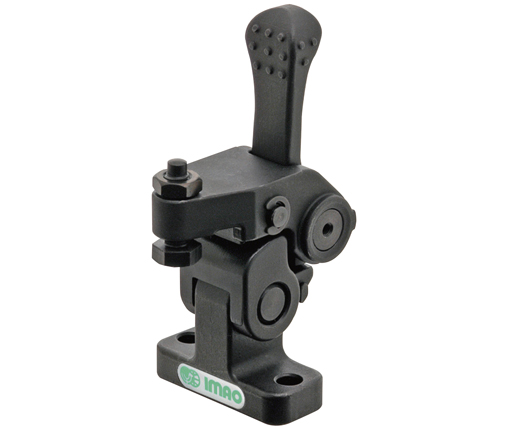

• QLRE  Cam handle

Push Thrust Clamps

• Features a clamping body and a clamping bar used together for workholding
• Long clamping bar travel to clamp recessed part
• Light or heavy duty versions available

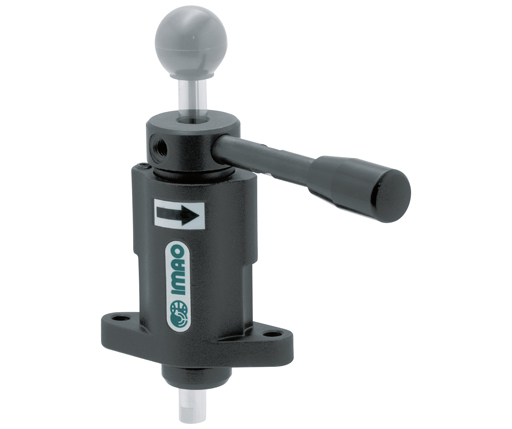

• QLRCF  Vertical thrust

Cam Clamps

• Turn handle to force plate or piston against the workpiece
• Compact for limited space environments

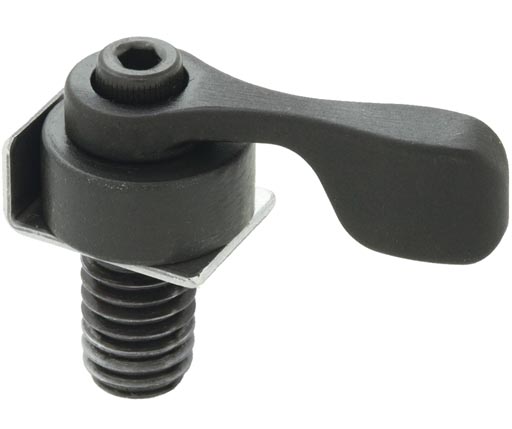

• QLSCH  Compact spiral
• QLCP  Low-profile

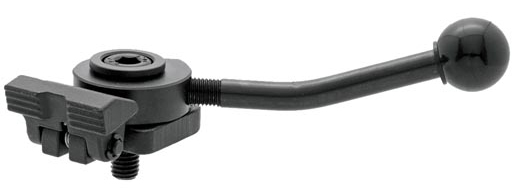

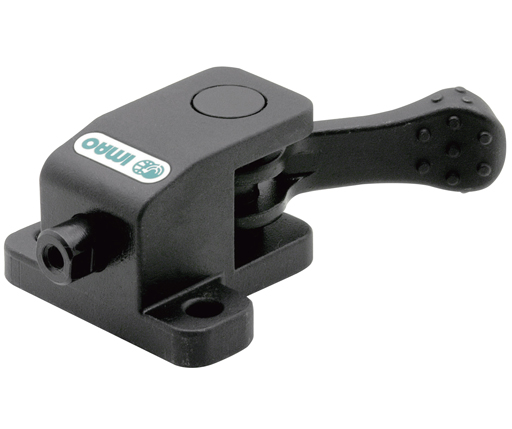

Cam Edge Clamps

• Cam forces jaws forward for fast, secure workholding
• Cam lever version provides strong clamping for top surface machining
• Low-profile version is perfect for thin workpieces
• Cam edge version pushes down the workpiece
• QLSCH  Cam lever

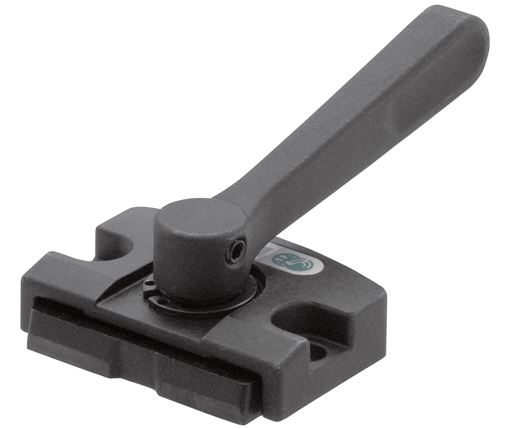

• QLCL-R  Low-profile

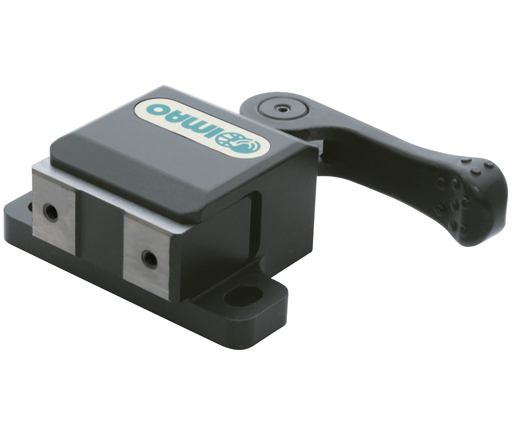

• QLSC Cam edge

Side Thrust Clamps

• Features a clamping body and a clamping bar used together for workholding
• Long clamping bar travel to clamp recessed part

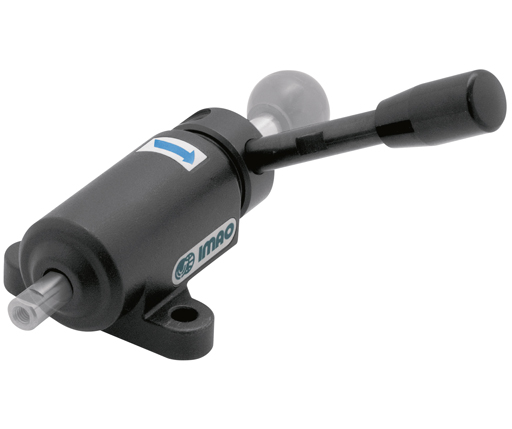

• QLRCF  Side thrust

Pull Clamp

• Clamp pulls pin downward to secure workpiece
• Clamping pin or clamping screw are available
• Heavy duty version for higher clamping force

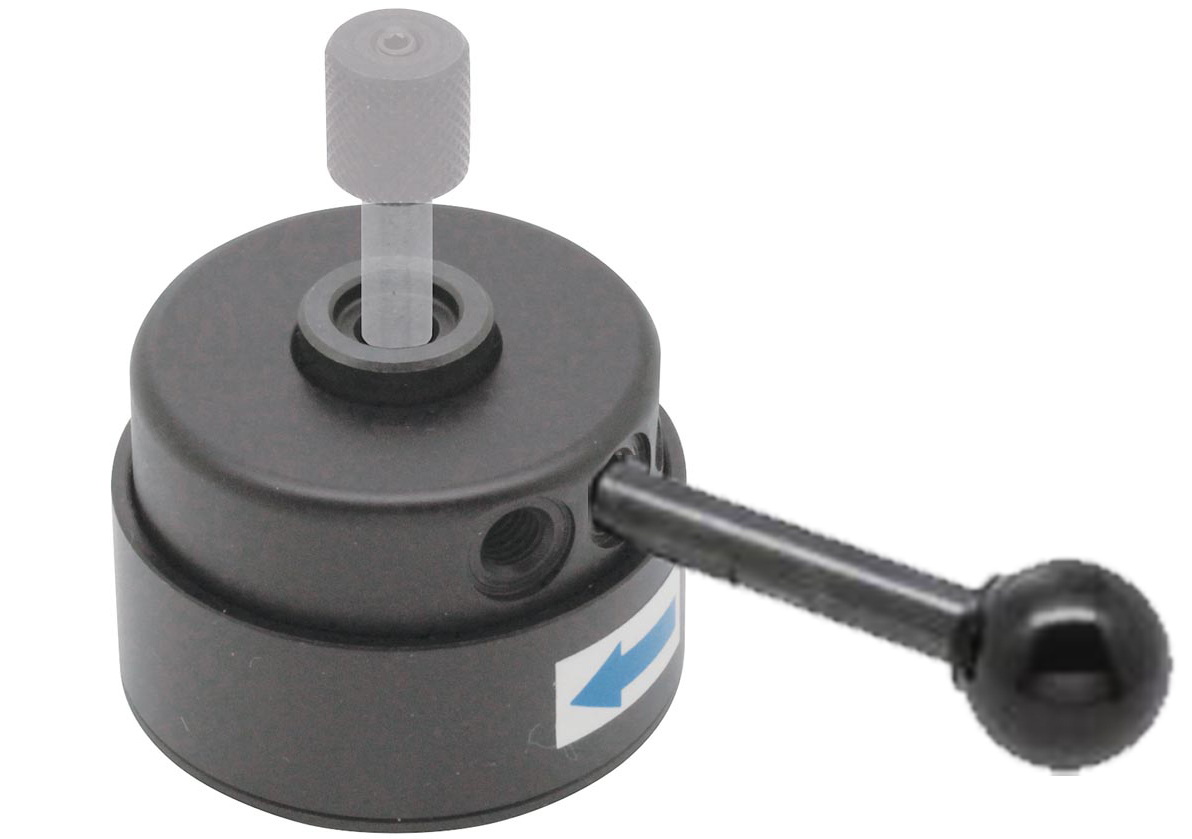

• QLPD  Pull clamp
• QLPDH  Heavy duty

Push Clamp

• By rotating handle, center piston rises and pushes up the workpiece
• QLPU  Push clamp

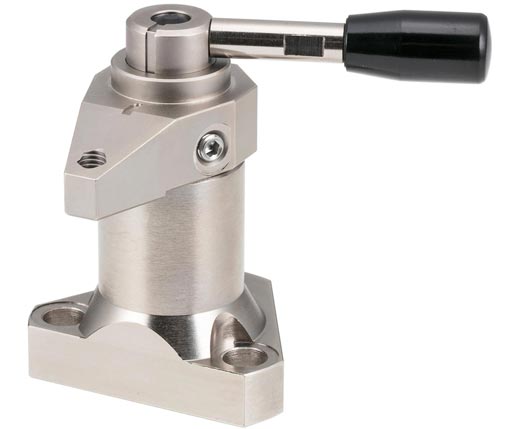

Stablelock Swing Clamp

• Constant clamping force at every operation
• Clamping completion is indicated with a click
• Clamp arm swings along with handle operation
• QLSWW  Swing clamp

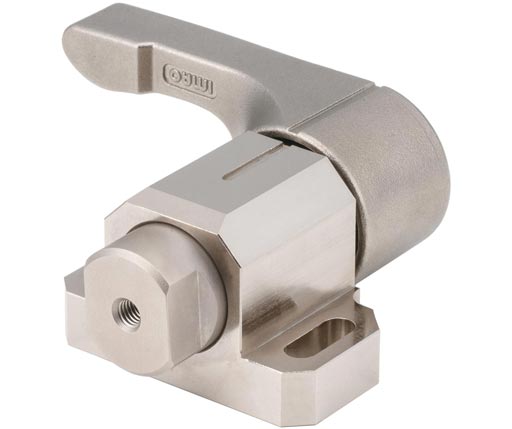

Stablelock Thrust Clamp

• Constant clamping force at every operation
• Clamping completion is indicated with a click
• Free clamp bar travel to clamp various parts
• Also available as a pull clamp
• QLRCW  Thrust clamp

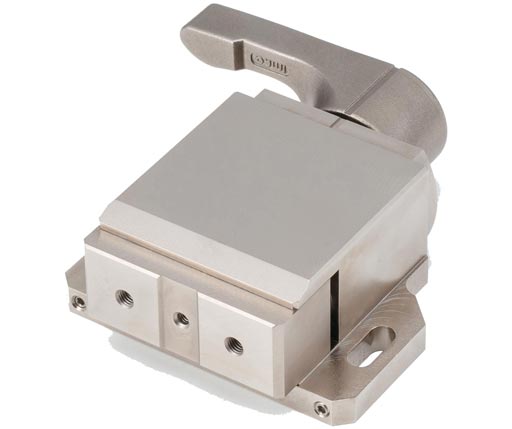

Stablelock Side & Push Clamps

• Constant clamping force at every operation
• Clamping completion is indicated with a click
• Full face side clamp provides strong clamping for top surface machining
• Compact push clamp allows space-saving for top surface machining
• QLSCW  Side clamp
• QLSCW  Push clamp

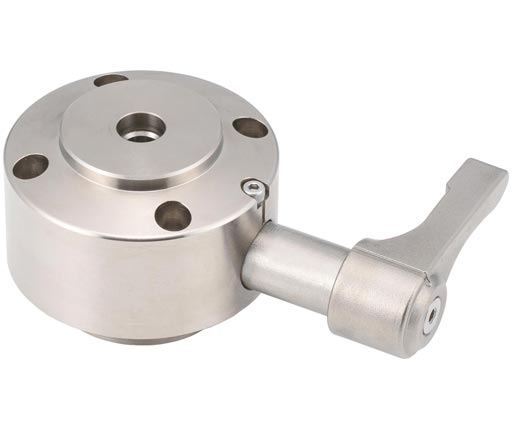

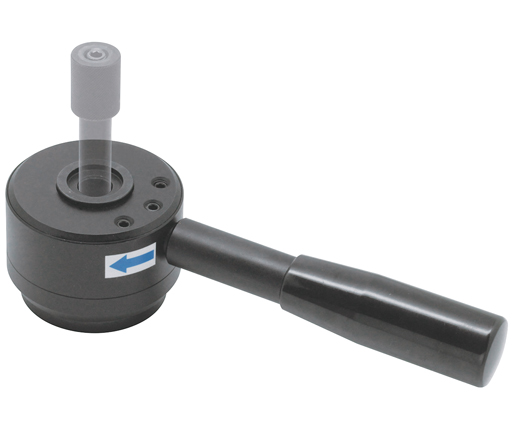

Stablelock Pull Clamps

• Constant clamping force at every operation
• Clamping completion is indicated with a click
• Use with clamping screws to pull down the workpiece
• Pull-down clamping allows unrestricted access to cutting tools
• Extension unit available to extend operate pull clamp operation to any position
• QLRCW  Pull down

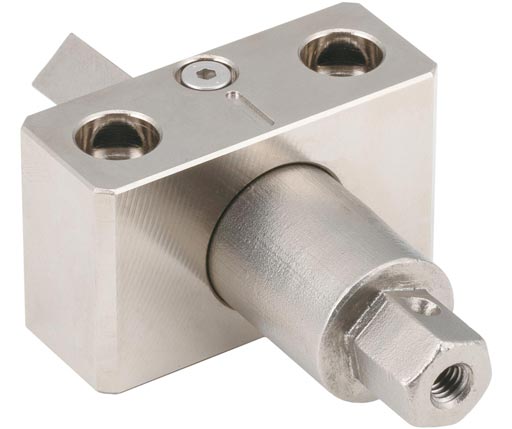

• QLPDW-RC  Extension unit
