OD Holding Clamps

cc



OD Holding Clamps with a machinable jaw are perfect for irregular-shaped workpieces. This simple workholding solution eliminates the need for custom fixtures.



OD Hold Down Clamp Features

cc

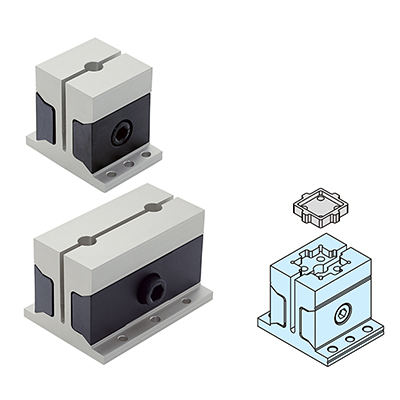

CP124

OD HOLDING CLAMPS (Wedge Style/Square)

Short-type clamps for single-clamping of small parts. Long-type clamps for dual-clamping two small parts or for single-clamping one long part.



cc

Structure



cc

When the locking screw is tightened, both jaws tilt toward the center to clamp the circumference of a part.



Jaw Size
W32xL40
W32xL80
W50xL50
W50xL100
cc

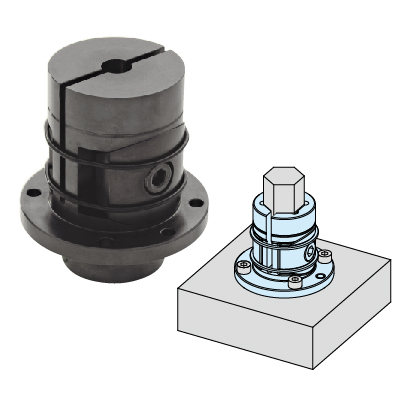

CP123

OD HOLDING CLAMPS (Wedge Style/Round)

Ideal for clamping small parts.



cc

Structure



cc

When the locking screw is tightened, both jaws tilt toward the center to clamp the circumference of a part.



Jaw Size
32 Dia.
50 Dia.



cc

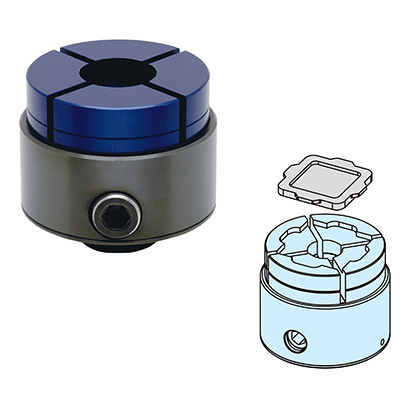

CP120

OD HOLDING CLAMPS

Economical way of workholding through jaw changeover for differently shaped parts.



cc

Structure



cc

When the locking screw is tightened, the central bottom part of the jaw is pulled down. At the same time the four jaw sections tilt toward the center to clamp the circumference of a part.



Changeable Jaws

cc



Jaw Size
65 Dia.
90 Dia.
cc

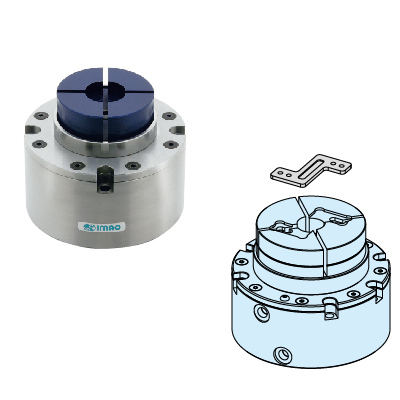

AMCH-W

PNEUMATIC OD HOLDING CLAMPS

Suitable for automated fixture for volume production.



cc

Structure



cc

When air is applied to the clamping port, the central bottom part of the jaw is pulled down. At the same time the four jaw sections tilt toward the center to clamp the circumference of a part.



Changeable Jaws

cc



Jaw Size
65 Dia.
90 Dia.

Form Holding Clamp Types



ID/OD Form Holding Clamps

form holding clamps



Designed to clamp onto the outside or inside diameters of the workpiece. Ideal for oddly shaped workpieces.



View Products







Lineup

CP124

Form Holding Clamps

OD holding, square wedge style

CP123

Form Holding Clamps

OD holding, round wedge style

MBOD

Form Holding Clamps

OD holding, concentric

AMCH-W

Pneumatic Clamps

OD holding, machinable aluminum jaws
