Compact Cam & Side Wedge Clamps

Fixture more parts on the machine table.

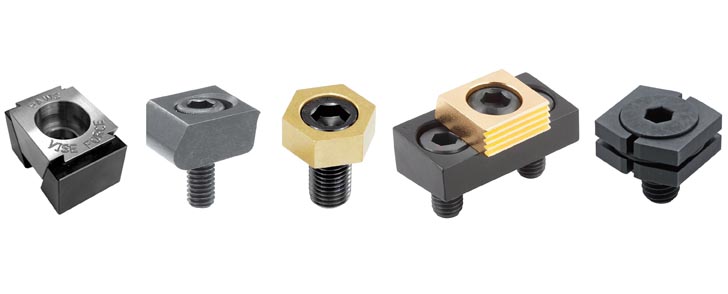

cam & wedge clamps



These compact clamps enable you to fixture more parts on the machine table, allow for faster setup.. Low-profile wedge clamps expand evenly and apply balanced workholding pressure to the workpiece. Compact cam clamps provide compact and economical clamping with high holding forces.

Compact, Low Profile Clamp Benefits



variety

VARIETY

Optimize space for dense workholding.

efficient

EFFICIENT

Clamp multiple workpieces in a single operation for greater efficiency.

economical

ECONOMICAL

Optimize space and clamp multiple workpieces for increased economy.

easy to use

EASY TO USE

Load and unload multiple workpieces easily.



Clamp Features



dimensions

Low profile designs

Low profile designs

force

High clamping forces

High clamping forces







Side Clamp Line up

VF

Side Clamps

Wedge type, smooth, serrated or machinable

CP132

Side Clamps

Wedge type, mini

CP135

Side Clamps

Cam type, compact, with or w/o handle

F658

Side Clamps

Cam type, system T, complete system set or separate components

F658

Side Clamps

Cam type, system S, complete system set or separate components

BJ162

Side Clamps

Spiral cam edge

CP133/134

Side Clamps

Compact, side or toe type

MB-102x/502x

Side Clamps

Cam type, hex, low profile

MB-260x/560x

Side Clamps

Pitbull, steel or brass

MB-6x/-8x

Side Clamps

Wedge type uniform clamping force
