Robotic Workpiece Clamping with Nutrunner Clamps!

Mechanical Clamps for Automation



  • Clamping automation by Imao's Nutrunner Clamps serves as alternatives to hydraulic clamps.
  • Tightening with nut runner installed on a robot actuates Nutrunner clamps to hold workpieces with high clamping force in machining and assembly line.
  • Mechanical design does not require hydraulic piping and simplifies fixture design and maintenance.
  • IMAO's robotic clamps achieve automated workpiece clamping with shorter fixture preparation time and lower fixturing cost than hydraulic clamps.
  •

    Nut Runner Swing Clamp Features

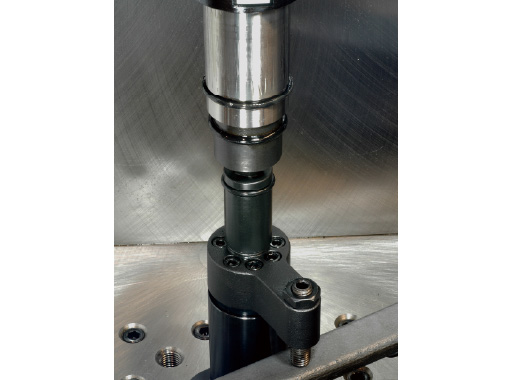

    Tighten swing clamp hex head with nut runner

    Allows automated clamping and unclamping in robotized production lines.

    other clamps





    High Clamping Force

    6 kN clamping force for heavy duty applications.

    other clamps







    Mechanical Clamping with No Hydraulic Piping

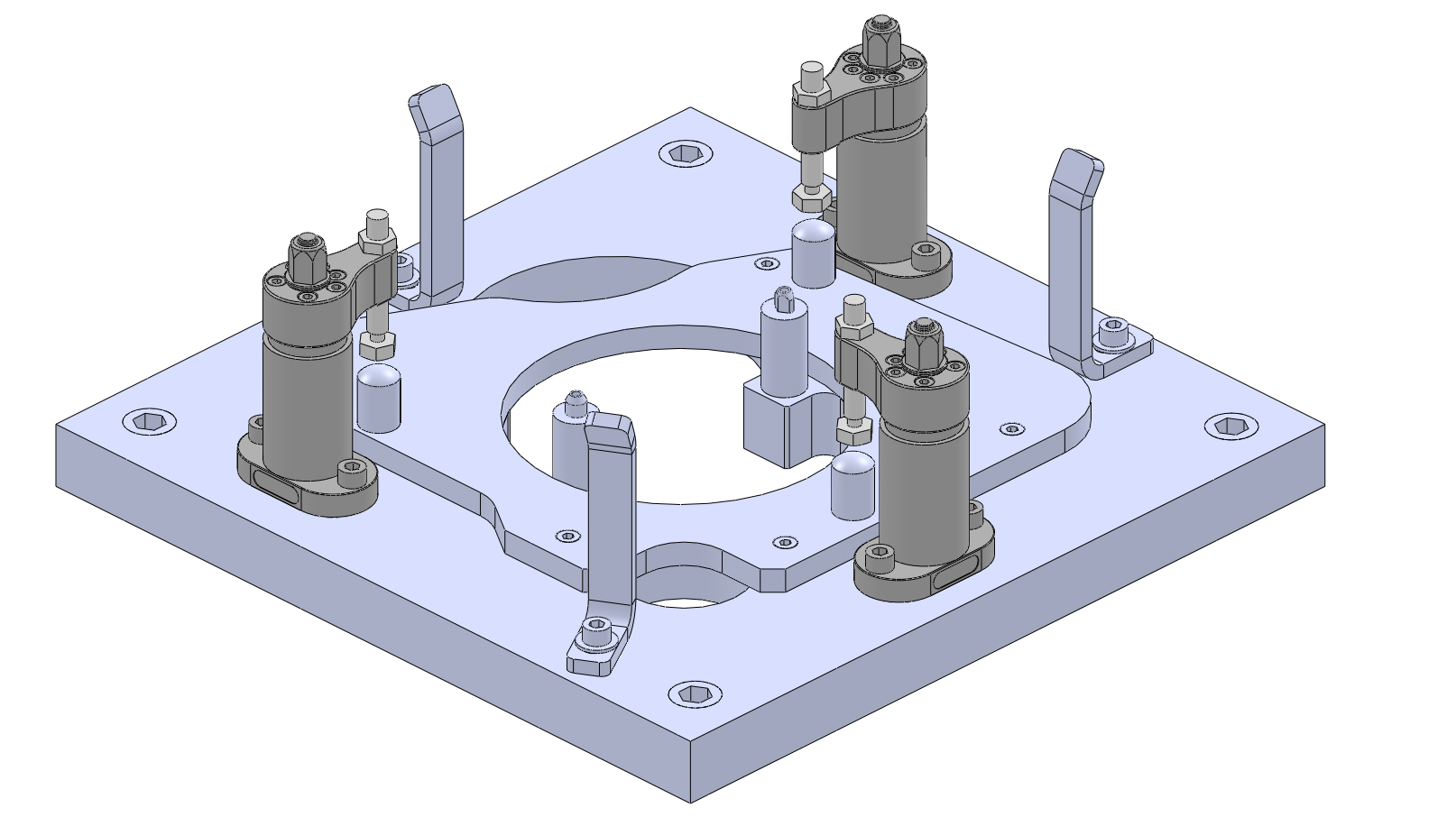

    Achieves easy fixture design & maintenance, low fixturing cost and pallet transfer.



    other clamps





    Custom Swing Clamp Arm

    Custom clamp arm is available to meet specific application requirements.





    Nut Runner Block Pull Clamp Features

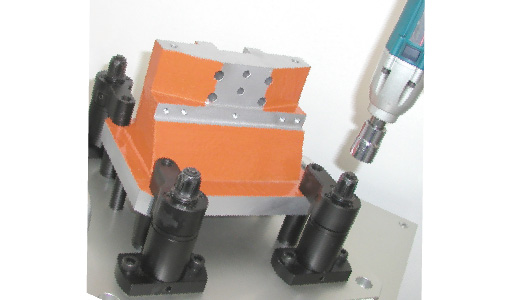

    Tighten block pull clamp hex head with nut runner

    Allows automated clamping and unclamping in robotized production lines.







    Nut runner Clamp Line Up

    PTPD

    Pull Down Clamps

    Block pull clamp and clamping screws

    PTSW

    Swing Clamps

    Nut runner hex head operation
