Fixtureworks
Fixtureworks

SPRING CLAMPS FOR CONSTANT CLAMPING FORCE

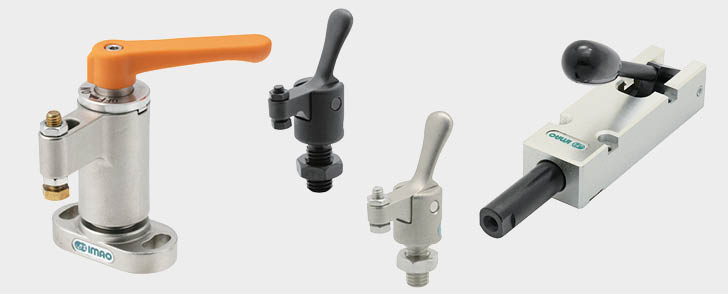

Spring Clamps



  • IMAO Fixtureworks Spring Clamps are mechanical tool-less clamps with constant clamping force by spring pressure
  • The handle clicks at its clamping end, leading to error-free secure clamping
  • Quick and easy tool-less clamping reduces setup times for quick changeover
  • Available in various clamping styles, quarter-turn fasteners, ball locking fasteners and pin holding



Features

Quick Clamping. No Tools Needed!

  • Quick and easy clamping with turn of the handle
  • Durable over 100,000 cycles

    •



    Click Indicates Clamping End

  • Error-free secure clamping without under or over tightening

    •

    Constant Clamping Force

  • Spring-loaded design generates constant clamping force
  • Prevents workpiece damages due to over tightening
  • Ideal for delicate workpieces such as plastic panels

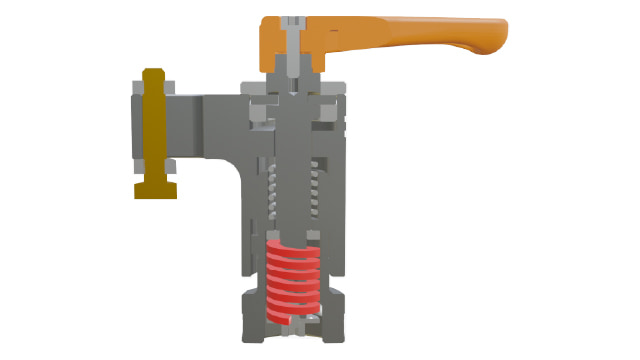

    • Spring Clamp Inner Spring Design



    Compact Design

  • Ideal for applications with height limitations

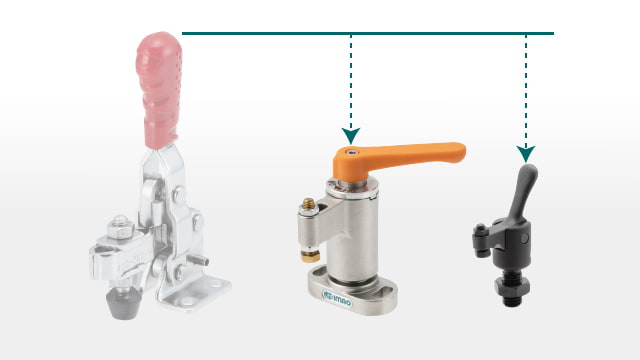

    • Spring Clamp size comparison





    Many options in clamping styles, clamping forces, sizes and materials are available

    Line up

    QLSNS

    Push Clamps

    Snap clamp, push style

    QLSWC-R/L

    Swing Clamps

    Spring-loaded, right or left

    QLRC

    Thrust Clamps

    Horizontal clamping body, light or heavy duty

    QLRCF

    Thrust Clamps

    Vertical clamping body, light or heavy duty

    QLPCT

    Thrust Clamps

    Precision style

    QLSND

    Toggle Clamps

    Hold down snap clamp, extension arm or adaptor

    QLSNDM

    Toggle Clamps

    Hold down clamp, miniature, steel or stainless
