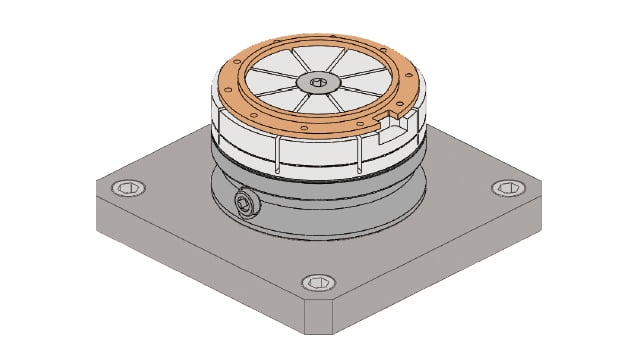

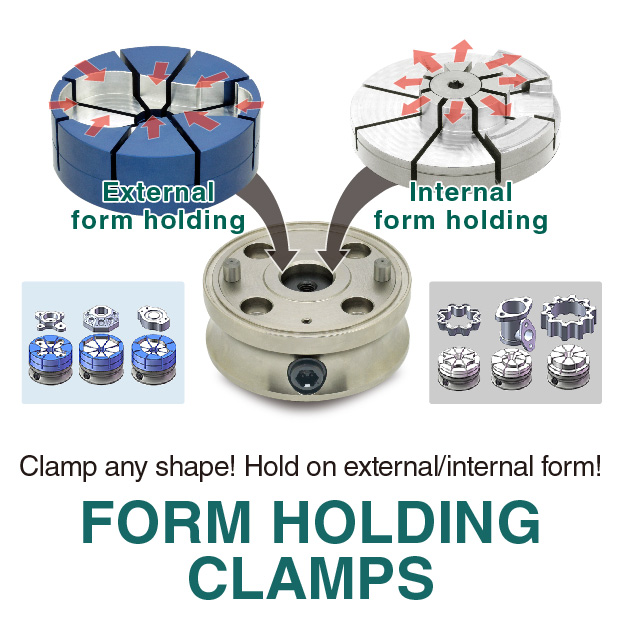

External Form Holding

cc

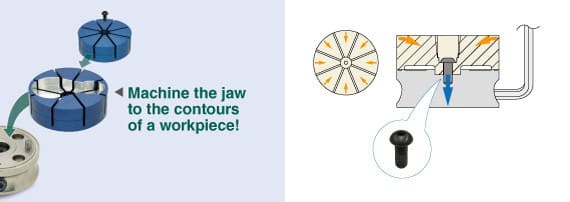

Clamping stroke: 0.3mm in diameter

When the cam cylinder is tightened, the central bottom part of the jaw is pulled down.

At the same time the eight jaw sections tilt toward the center for clamping.

Jaw Diameter Max. Clamping Force
f65 4.5kN
f90 7kN
f120 10kN
f160 12kN



cc

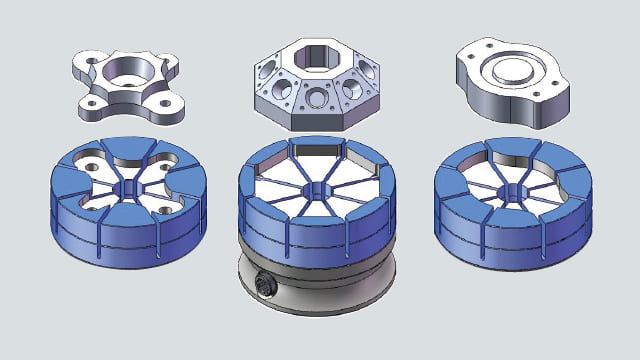

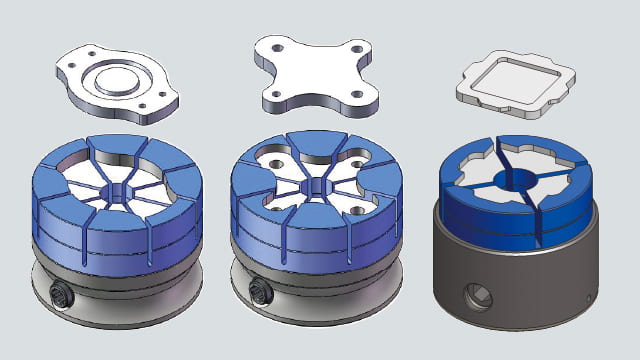

1. Prepare the jaw

cc

2. Machine the jaw

cc

3. Mount a workpiece

cc

4. Tighten the cam cylinder



Internal Form Holding

cc

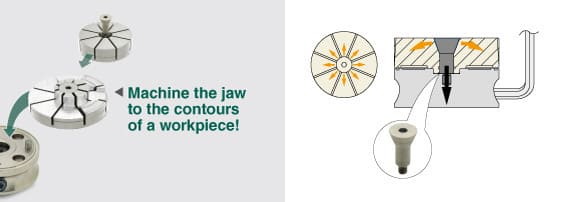

Clamping stroke: 0.3mm in diameter

When the cam cylinder is tightened, the tapered screw is pulled down.

At the same time the eight jaw sections expand for clamping.

Jaw Diameter Max. Clamping Force
f65 4.5kN
f90 7kN
f120 10kN
f160 10kN



cc

1. Prepare the jaw

cc

2. Machine the jaw

cc

3. Mount a workpiece

cc

4. Tighten the cam cylinder



Application Example

cc

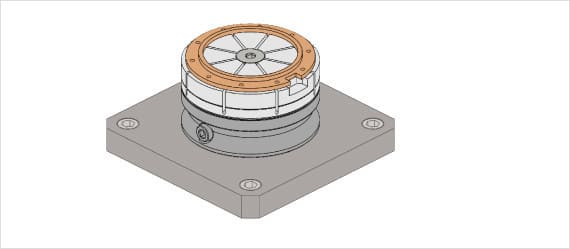

Low Profile Workpiece Clamping

Internal Form Holding Jaw-

Can clamp a thin workpiece by distributing the clamping force through the eight jaw sections.

Note: Control the tightening torque using adequate tools in reference to the data provided by the performance curve.

cc

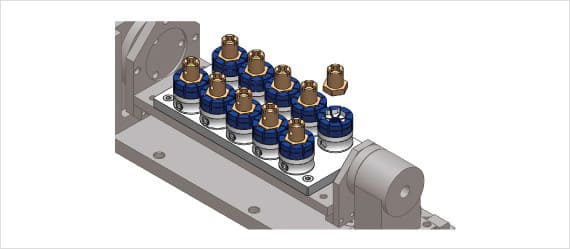

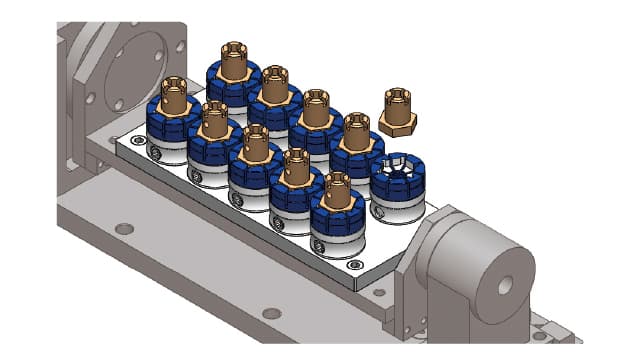

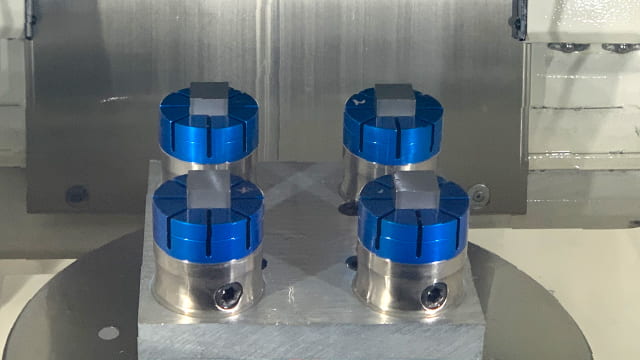

Multi-Piece Clamping

External Form Holding Jaw-

Small cylindrical body allows for multi-piece clamping in limited space.



cc

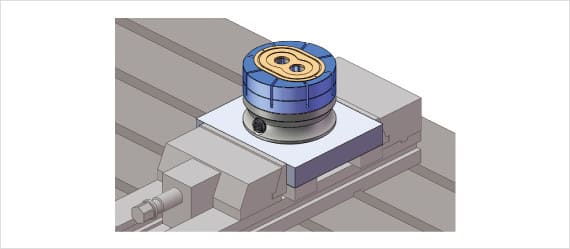

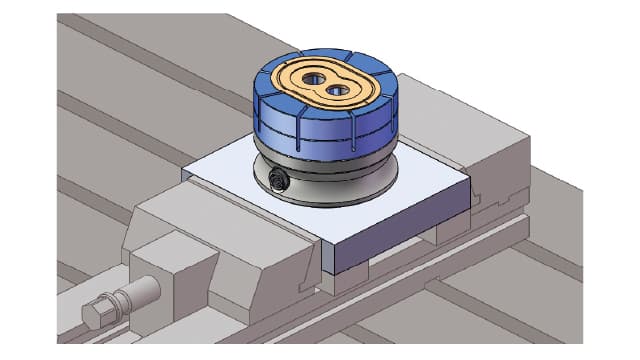

Fixture for Temporal Job

External Form Holding Jaw-

Can be mounted on an existing vise by attaching the clamp onto a plate.

cc

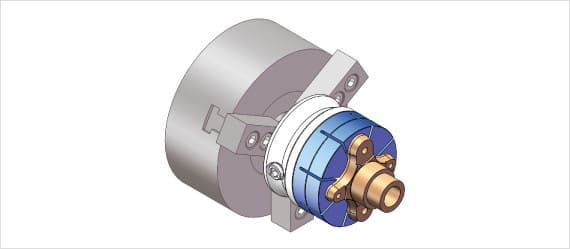

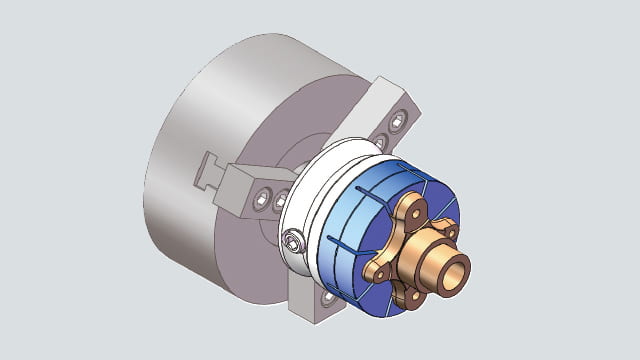

Fixture for Turning Lathe

External Form Holding Jaw-

Can clamp an odd shape that a chuck cannot clamp.

Types

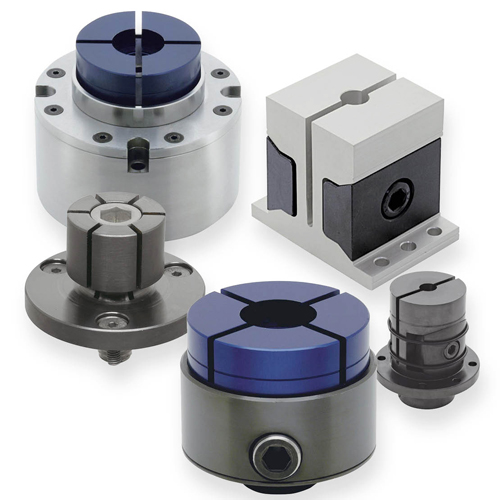

ID/OD Form Holding Clamps

xxx



Designed to clamp onto the outside or inside diameters of the workpiece. Ideal for oddly shaped workpieces.



View Products







Lineup

ID Expansion Clamps

Hold internal diameters from under 3/16” to over 4”. Ideal for variations in inside diameter.

ID Wedge Clamps (CP130)

Diameters expand from 19.5 mm up to 36 mm. Ideal for variations in inside diameter.

Mini ID Holding Clamps (CP131)

Diameters expand from 8 mm up to 22 mm. Tightening hex screw expands the jaws outward and downward.

OD Holding Clamps (CP120)

For 65 and 90 mm diameter jaws. Aluminum jaws can be machined to custom fit the workpiece.

OD/ID Holding Clamps (CP125)

For 65, 90, 120 and 160 diameter jaws. Aluminum jaws can be machined to custom fit the workpiece.

Round OD Holding Clamps (CP123)

Aluminum jaws can be machined to custom fit contoured or odd shaped parts.

Square OD Holding Clamps (CP124)

Aluminum jaws can be machined to custom fit contoured or odd shaped parts.
