Square OD Holding Clamps (CP124)

OD Holding Clamps - Square Wedge Style (CP124)


OD Holding Clamps - Square Wedge Style (CP124)
OD Holding Clamps - Square Wedge Style (CP124)

Part Options


Description

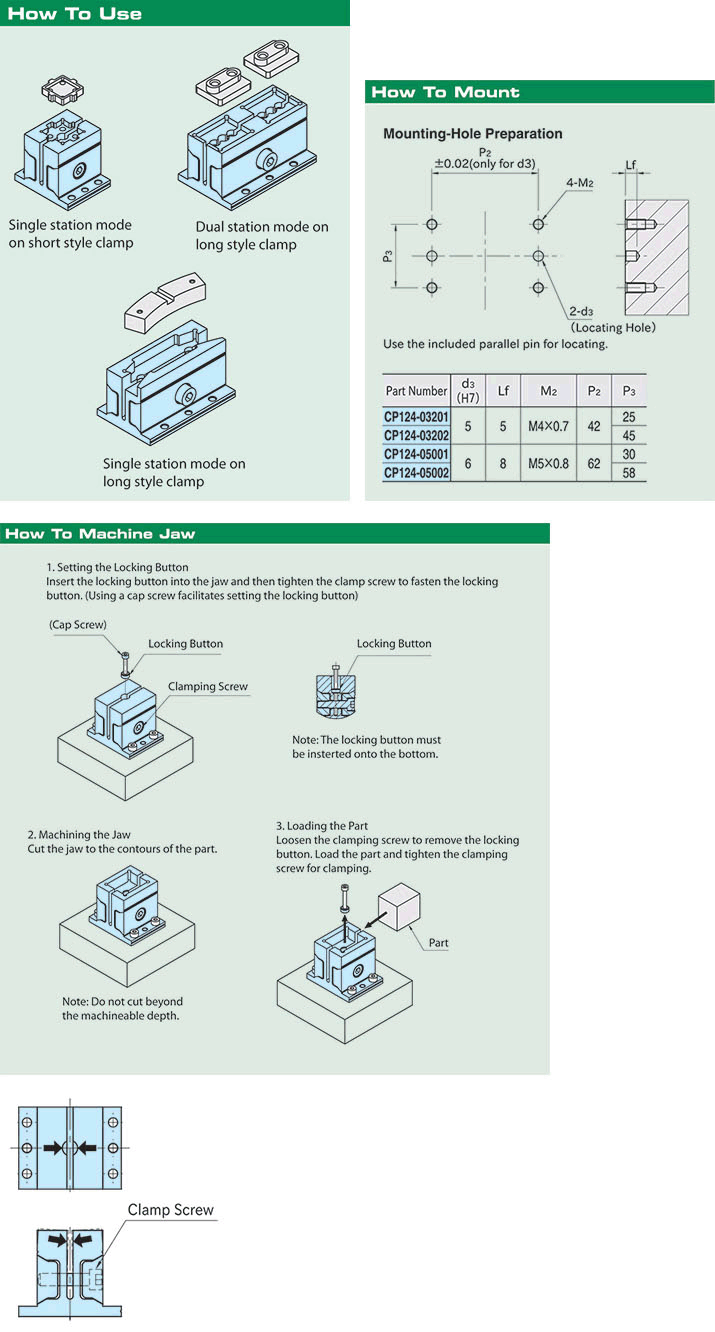

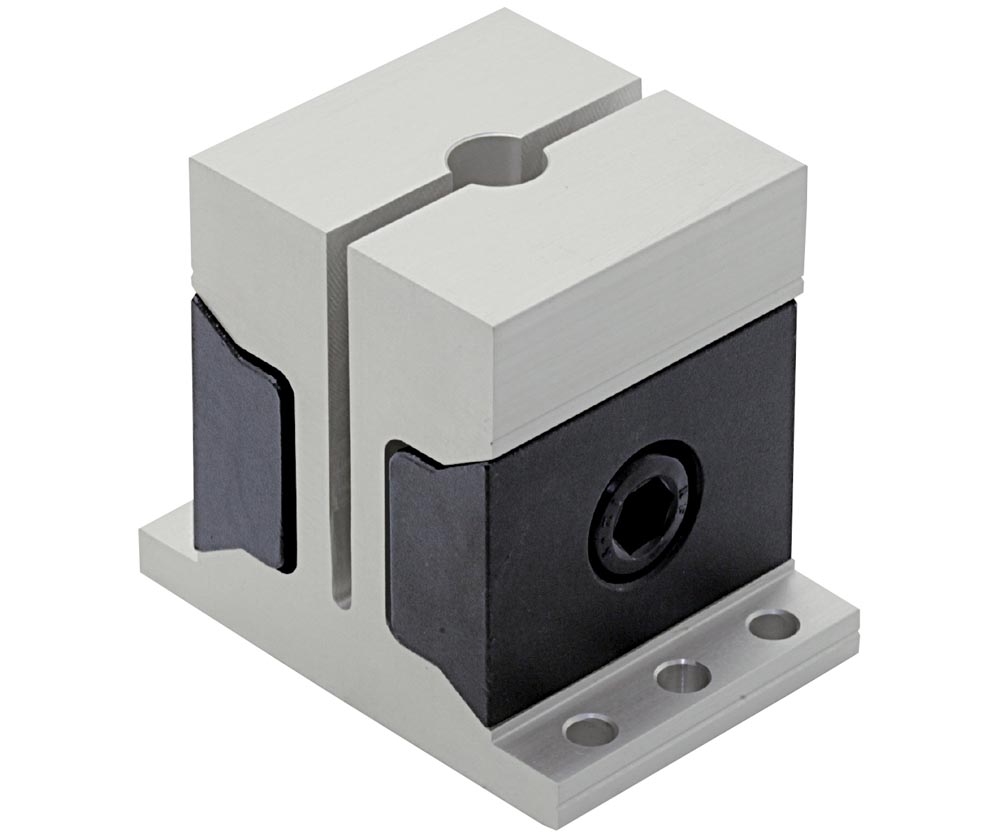

These O.D. clamps allow for holding on the circumference of slender work pieces. The aluminum jaws are designed to be machined to custom fit contoured or odd shaped parts. When the clamp is tightened, both jaws move towards the center clamping the circumference work piece. These clamps allow for part repeatability of +/- 0.08mm. The clamping stroke is .5mm. The body is made from SAE-4140 alloy steel, hardened with black oxide finish. The jaws are made from aluminum with natural anodized finish. Clamps are supplied with locking button and locating pins.
