Home > Fixture Clamps > ID/OD Form Holding Clamps > Form Holding Clamps

CP12x

Form Holding Clamps

OD holding

Product Types

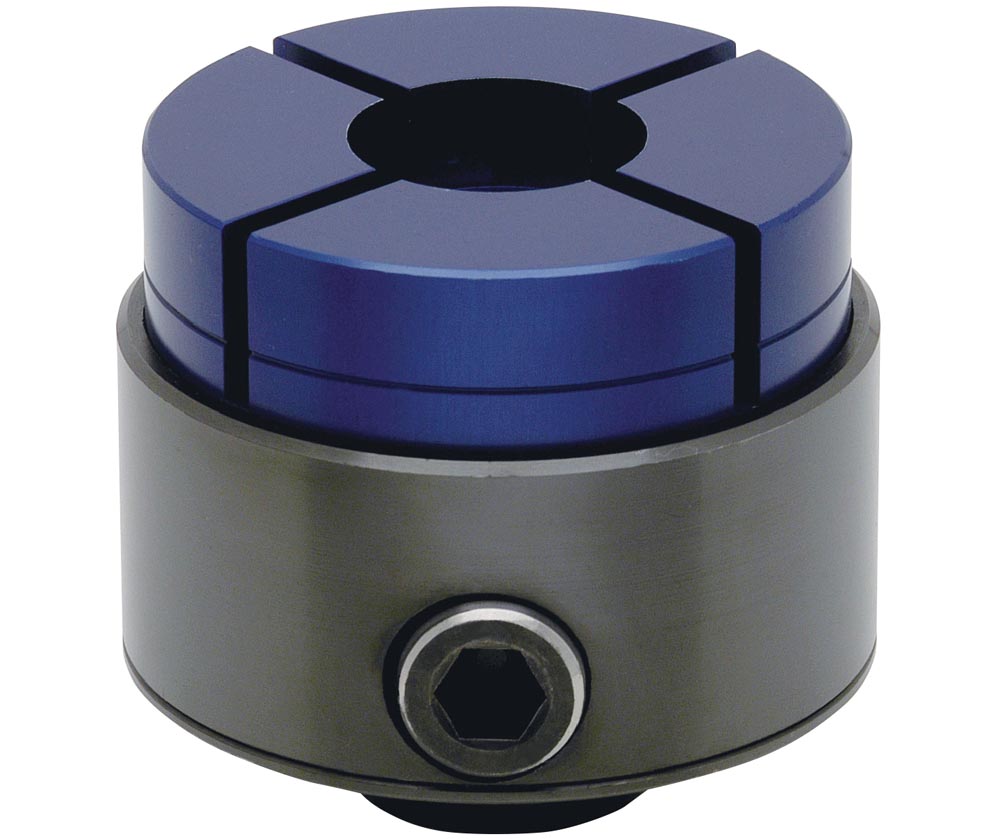

OD Holding Clamps - Standard Clamping Unit (CP120)
OD Holding Clamps - Standard Clamping Unit (CP120)

Part Options


Description

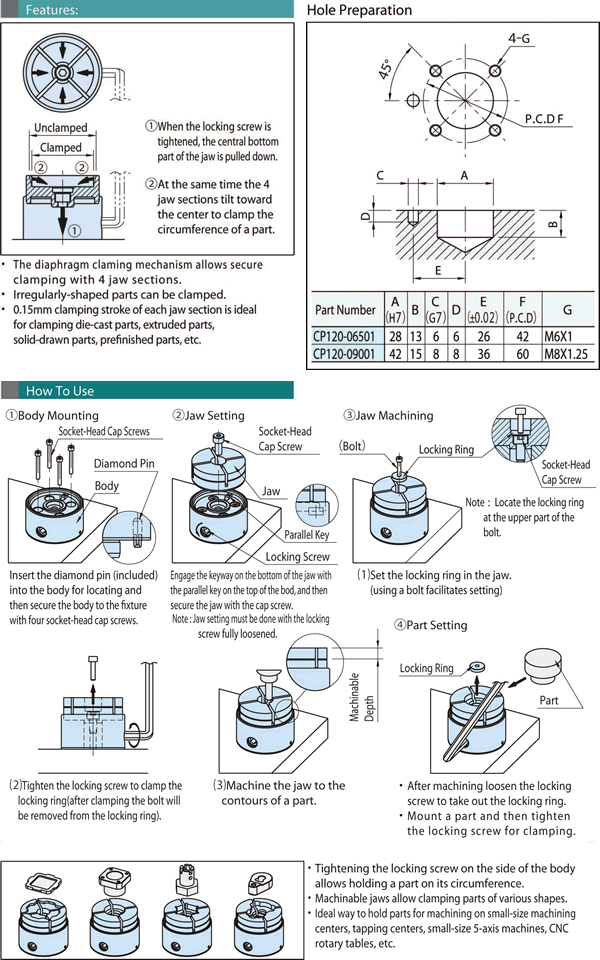

These OD clamps allow for holding on the circumference of the workpiece. The four part aluminum jaws can be machined to custom fit the part. These clamps allow for part repeatability of +/- 0.03 mm and jaw locating repeatability of +/-0.02. The clamping stroke of each jaw is .15 mm. The body is made from SAE-1045 alloy steel. The shaft and locking screw are made from SAE-4135 alloy steel – hardened with a black oxide finish. The part numbers include the clamps, jaws, locking ring, diamond pin and socket head cap screw. Additional sets of jaws can be purchased separately.
