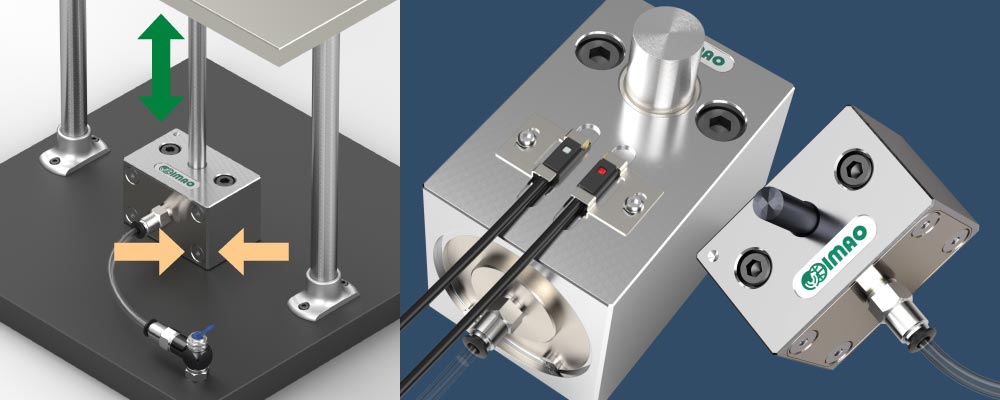

Pneumatic Shaft-Locking Clamps are automated quick locks with air for machine changeover. Perfect for secure clamping of sliding shaft and spindle after position adjustment of parts and units in the machinery.

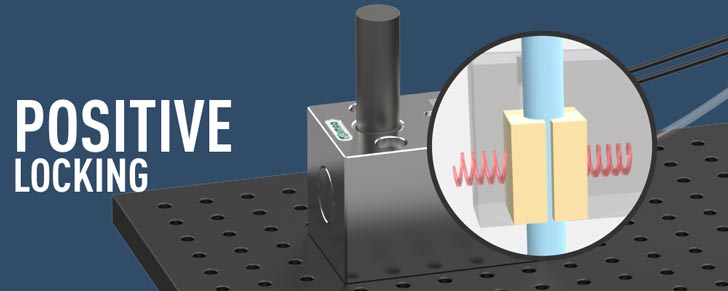

Spring clamping and pneumatic unclamping mechanism prevents the decrease of clamping force by air leakage.

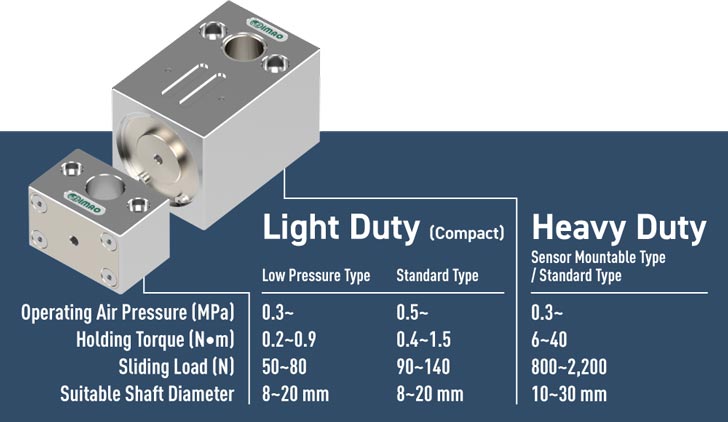

Two types are available according to the required load. Shaft Diameter (mm) : 10, 12, 16, 20

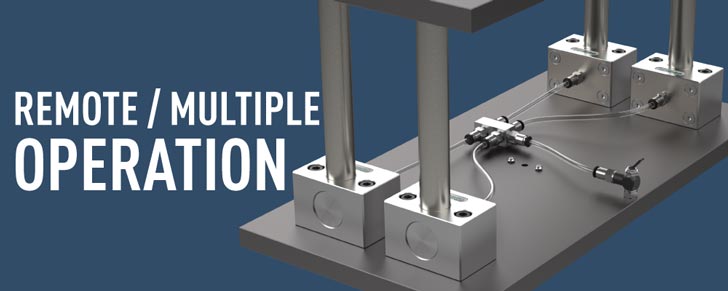

Multiple shafts can be clamped at a time from a distance. Installation is possible at places out of reach.

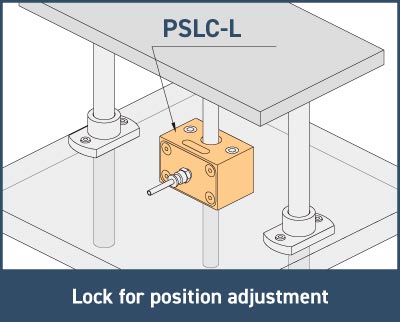

Lock for position adjustment

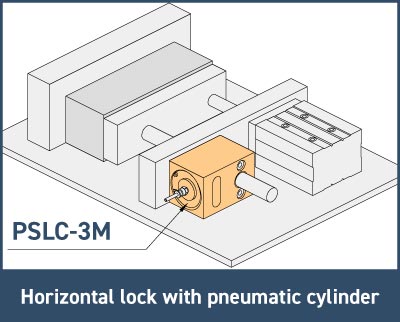

Horizontal lock with pneumatic cylinder

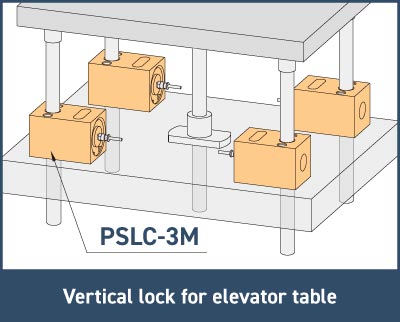

Vertical lock for elevator table

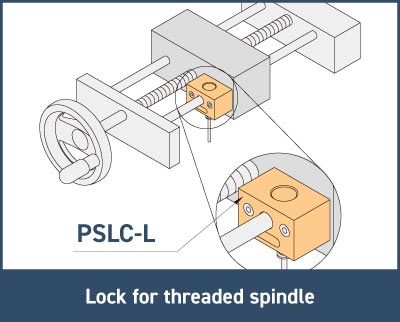

Lock for threaded spindle
