5 Axis Modular Pull Clamping System - Hook Type

Hook-shaped clamping screws enable you to hang workpiece before clamping! Quick and safe workpiece setup in vertical workholding.

cc



Product Video



Application

cc

5-Axis machining with no tool interference.

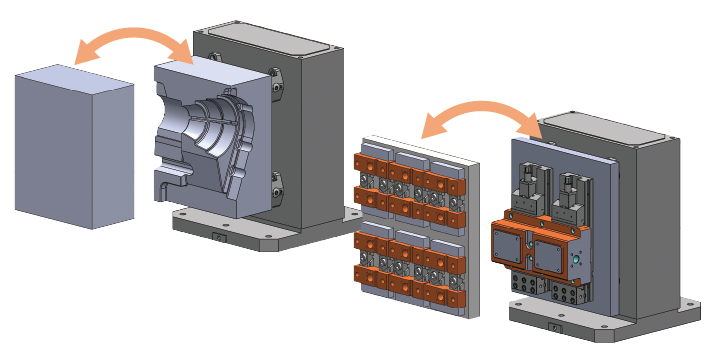

Workpiece & Fixture Changing

Load and unload heavy objects quickly and safely.

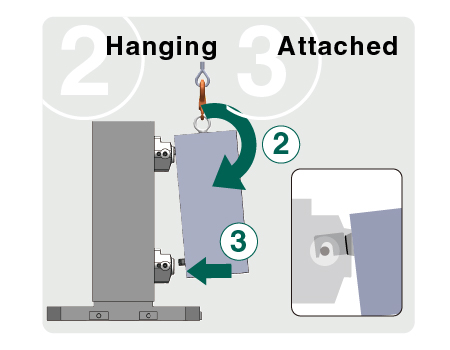

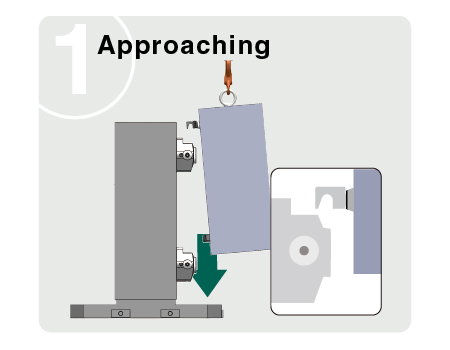

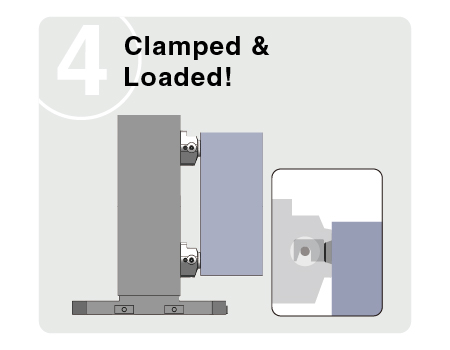

How To Use

cc
cc
cc

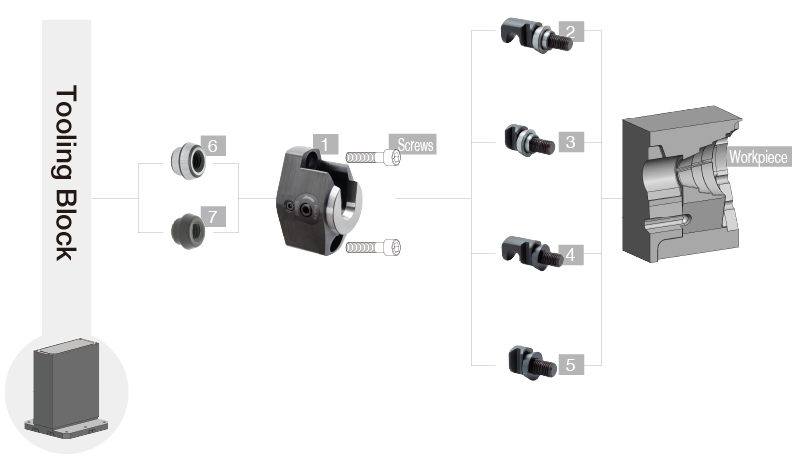

Assembly Chart

cc



Line up

CP157-L

Bushings

Modular pull clamp system, accurate type, tapered, for CP150 and CP160 clamps

CP160

Hook Clamping System

Hook type modules

CP165/166

Hook Clamping System

Hook type clamping screws
