Pneumatic Clamping Locators Quick Changeover System

Eliminate fixture setup time & machine down time!

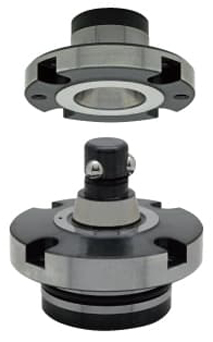

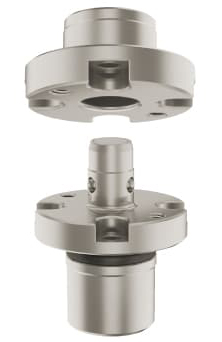

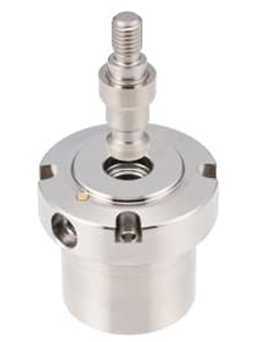

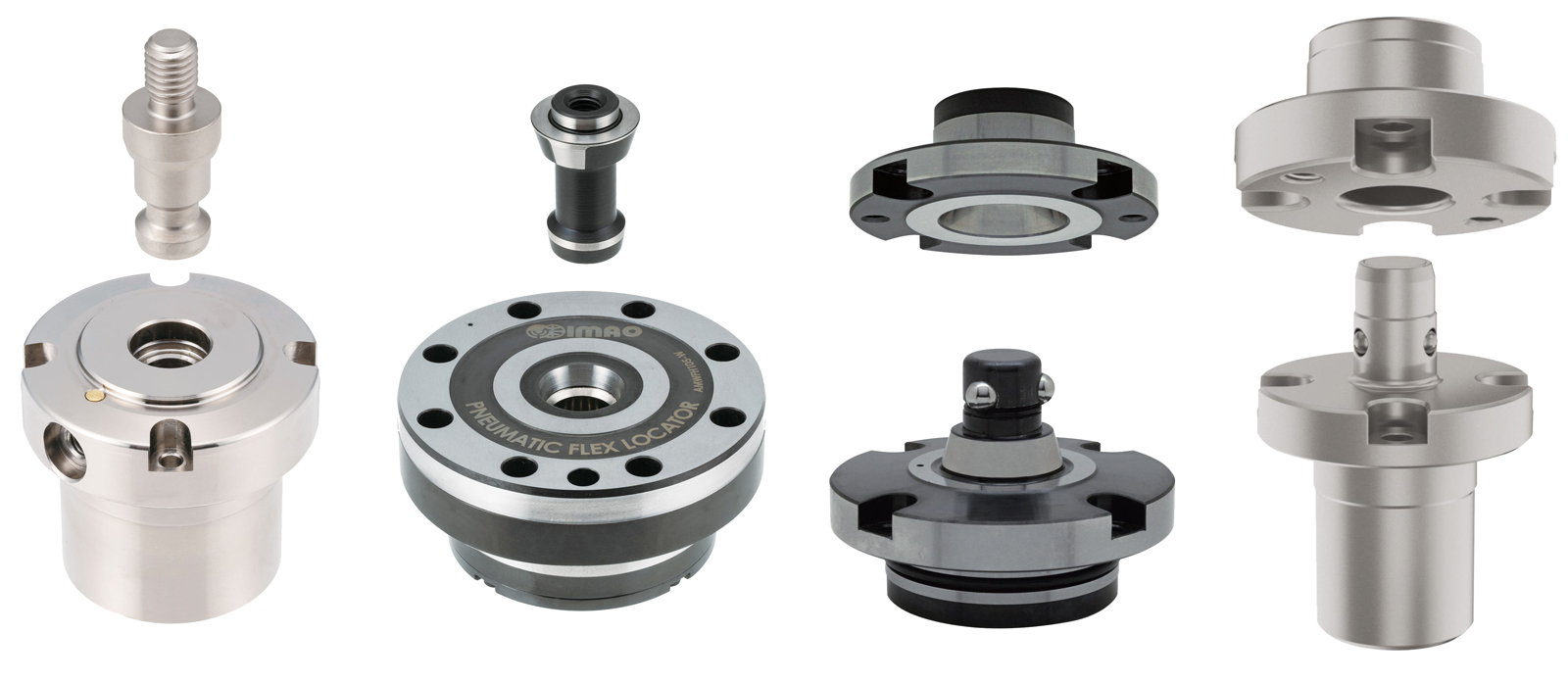

Flex pneumatic locators are a zero point clamping system that provides quick change of fixtures or tools within 0.003 mm accuracy.
Pneumatic clamp and quick locating eliminate setup time for frequent changeover of fixtures, plates and tooling on automation machinery.
Single-acting locators provide mechanical spring clamping and secure locking even without an air supply.
Pneumatic clamping boosts the clamping force, making it suitable for heavy-duty applications.

VIEW THE PNEUMATIC FLEX LOCATORS CATALOG

PRODUCT VIDEO

Pneumatic Locator Clamp Features

Fast Clamping

Positioning and clamping are completed in a single step by simply supplying or releasing air.
Instant changeovers help significantly reduce machine downtime.

Excellent Repeatable Accuracy

High positioning accuracy is achieved by dual contact of the tapered surface and the plate seating surface.
Light Duty models deliver 0.02 mm repeat accuracy, ideal for space-saving setups.

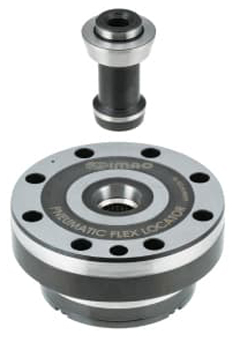

For ultra-precise positioning, Heavy Duty models achieve repeatability of up to 0.003 mm.

Secure Holding

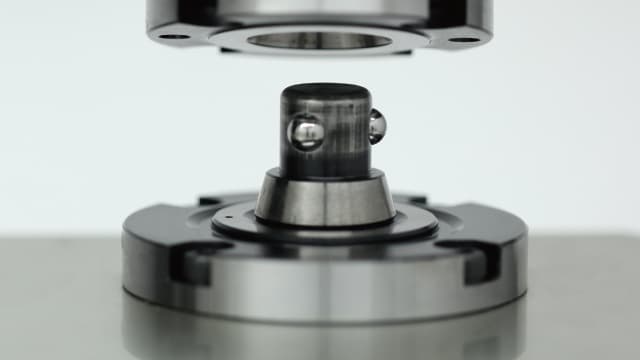

When air is supplied, balls protrude to press against the tapered surface of the receiver, securely clamping the plate.
Single-acting locators maintain clamping with a spring-loaded mechanical positive lock.
Double-acting locators offer even stronger holding force, enhanced by pneumatic pressure.
