AMWF-BU

Receivers

Flex type, diamond, straight or tapered type, for AMWF-W locator

Product Types


Flex Locators - Bushing Pneumatic - Air Flex
Flex Locators - Bushing Pneumatic - Air Flex

Part Options


Description

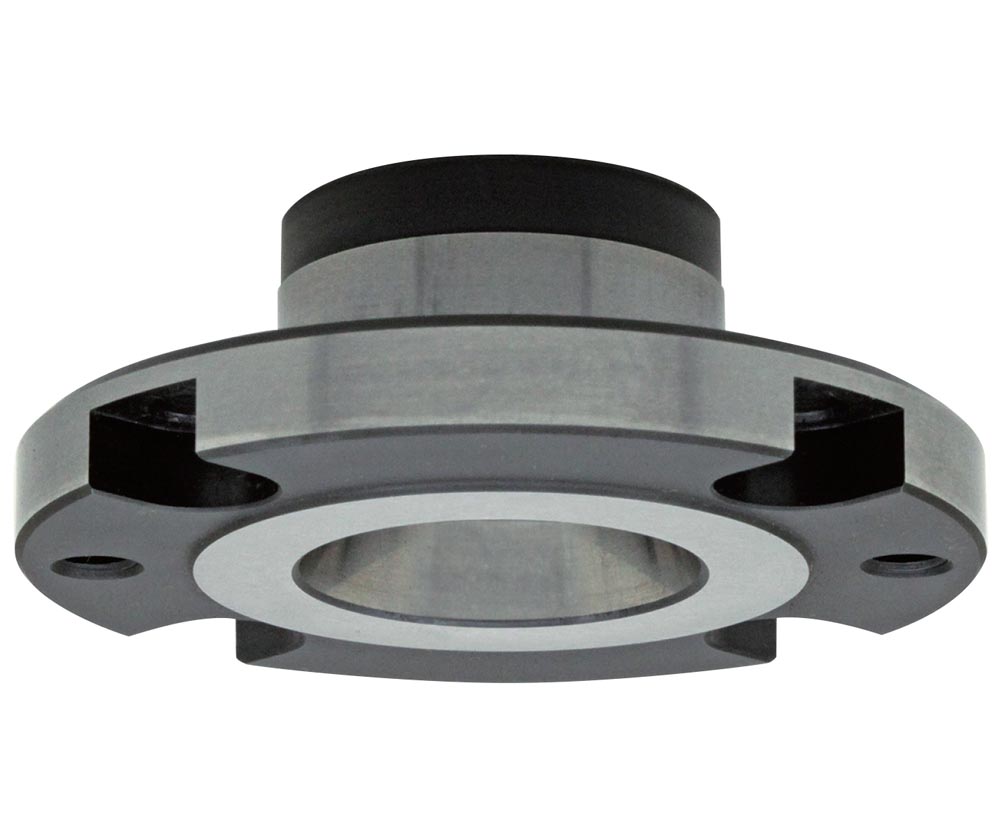

These flex locator receivers are used with AMWF-W series ball locking pneumatic flex locator pins for locating and fastening in a wide range of tooling, fixturing and assembly operations. When air pressure is applied, the balls retract into the pin, allowing the pin to be released from the receptacle. Locating repeatability is ±10 microns. The body is made from heat-treated SAE-4140 steel with a black oxide finish.
