Pneumatic Workholding Clamps, Supports & Locators

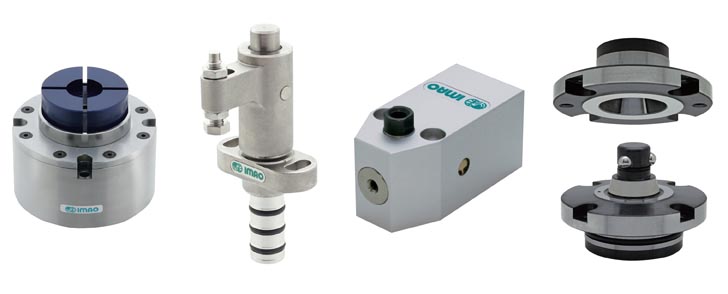

pneumatic clamps supports locators



Clamps, supports and locators with pneumatic operation for remote-control activation and simultaneous control of multiple units. Ideal for automation applications and repetitive operations. Eliminates set up time in frequent changeover of fixtures, plates and toolings on automation machinery.

Types



Pneumatic Assisted Clamps

Pneumatic Clamps



Select clamp styles with pneumatic operation for remote-control activation and simultaneous control of multiple clamps.



View Products

Pneumatic Assisted Work Supports

Pneumatic Work Supports



These compact pneumatic supports allow for remote-control activation and simultaneous control of multiple supports .The spring-loaded piston is compressed under the workpiece. After the workpiece is clamped, air is applied to lock into position.



View Products

Pneumatic Clamping Locators

Pneumatic Locators



Pneumatic quick locating and clamping eliminates set up time in frequent changeover of fixtures, plates and toolings on automation machinery. These Air Flex locators/receivers provide quick change of fixture or tool within 0.003 mm repeat accuracy.



View Products



Pneumatic Clamping Fasteners

Pneumatic Clamping Fasteners



Allow for remote-control activation and simultaneous release of multiple fasteners.



Coming Soon





Line up

Air Flex Light Locators (AMWF)

Port or Direct type pneumatic pin.

Air Flex Light Receivers (AMWF-BU)

Used with AMWF-L-S series pneumatic locator pin.

Air Flex Locators (AMWF-W)

Straight or tapered pneumatic pin.

Air Flex Receivers (AMWF-BU)

Used with AMWF-W series pneumatic locator pin.

Pneumatic OD Holding Clamps (AMCH-W)

For 65 and 90 mm diameter jaws. Aluminum jaws can be machined to custom fit the workpiece.

Pneumatic Pull Clamps (AMWPD)

Pull clamp, clamping pin, clamping screw.

Pneumatic Swing Clamps (AMWSW)

Standard, rod, thread detecting ports or gasket detecting ports.

Pneumatic Work Supports (BJ370)

For remote activation.
