Pneumatic Work Supports

Spring loaded piston

Product Types

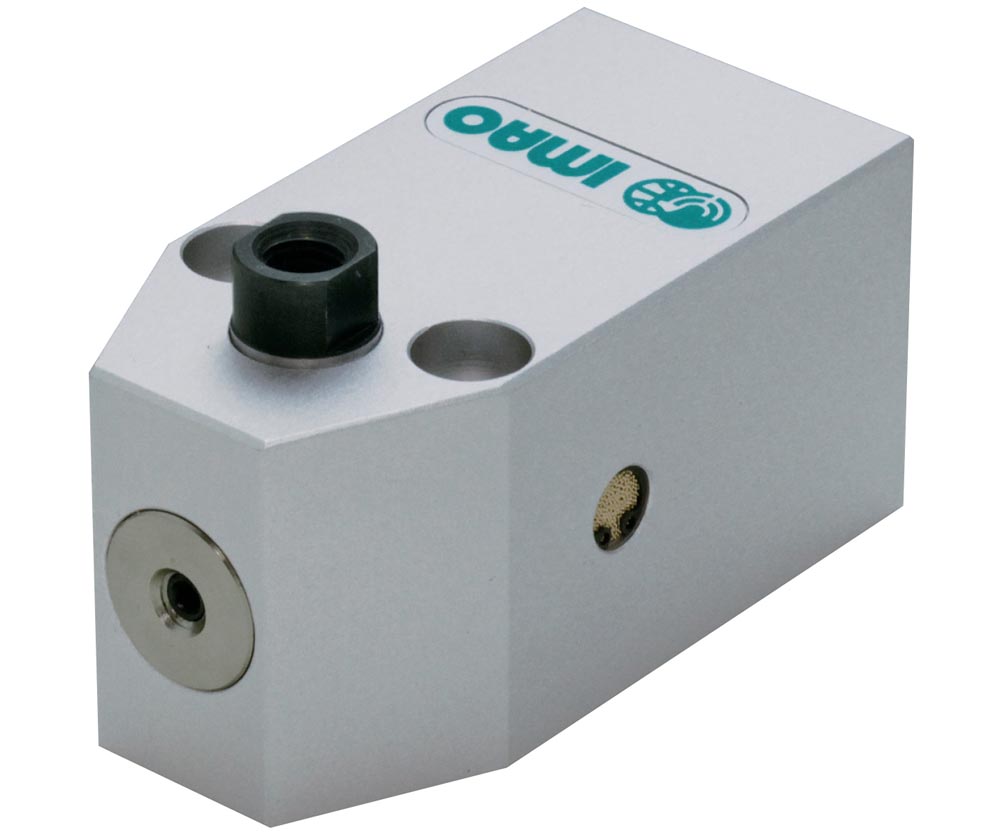

Pneumatic Work Supports - (BJ370) - Fixtureworks
Pneumatic Work Supports - (BJ370) - Fixtureworks

Part Options


The spring-loaded piston is compressed under the workpiece. After the workpiece is clamped, air is applied to lock into position. Release the air to unlock the piston. The piston is tapped to accommodate a work support tip. The body is made from anodized 5052A aluminum. The piston is made from SK95 steel, quenched and tempered, with a black oxide finish. The locking shaft is made from 1045 steel with an electroless nickel plated finish.


Build & Price

Selected Part
