MB-6x/-8x

Side Clamps

Wedge type uniform clamping force

Product Types


Wedge Clamps - Uniforce - Inch
Wedge Clamps - Uniforce - Inch

Part Options


Description

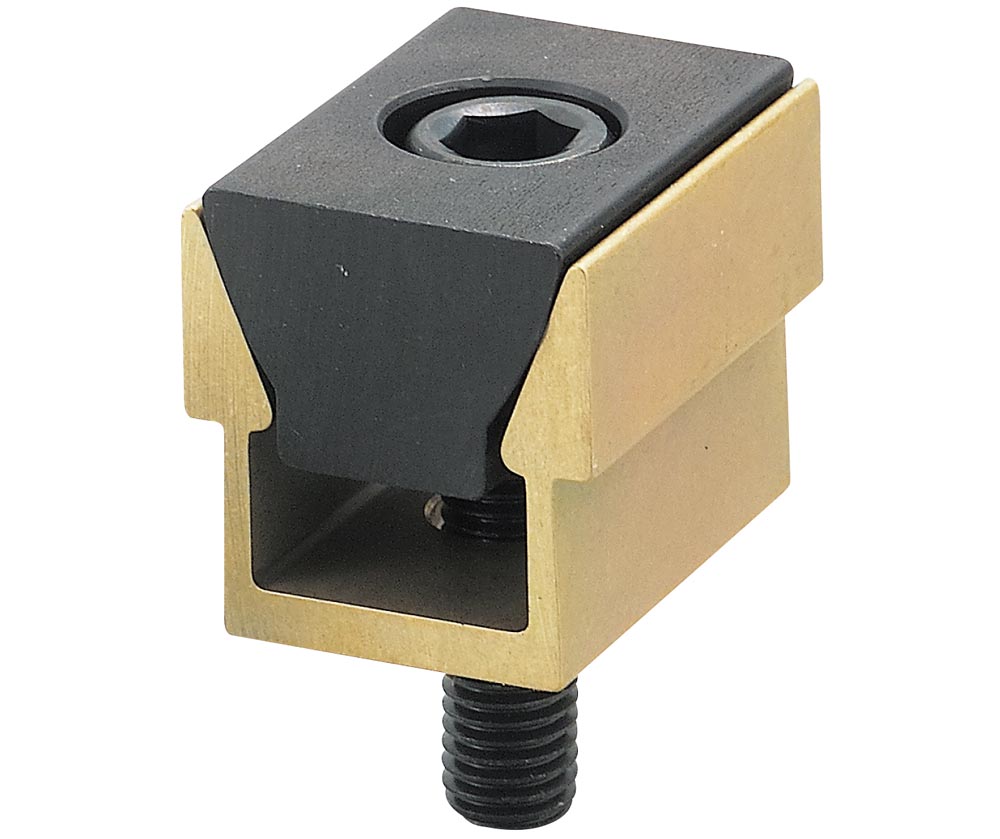

These compact and economical clamps enable you to fixture more parts on the machine table. The steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. These clamps allow you to hold two parts with equilateral clamping action. They work on both flat and round stock.

NOTES FROM PRODUCT TABLE
*W1 is the distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of W1 dimension.
**W2 – A milled slot wider than W2 dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
