BJ162

Side Clamps

Spiral cam edge

Product Types


Cam Clamps - Side - Cam Edge (BJ162) - Fixtureworks
Cam Clamps - Side - Cam Edge (BJ162) - Fixtureworks

Part Options


Description

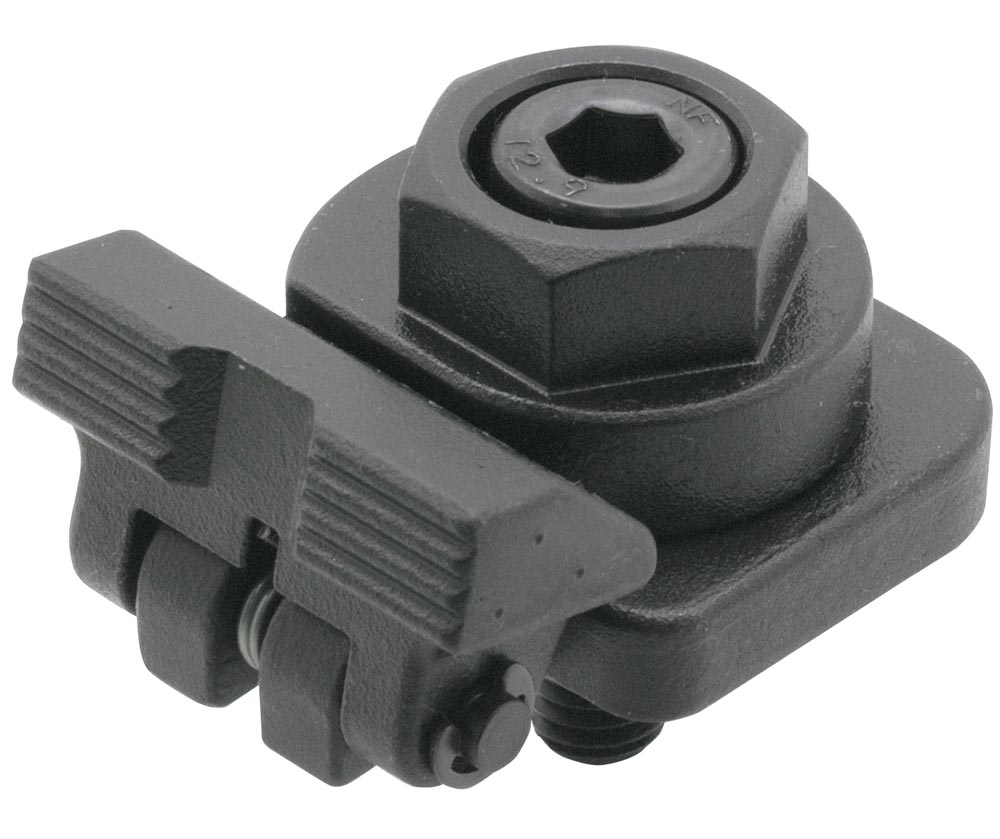

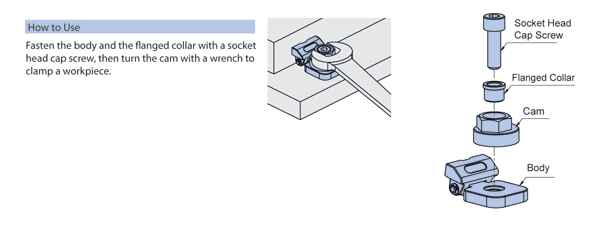

These cam edge clamps offer a low profile design, high holding forces and easy to use operations. The low profile and small size allow for faster set up and more parts per load. Turning the cam nut on the top of the clamp forces the serrated jaw forward and downward against the workpiece. Easily installs with a socket head cap screw. The body and jaw are made from SAE-4140 alloy steel, heat treated with a black oxide finish. The cam is made from SAE-4135 alloy steel with a black oxide finish.
