Home > Fixture Clamps > Side Clamps > Side Clamps

QLSCL

Side Clamps

Cam type, low profile toe, with or w/o handle

Product Types

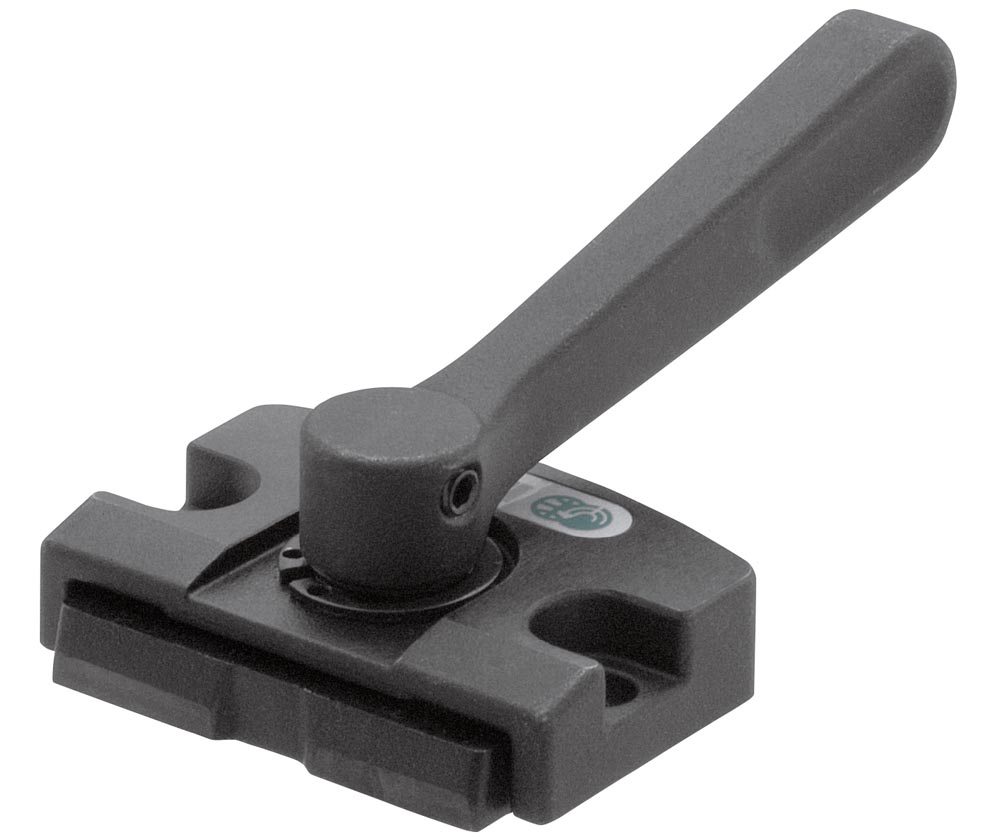

Side Clamps - One-Touch - Low Profile Cam Toe - with Handle (QLSCL)
Side Clamps - One-Touch - Low Profile Cam Toe - with Handle (QLSCL)

Part Options


Description

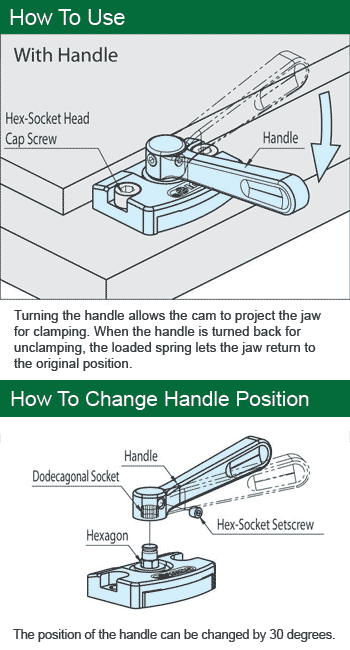

These low profile cam edge clamps feature a cam that forces the jaws forward for fast and secure workholding. Releasing the cam allows the spring loaded jaws to move back for loading and unloading of the workpiece. The handle allows the user to activate the clamp without the use of tools. The handle can be positioned so it does not interfere with the workpiece. Mounts from the top with two mounting holes. The jaws and cam are made from hardened SAE-4140 alloy steel The body and handle are made from SAE-1045 alloy steel. Black oxide finish.
