QLSCL

Side Clamps

Cam type, low profile toe, with or w/o handle

Product Types


Side Clamps - One-Touch - Low Profile Cam Toe - w/o Handle (QLSCL)
Side Clamps - One-Touch - Low Profile Cam Toe - w/o Handle (QLSCL)

Part Options


Description

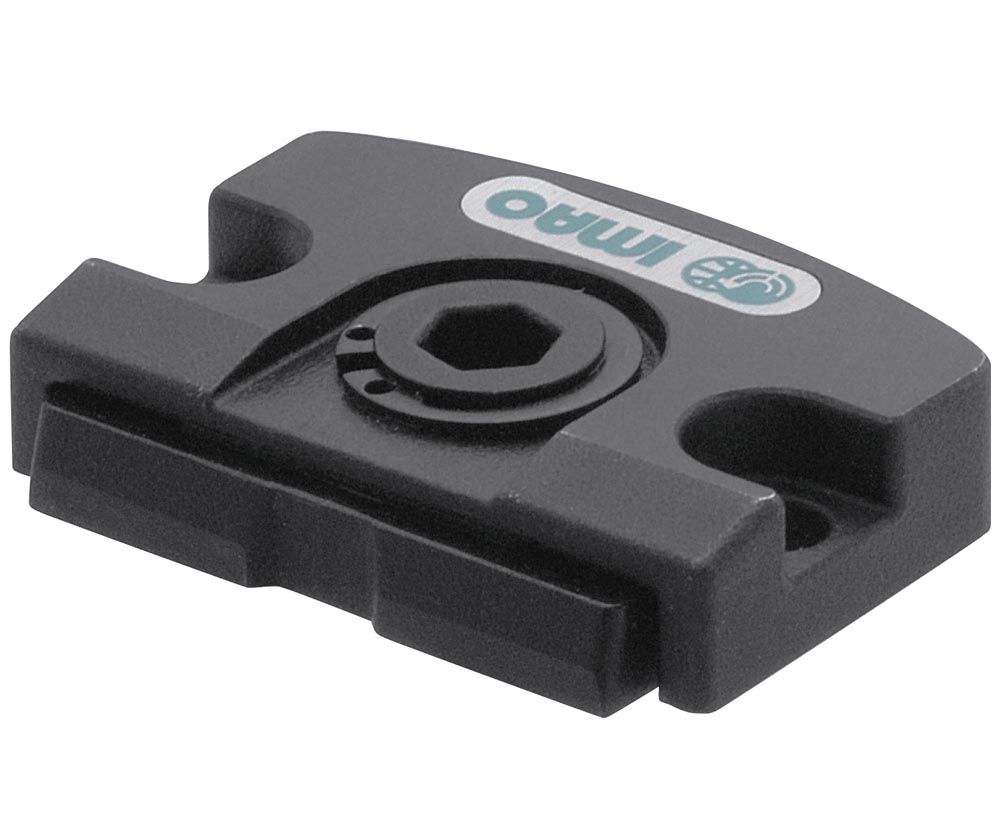

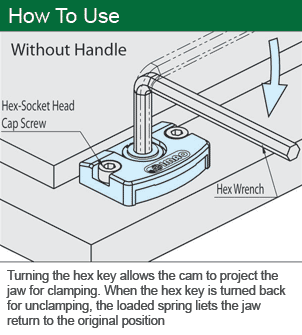

These low profile cam edge clamps feature a cam that forces the jaws forward for fast and secure workholding. Releasing the cam allows the spring loaded jaws to move back for loading and unloading of the workpiece. The cam is activated with a hex wrench and eliminates workpiece interference. Mounts from the top with two mounting holes. The jaws and cam are made from hardened 4140 alloy steel The body is made from 1045 alloy steel. Black oxide finish.
