Docking Hardware

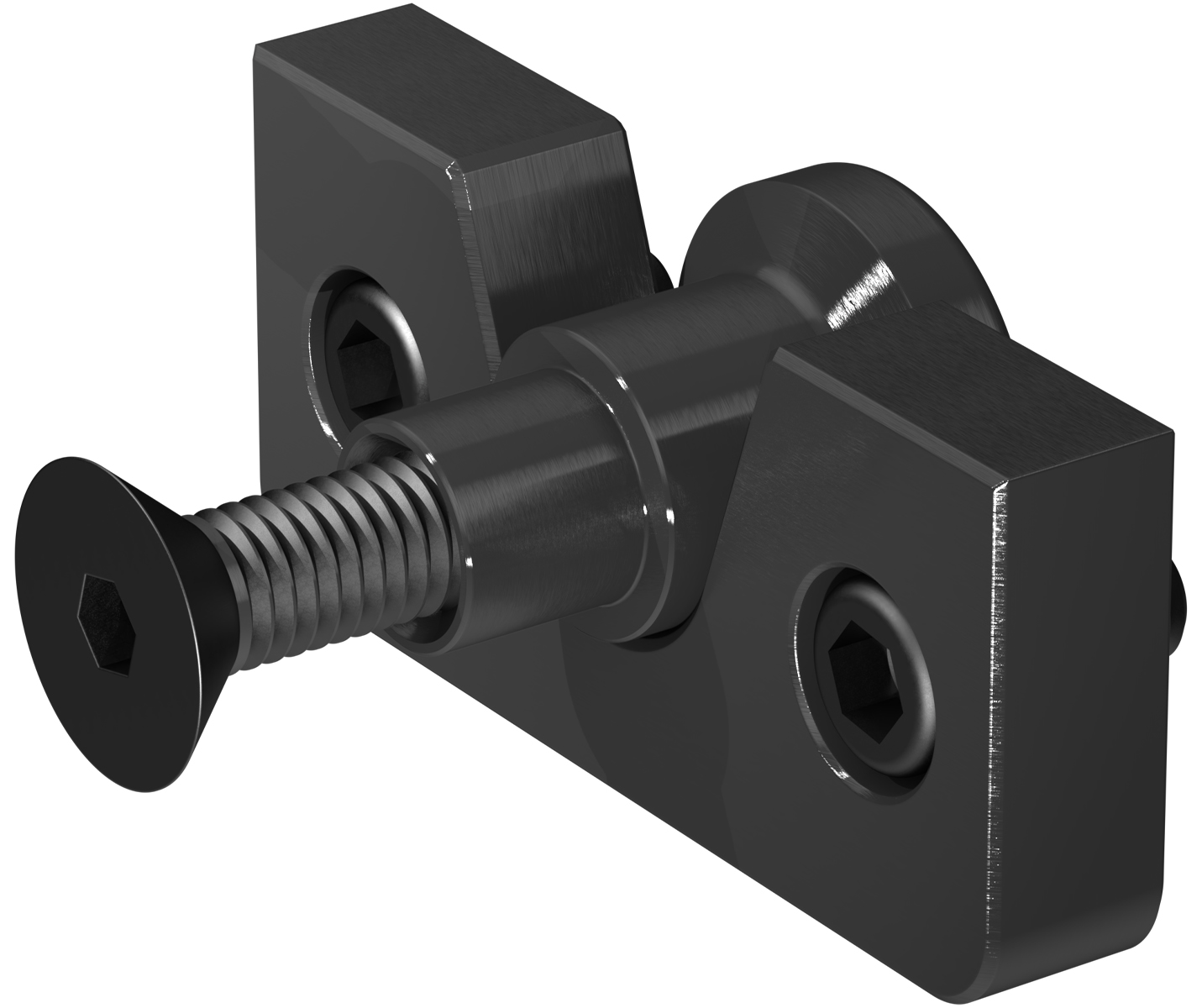

SpeedLoc Locator System, docking plate and positioning stud

Product Types

SpeedLoc Locating System - Docking Hardware (MP-DH)
SpeedLoc Locating System - Docking Hardware (MP-DH)

Part Options


This docking hardware allows a user to position a fixture plate before fastening the surfaces together with high precision SpeedLoc locators. This allows for faster setups and eliminates the need for additional personnel or lifting aids to mount fixture plates. Use this hardware for vertical and horizontal applications. The docking hardware consists of two parts: The docking plate and the positioning stud. Docking hardware can be installed on any conventional tooling column. The docking plate installs into the top of a tooling column sub-plate and mates with the positioning stud that is mounted to the fixture plate. The docking plate includes two SHCS mounting fasteners. Positioning stud includes one FHCS fastener. Made from alloy steel with a black oxide finish.
