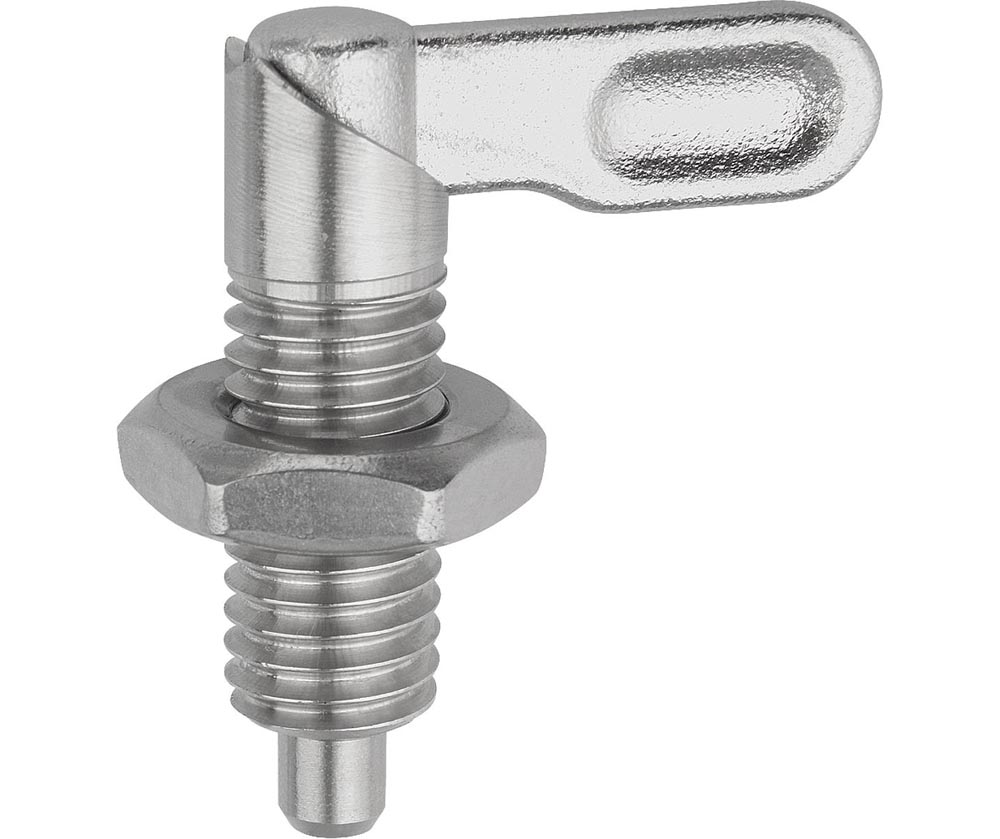

Cam Handle Hand Retractable Plungers (03099)

Indexing Plungers - Cam Handle Retractable Plunger - Stainless Steel w/ Jam Nut - Metric (03099)


Indexing Plungers - Cam Handle Retractable Plunger - Stainless Steel w/ Jam Nut - Metric (03099)
Indexing Plungers - Cam Handle Retractable Plunger - Stainless Steel w/ Jam Nut - Metric (03099)

Part Options


Description


These hand retractable plungers are used for positioning, locating and fastening, without the use of tools, in a wide range of applications. As the handle is turned 180 degrees on the cam of the body, the plunger is retracted into the housing. There is a groove on the top of the cam that locks the plunger into the retracted position. They are made from stainless steel with a natural finish. The plunger pin is ground but not hardened. Furnished with a jam nut for fastening.
