DR-BR

Durasoft Rollers

With clutch bearings

Product Types


Rollers - DuraSoft® - Stud Mount - One Directional Clutch Bearing - 2-1/2 to 4 inch Diameter
Rollers - DuraSoft® - Stud Mount - One Directional Clutch Bearing - 2-1/2 to 4 inch Diameter

Part Options


Description

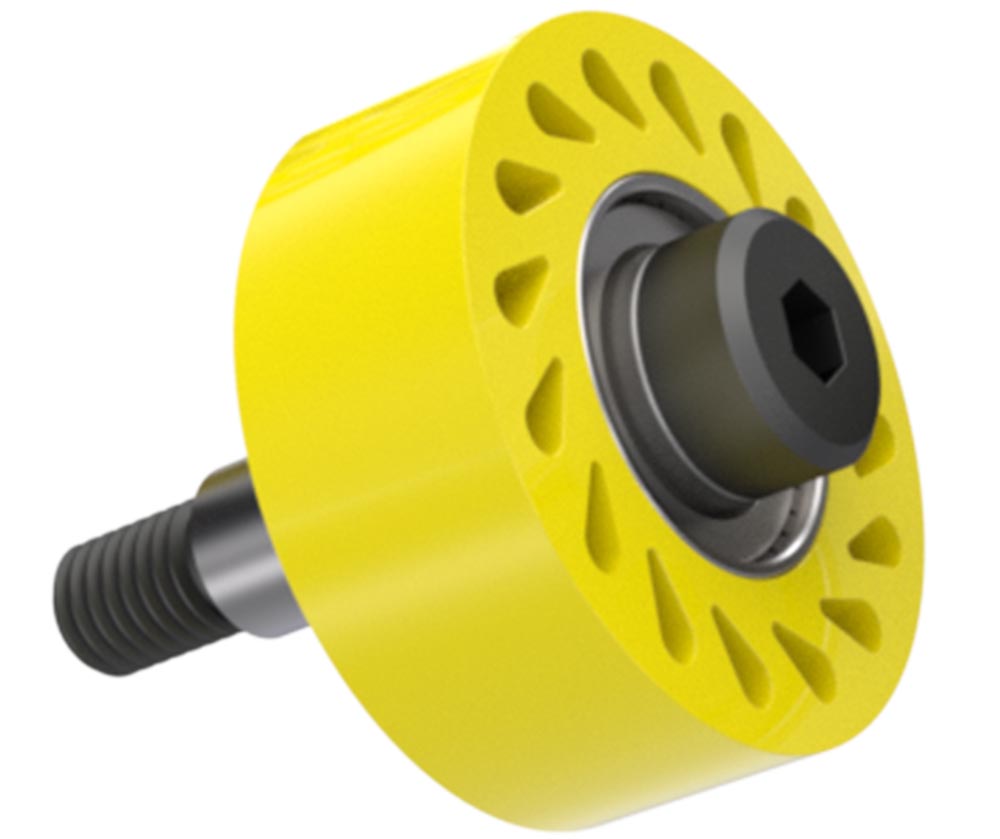

"Teardrop" holes allow the roller to flex for firm yet non-damaging contact. DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert. DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearing pack pressed in place. The clutch bearings allow the roller to only turn in one direction. They come assembled with a threaded stripper bolt and snap ring for fast easy mounting. The "teardrop" holes allow the roller to flex for firm yet non-damaging contact. Rollers are available in neoprene, nitrile and urethane materials with hardness ranging from 20 to 95 durometer. Available in either right or left hand rotation. With the stud pointed upward, right hand rotation turns clockwise and left hand rotation turns counter-clockwise. Supplied with type I bearings.
