Finned Rollers

With clutch bearings

Product Types


Rollers - Finned - Stud Mount - One Directional Clutch Bearing - 2 to 4 inch Diameter
Rollers - Finned - Stud Mount - One Directional Clutch Bearing - 2 to 4 inch Diameter

Part Options


Description

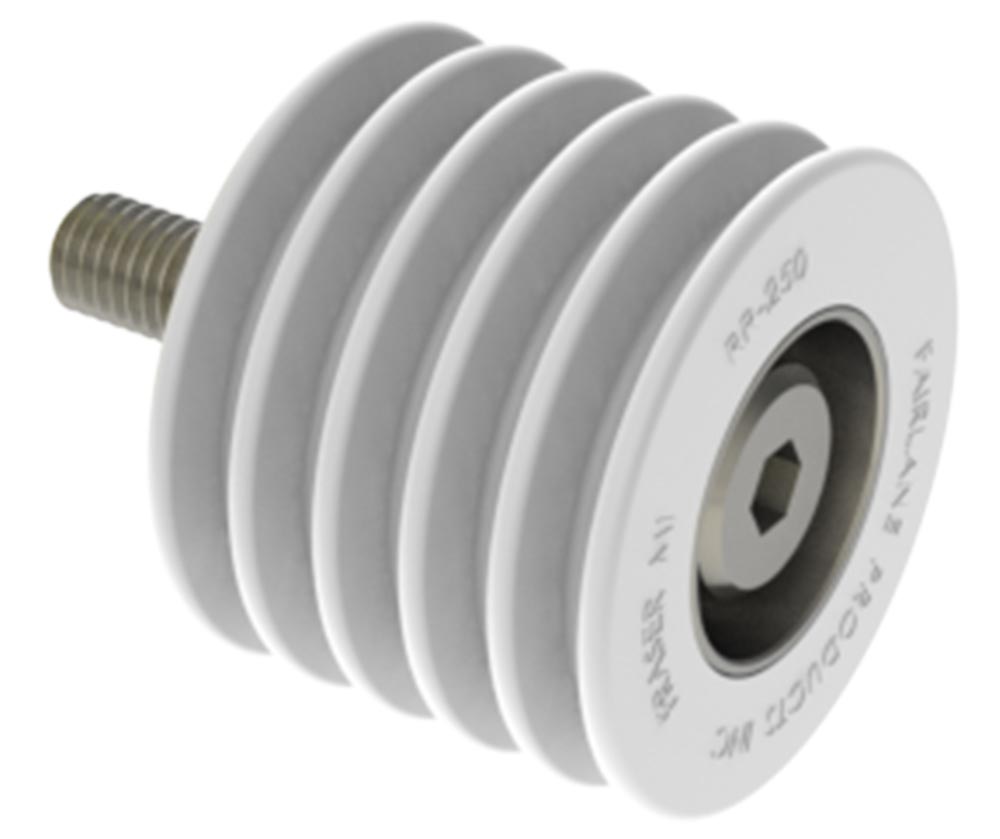

Finned rollers have grooves on the surface and are permanently bonded to a steel insert with the bearing pack pressed in place. The clutch bearings allow the roller to only turn in one direction. They come assembled with a threaded stripper bolt and snap ring for fast easy mounting. The grooves create less surface contact on the workpiece and allow dirt, debris and liquids to pass. Rollers are available in neoprene, nitrile and urethane materials with hardness ranging from 20 to 60 durometer. Available in either right or left hand rotation. With the stud pointed upward, right hand rotation turns clockwise and left hand rotation turns counter-clockwise. Supplied with type I bearings.
