04234

Cam Levers

Plastic handle, quick lock

Product Types


Cam Handles - Standard Cam Lever - Plastic Handle - Quick Lock - Metric
Cam Handles - Standard Cam Lever - Plastic Handle - Quick Lock - Metric

Part Options


Description

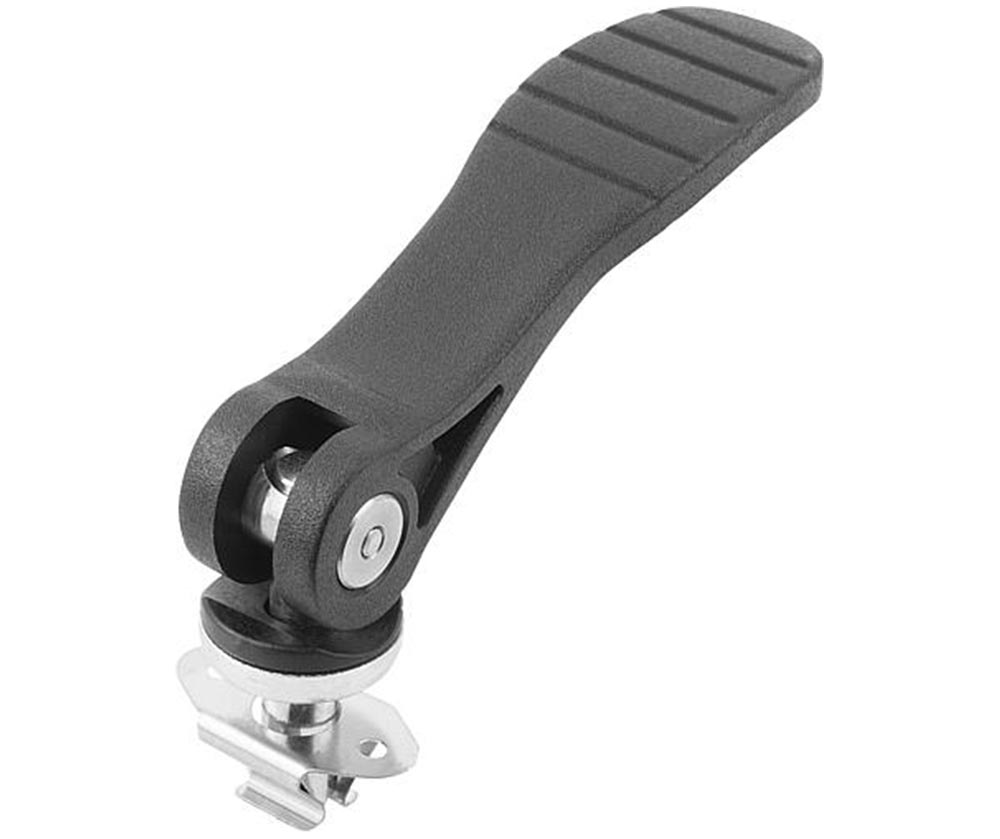

These cam action lever fasteners allow for quick fastening and unfastening without the use of tools in thin material. The spring clip is mounted to the base. The cam lever pin is inserted into the spring clip and turned 1/4 turn to engage the pin into the clip. As the lever is pushed downward, the pin is drawn up for secure fastening against the spring clip. Pulling the lever up releases the pressure to allow for adjustment or removal of the cam lever. The handles and thrust washers are made from glass fiber-reinforced plastic. The pin is made from steel. The spring clip is made from stainless steel. The holding force is 112 lbs.
