GP Series Gripper Pads (GP, GPA)

Gripper Pads - 1-1/4 inch Square - Aluminum Backing


Gripper Pads - 1-1/4 inch Square - Aluminum Backing
Gripper Pads - 1-1/4 inch Square - Aluminum Backing

Part Options


Description

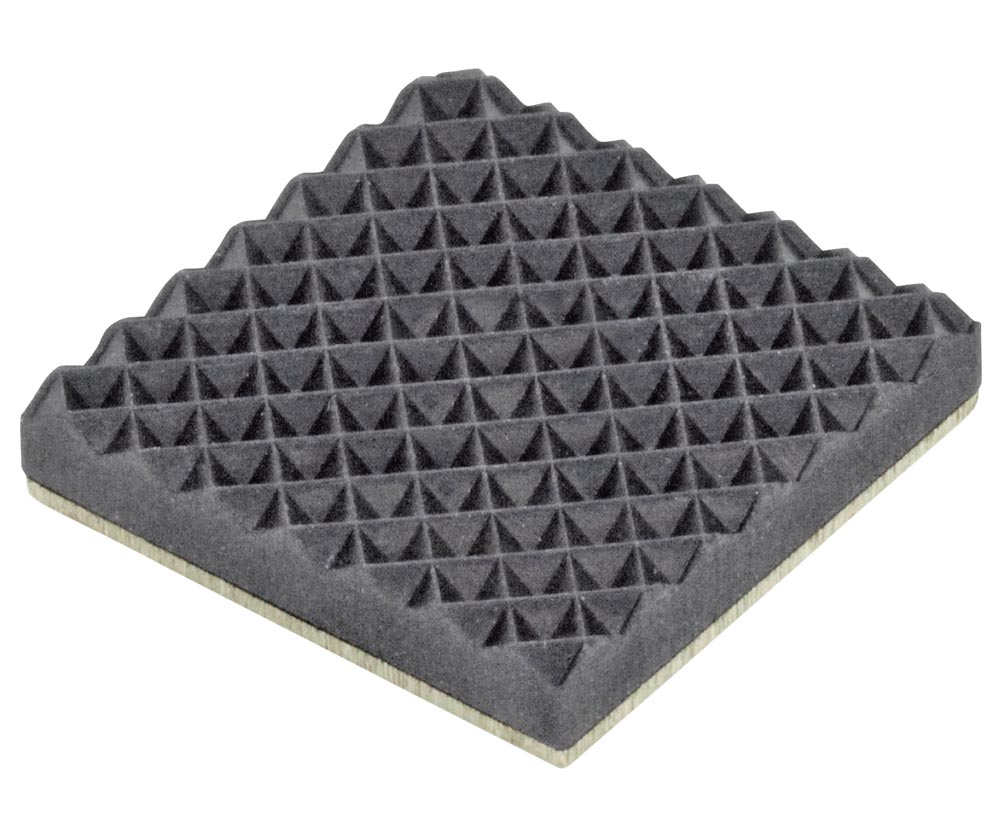

Gripper pads from Fairlane Products® are ideal for industrial grade contact wear points in automation and positioning applications. Black nitrile rubber (60A durometer) is molded to a malleable aluminum backing that can be formed to round or sharp corners. The aluminum backing is 1/16" thick. Select the smooth surface for the greatest contact area to evenly distribute the gripping forces. Select the fine hatch or hatch surface to increase surface pressure and apply the force over a reduced contact area. Offered with a c'bore hole or adhesive backing for mounting. The adhesive backing is .045 inches thick and affixed to the aluminum backing. Highly customizable and easily replaceable for a wide variety of uses. Custom sizes available.
