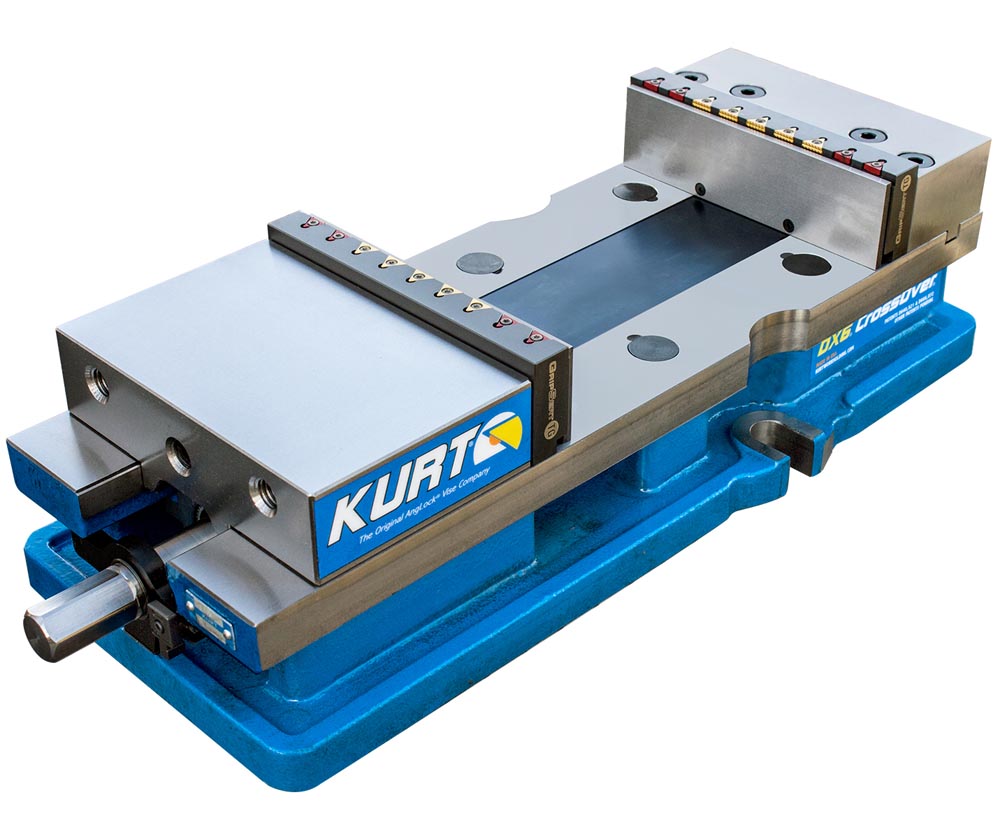

Kurt DX6 CrossOver Vise with TG GripSert jaws for low-profile clamping and pair of snap-in parallels. This vise is equipped with standard Kurt 6" jaws that allow a clamping capacity up to 9". Also includes a pair of easy-to-install TG GripSert jaws and snap-in parallel pair. Each GripSert jaw holds up to nine carbide TG Gripsert inserts (inserts sold separately in packs of 10).
TG GripSert workholding inserts offer many advantages over traditional clamping systems. With a clamping height of .14" (3.5 mm), more of the workpiece is exposed for less waste and the elimination of dovetailing. TG GripSerts' specialized triangular teeth design dampens vibration which allows secure holding strength, even at lower clamping forces and avoids deforming the workpiece. The serrations are designed to penetrate a specific workpiece material including steel, hardened steel/titanium, and aluminum.
The vise set includes complete DX6 vise set with standard Kurt vise jaws, a pair of TG Gripsert jaws, a parallel pair, ten insert screws and a Torx T9 wrench for TG Gripsert installation. Also includes hex handle assembly to operate the moving support jaw. Clamping capacity up to 8.75" with parallels installed.
