CP152

Modular Pull Clamp System

Single module

Product Types

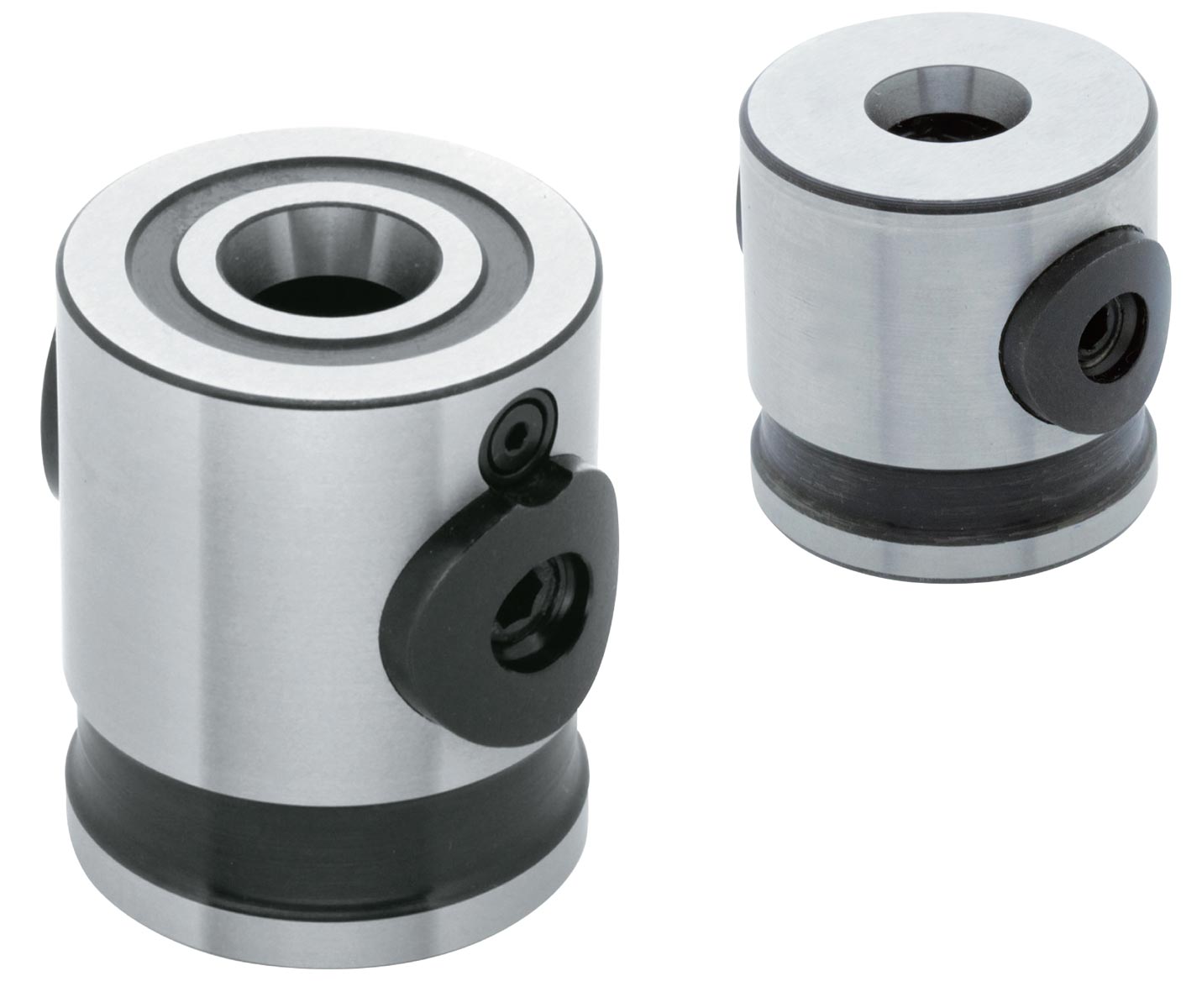

Modular Clamping System - Single Pull Clamp Modules (CP152)
Modular Clamping System - Single Pull Clamp Modules (CP152)

Part Options


Description


These clamp modules are used to locate and clamp a workpiece in conjunction with clamping screws (CP155-L, CP155-D). Activating the clamp pulls the clamping screw downward and secures it in position. Secured to the base plate using a socket head cap screw; use with a locating bushing (CP159) for precise locating. The body is made from 4140 induction hardened steel, precision ground, with a black oxide finish. The clamping nut is made from 4140 steel, quenched and tempered, with a black oxide finish. The locking screw is made from SAE-4135 steel, quenched and tempered, with a black oxide finish.
