CP150

Modular Pull Clamp System

Flanged module

Product Types

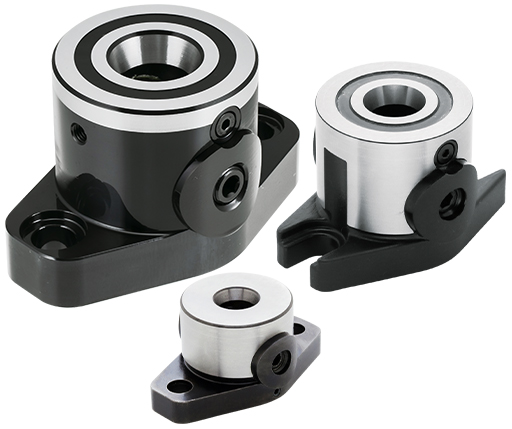

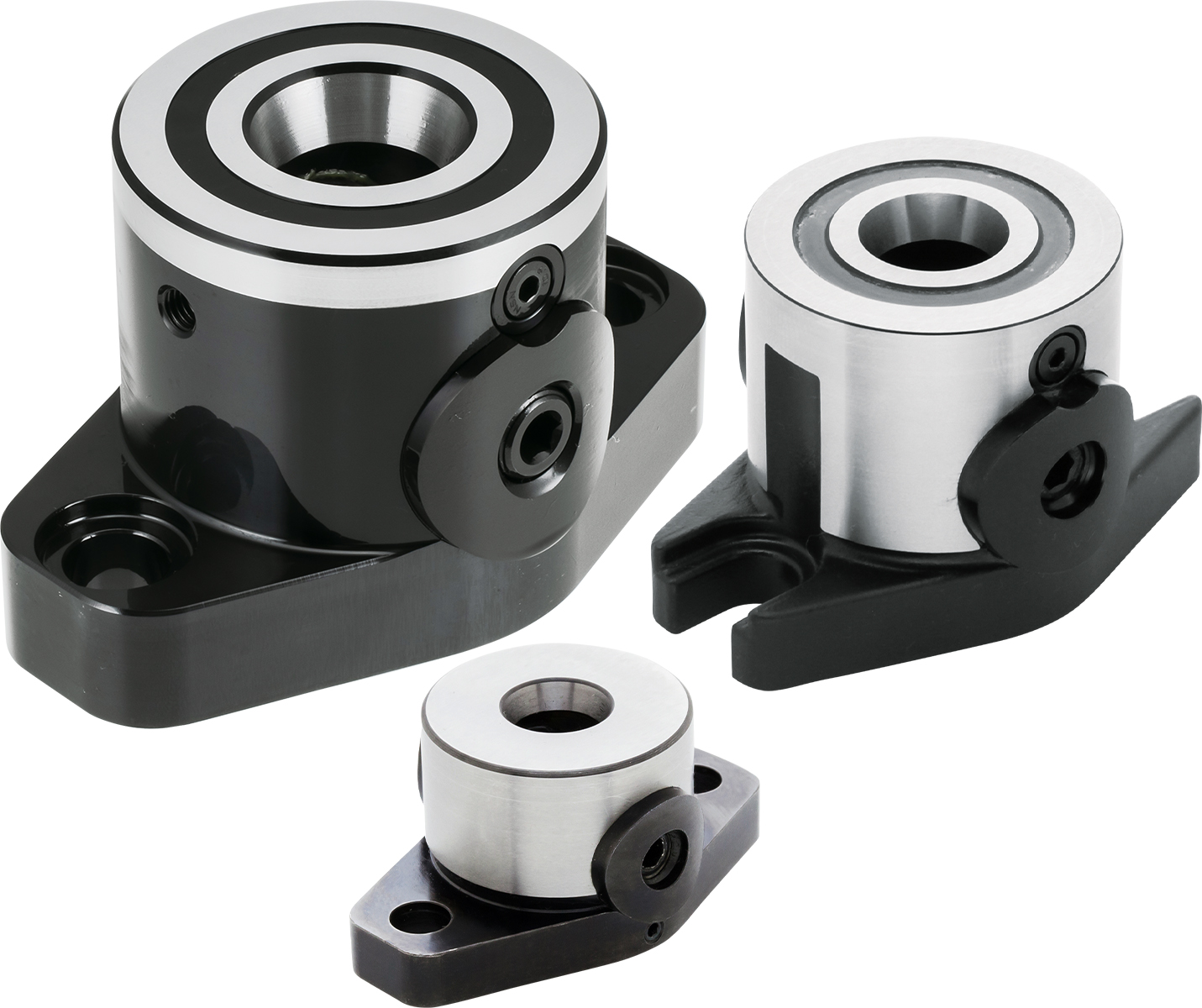

Modular Clamping System - Flanged Pull Clamp Modules (CP150)
Modular Clamping System - Flanged Pull Clamp Modules (CP150)

Part Options


Description


These clamp modules are used to locate and clamp a workpiece in conjunction with clamping screws (CP155-L, CP155-D). Activating the clamp pulls the clamping screw downward and secures it in position. Mount with Tapered Bushing CP157-L for precise locating or with CP157-S for standard locating. Includes two flat washers. The body is made from SAE-4140 steel, precision ground, with a black oxide finish. The clamping nut is made from 4140 steel, quenched and tempered, with a black oxide finish. The locking screw is made from SAE-4135 steel, quenched and tempered, with a black oxide finish.
