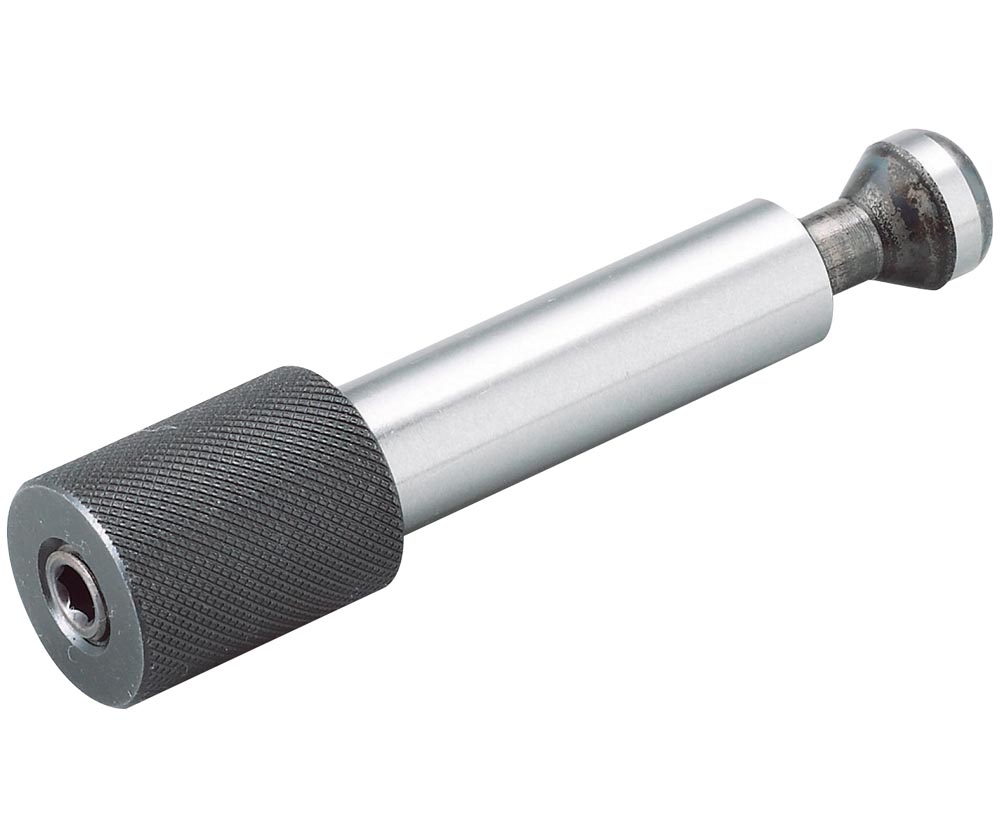

Pull Clamp Clamping Pins - For Heavy Duty One-Touch Pull Clamps (QLPDH)
Pull Clamp Clamping Pins - For Heavy Duty One-Touch Pull Clamps (QLPDH)

Part Options

Description

For use with the Heavy Duty Pull Clamps. The pins are designed to be modified by the user to fit the actual workpiece thickness. The shank is made from SAE-4135 alloy steel, precision ground and the shank end is heat treated. The head is made from SAE-1045, heat treated with a black oxide finish.

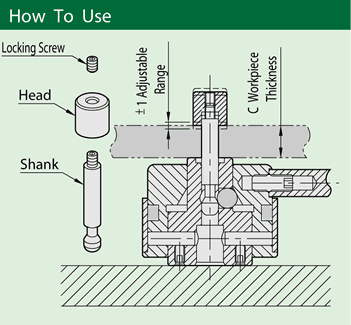

*Note: L dimension is adjustable by +/- 1mm to fit actual workpiece thickness.
