Thrust Screws

Flat cone, round ball, or serrated ball

Product Types

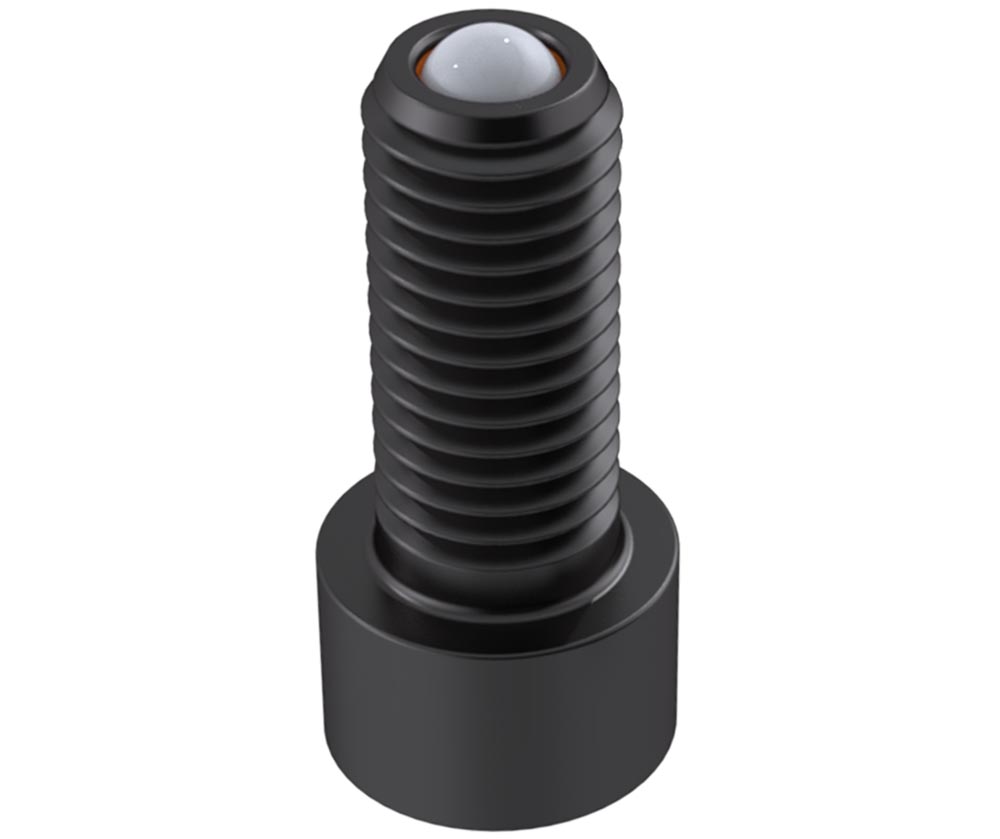

Thrust Screws - Headed Design - Round Delrin Ball - Inch (TSH-DB)
Thrust Screws - Headed Design - Round Delrin Ball - Inch (TSH-DB)

Part Options


These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force on to the contact area. The free floating ball design allows the thrust screw to continue to rotate while the ball remains stationary against the contact surface. Ideal for irregular shaped or contoured applications. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is held in place with a viton O-ring which keeps contaminants out and allows the ball to swivel. The ball is made from non-marring white delrin. Replacement balls and O-rings can be ordered separately.
