CP701

Work Supports

Locator, extendable

Product Types

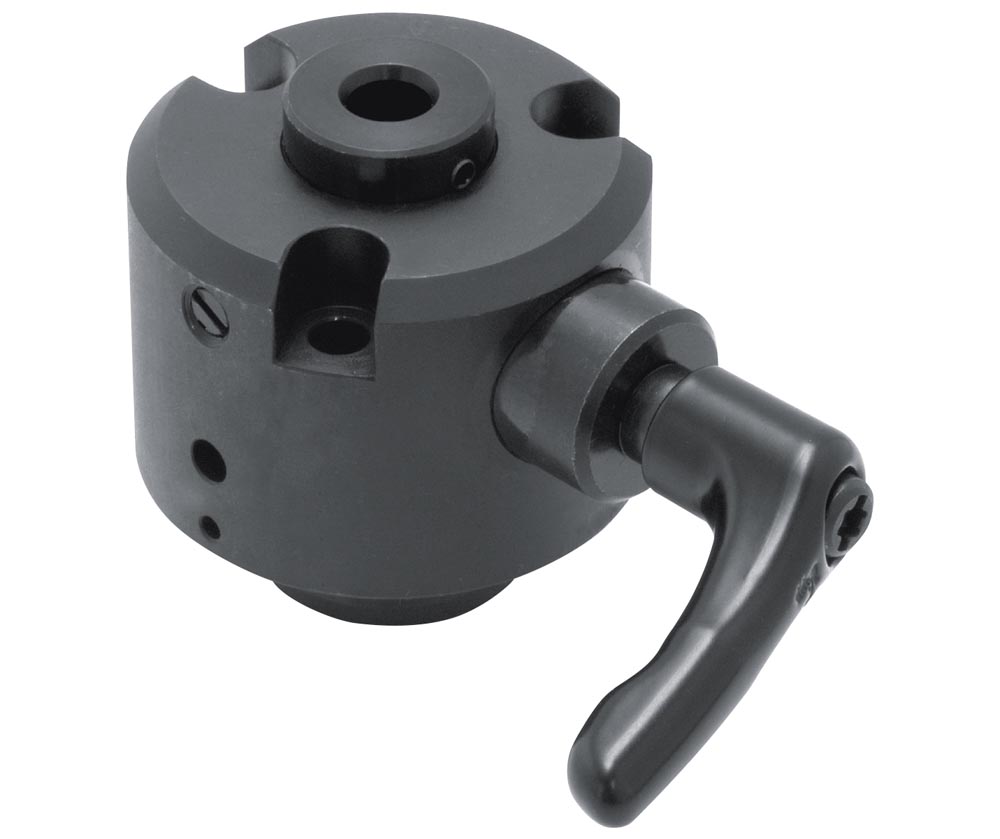

Work Locators - Extendable (CP701)
Work Locators - Extendable (CP701)

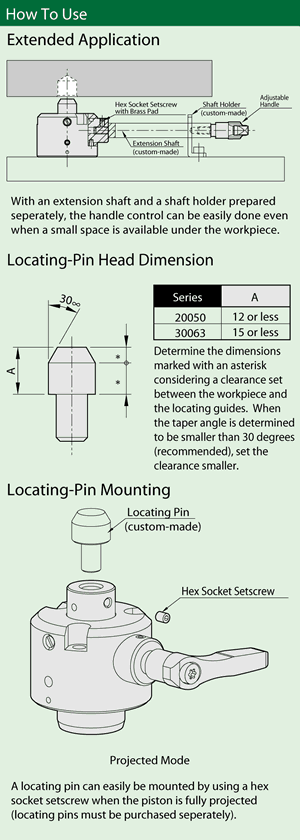

Part Options


Description


The piston stays locked when it is fully projected or retracted until the handle is turned. The piston stays locked when it is fully projected or retracted until the handle is turned. Different locating pins can be mounted depending on the workpieces locating holes. The adjustable handle allows for use in confined spaces. The body and piston are made from SAE-1045 alloy steel, heat treated with a black oxide finish. The adjustable handle is zinc die cast.

The CP701-20050 has maximum load of 38 lbs to operate the handle. The maximum workpiece load allowing the locating pin to center the workpiece is 551 lbs

The CP701-30063 has maximum load of 47 lbs to operate the handle. The maximum workpiece load allowing the locating pin to center the workpiece is 661 lbs.
