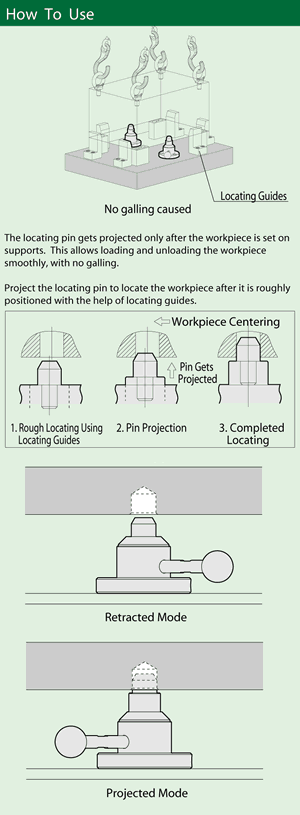

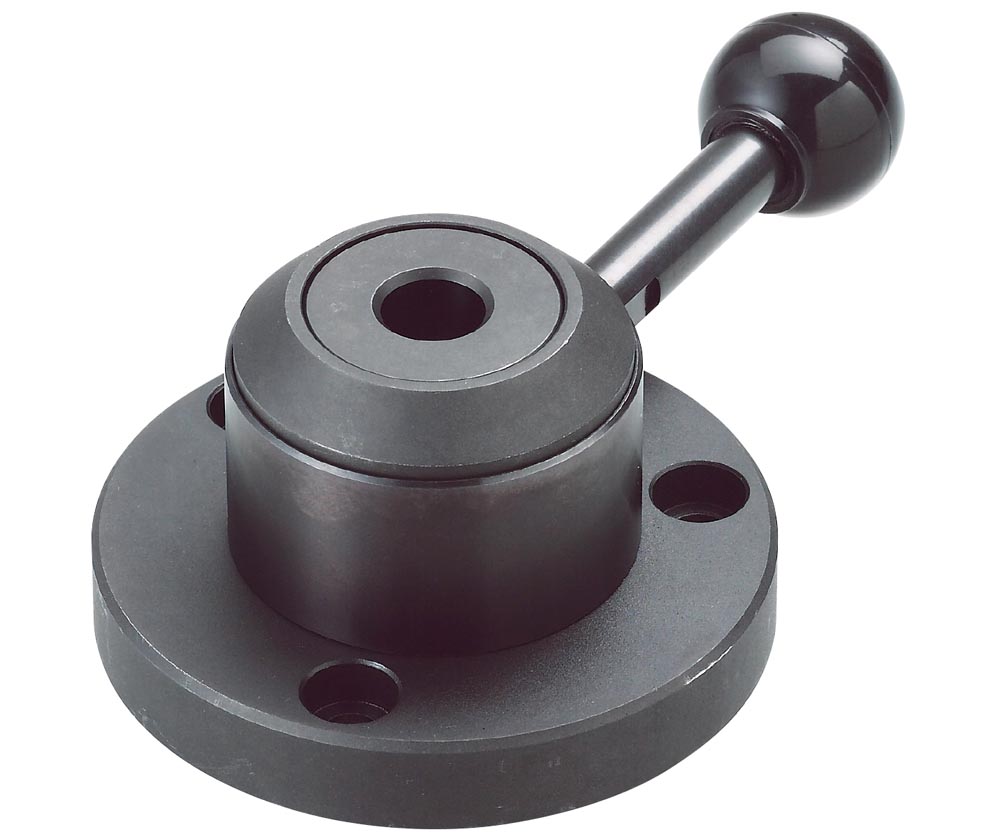

Rotating the handle projects the locating pin after the workpiece is set on supports. This allows loading and unloading of the workpiece smoothly without projecting locating pins. The body is made from SAE-1045 alloy steel and the piston is made from SAE-4140 alloy steel. Parts are heat treated with a black oxide finish. Knob is black plastic.
