ATCL

Torque Limiting Handles

Adjustable torque, steel

Product Types


Adjustable Torque Handles - Female Thread - Metric
Adjustable Torque Handles - Female Thread - Metric

Part Options


Description

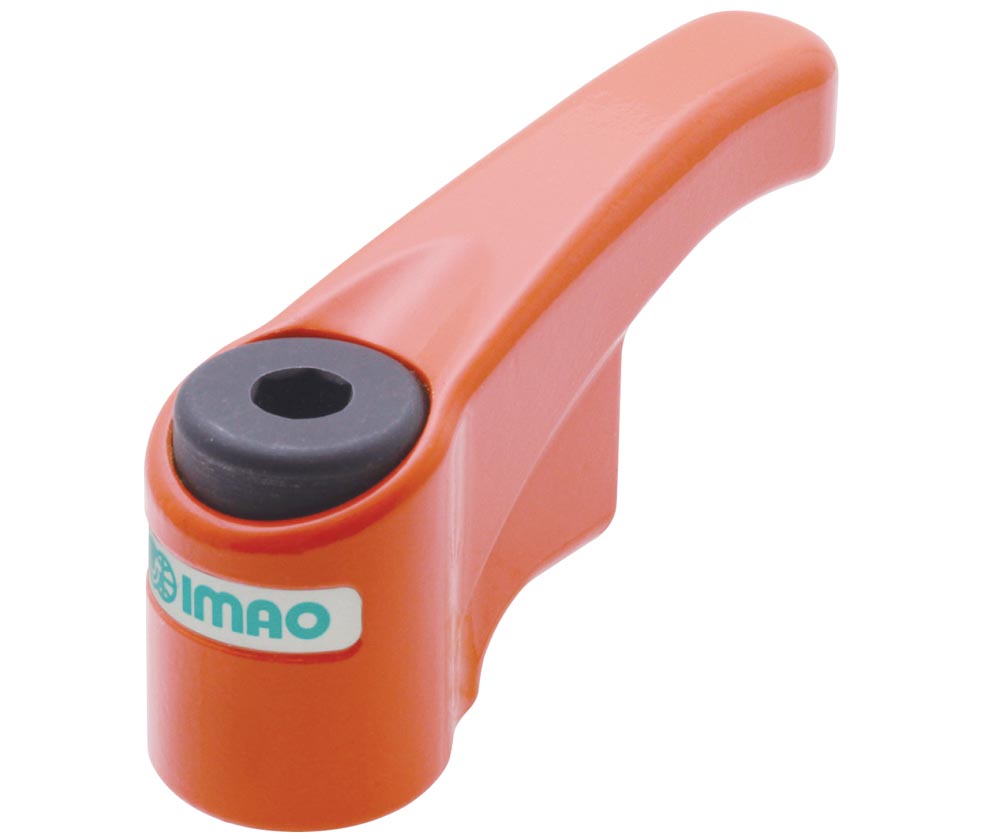

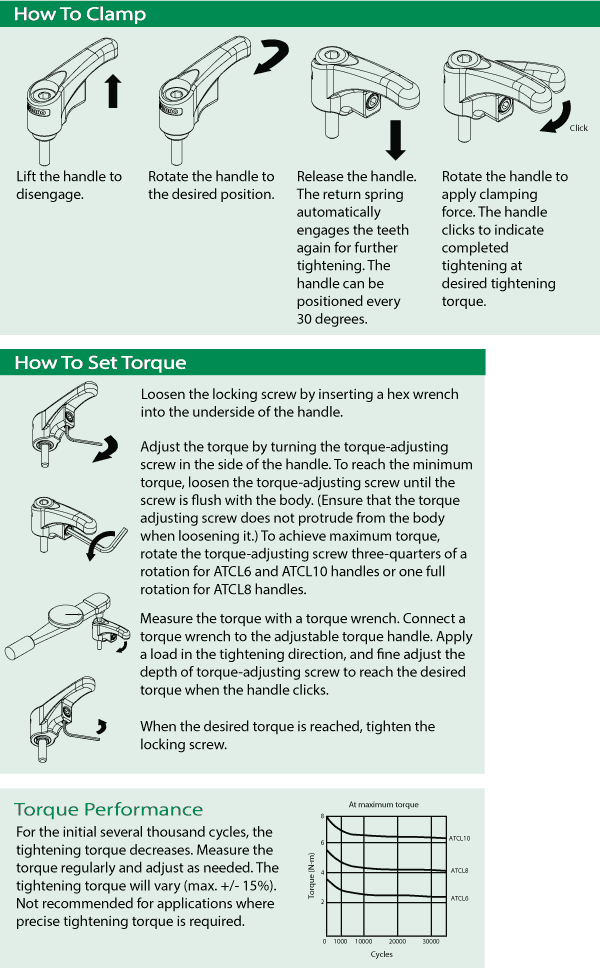

These adjustable torque handles allow the user to set a specified torque to prevent over-tightening by the operator. They are ideal for applications where a consistent force is required or where over-tightening can damage or distort a workpiece. The handle clicks when the specified torque is reached. The locking mechanism has 12 teeth. The amount of torque is set by adjusting the screw in the handle. A bolt can be passed through the top to secure the handle. The handle is made from SAE-4140 quenched and tempered steel with a black or orange finish. The ratchet is made from SCM415 carburized steel with a black oxide finish.
