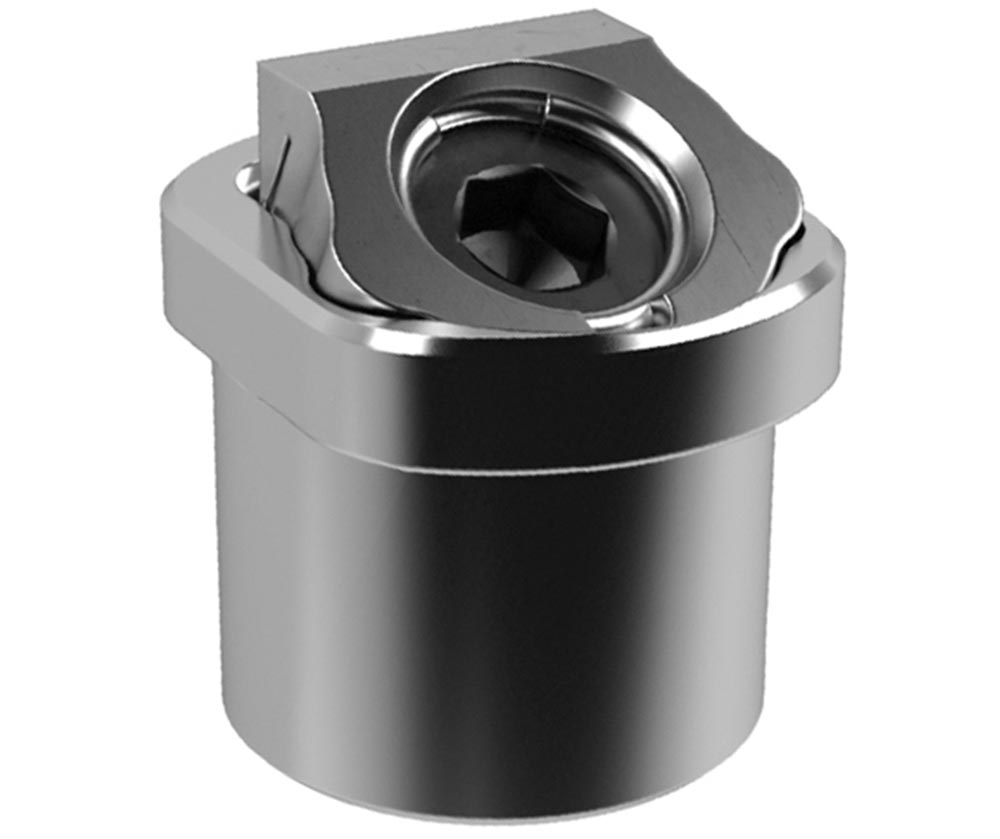

These clamps feature jaws that advance on an angle for positive down-force. Most of the clamp is below the surface of the fixture to maintain a low profile. Made from 17-4 PH stainless steel. The screw is made from alloy steel. Stainless steel screws and retaining rings are also available for EDM applications.
