Use with Flex CP720 locators

Product Types

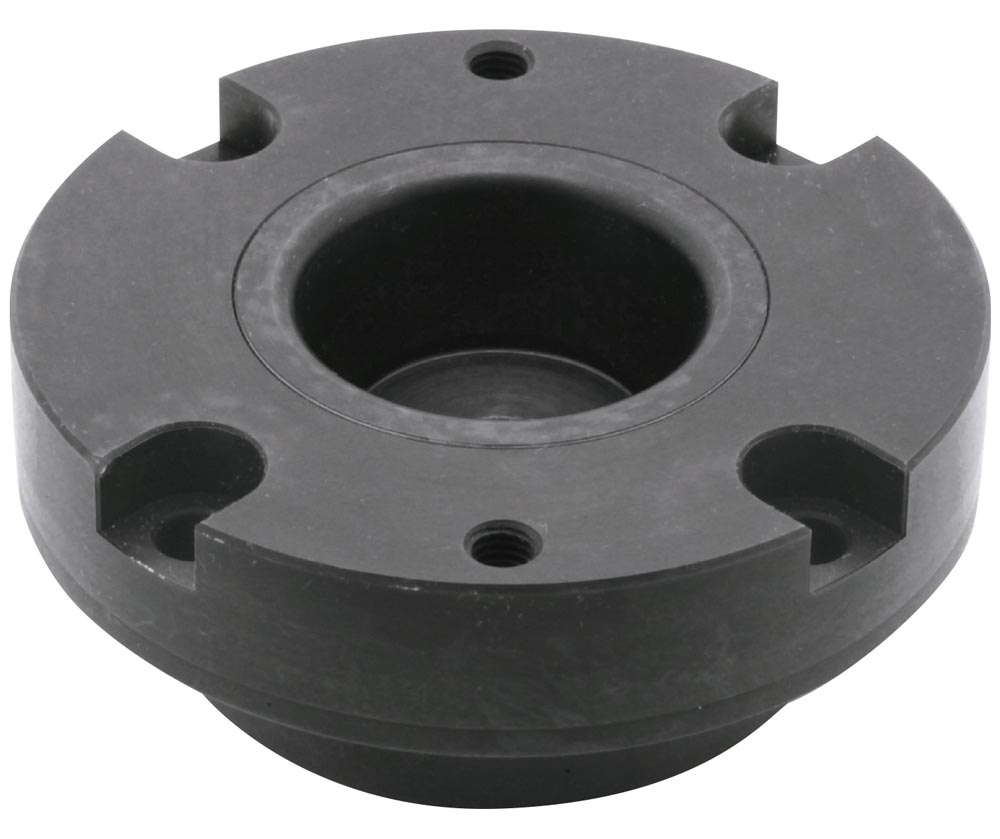

Flex Locators - Receiver - Blind Style (CP725)
Flex Locators - Receiver - Blind Style (CP725)

Part Options


These flex locators receivers are used with flex blind-style locator pins. In combination, these parts are designed to be mounted on fixture bases and plates for highly accurate locating and positioning and allow for precise repeatability when moving to a new machine or different operation. Used in both vertical and horizontal applications. The receivers are spring loaded to make removing the fixture plate quick and easy. The body is made from 4140 alloy steel with a black oxide finish. The tapered bushing is made from nitrocarburized treated 4140 steel.
