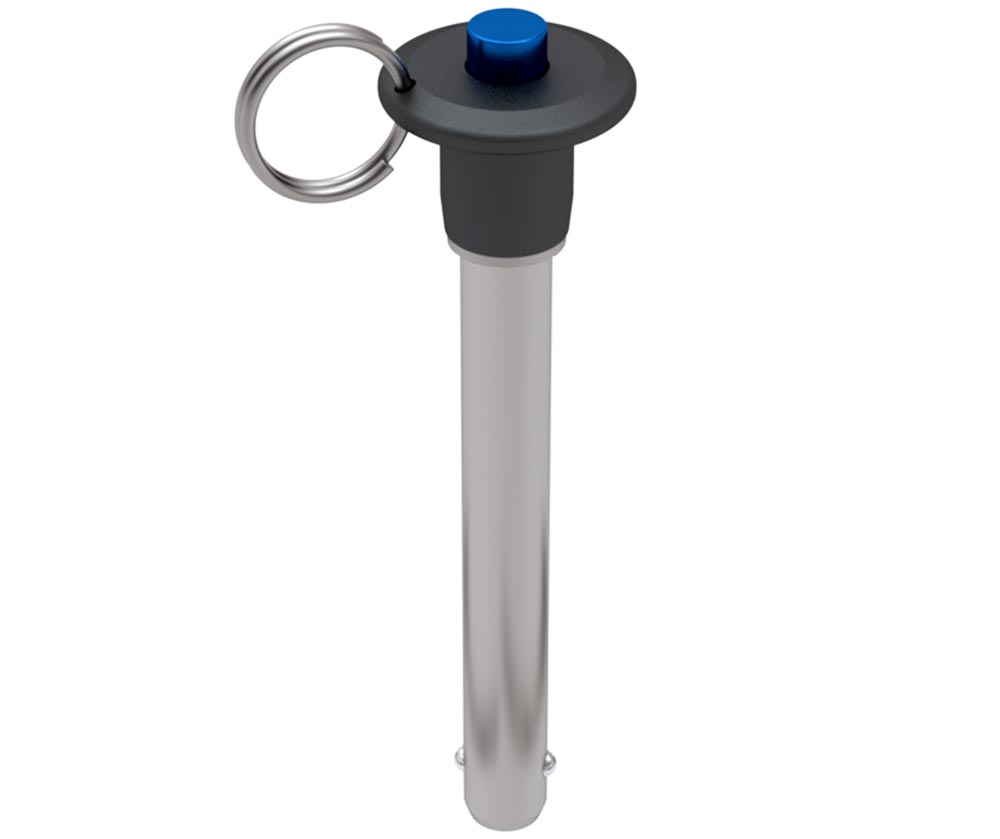

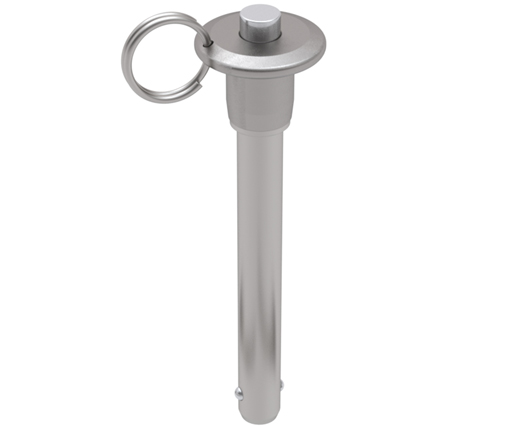

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 300 series stainless steel. The handles and actuator buttons are made from 303 stainless steel. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders.
