Wire Rope Lanyards

Loop-teardrop, 1/16" or 3/64" wire, sleeve material and cover color options

Product Types


Quick Release Pin Wire Rope Lanyards - Zinc-plated Copper Sleeve - 3/64
Quick Release Pin Wire Rope Lanyards - Zinc-plated Copper Sleeve - 3/64

Part Options


Description

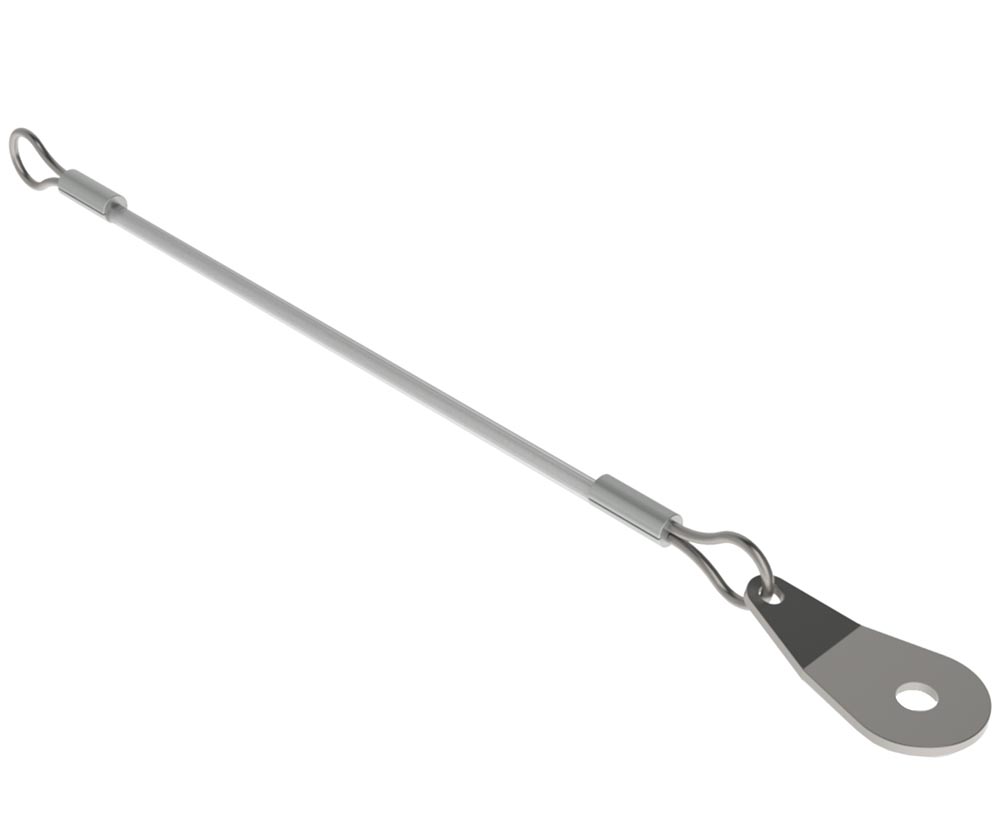

These wire rope lanyard assemblies are used to attach quick release pins to a fixture or frame, to prevent the pins from being misplaced while they are not in use. The wire rope lanyard assemblies made from 7 x 7 stainless steel wire and are available either uncovered (bare cable) or covered. The vinyl covered assemblies are available in either clear, black or green. The 3/64" wire is covered to 1/16" diameter. The rated break strength of the 3/64" wire is 270 lbs. The cable sleeves are manufactured from zinc plated copper with stainless steel sleeves available on request. The tab is made from 300 series stainless steel. In addition to the standard parts listed, we can provide custom lanyards based on your exact requirements.
