Shaft Locking Clamps

Plastic body

Product Types

Quick Shaft-Locking Clamps (QCSPL) - Fixtureworks
Quick Shaft-Locking Clamps (QCSPL) - Fixtureworks

Part Options

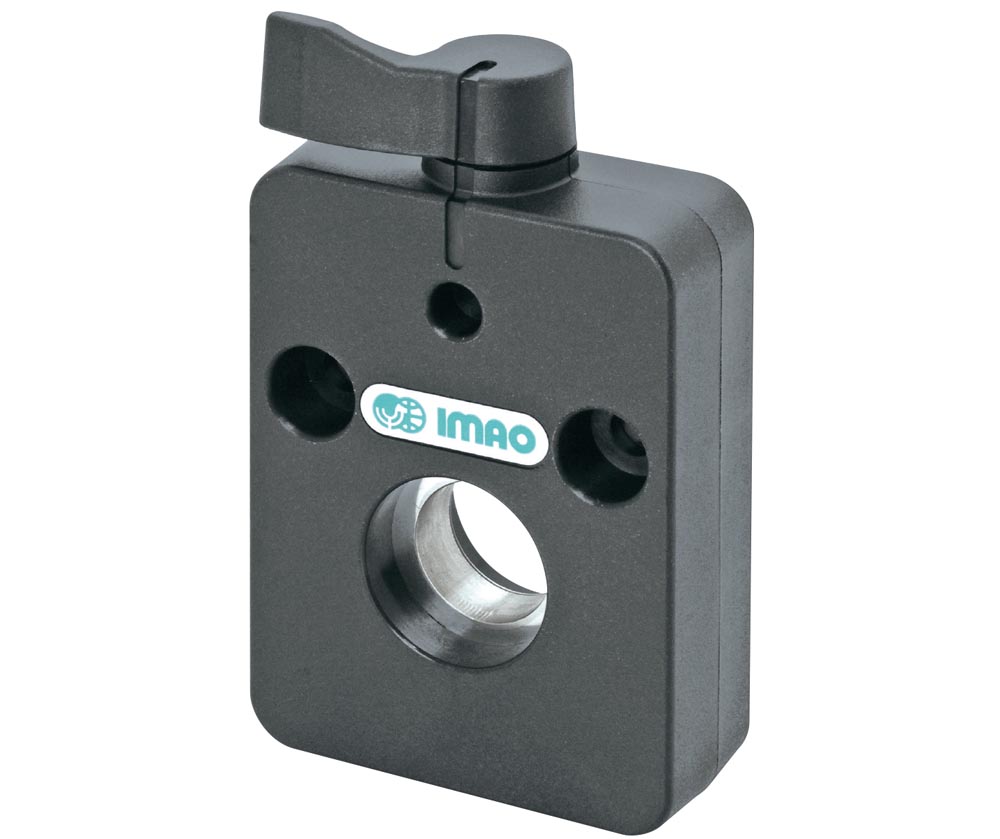

These shaft locking clamps are designed to positively lock a shaft quickly without the use of tools. Ideal for applications where frequent position adjustments are made. As the handle is pushed, a locking block clamps the shaft into position. As the handle is released, a spring releases the locking block allowing the shaft to move freely. The position of the handle and indication marks on the body of clamp shows the locked and unlocked positions. The bodies have mounting holes for use with a position indicator. The body and handle are made from glass-fiber reinforced plastic. The clamp collar is made from 630 stainless steel.
