03108

Locating Pins

Diamond or round head, steel or stainless steel, w/ shoulder

Product Types

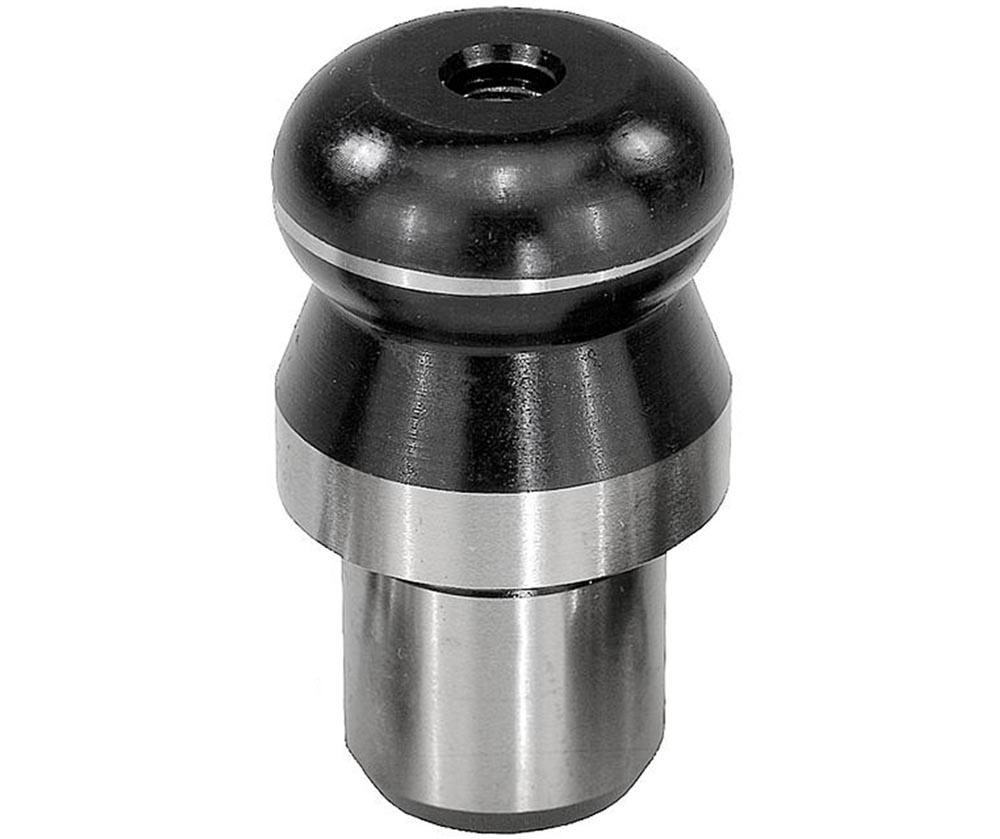

Work Locators - Ball End Locating Pin w/ Shoulder - Round - Stainless - Metric
Work Locators - Ball End Locating Pin w/ Shoulder - Round - Stainless - Metric

Part Options


Description


These locating pins are used to accurately position and align fixtures and workpieces. The round and diamond style pins are often used together in mounting applications. The round style pins locate on two axis while the diamond style pins are relieved and locate only on one axis to reduce binding and sticking during loading and unloading. Made from 300 series stainless steel, ground and surface hardened.
