MB-102x/502x

Side Clamps

Cam type, hex, low profile

Product Types


Cam Clamps - Low Profile - Hex - Metric
Cam Clamps - Low Profile - Hex - Metric

Part Options


Description

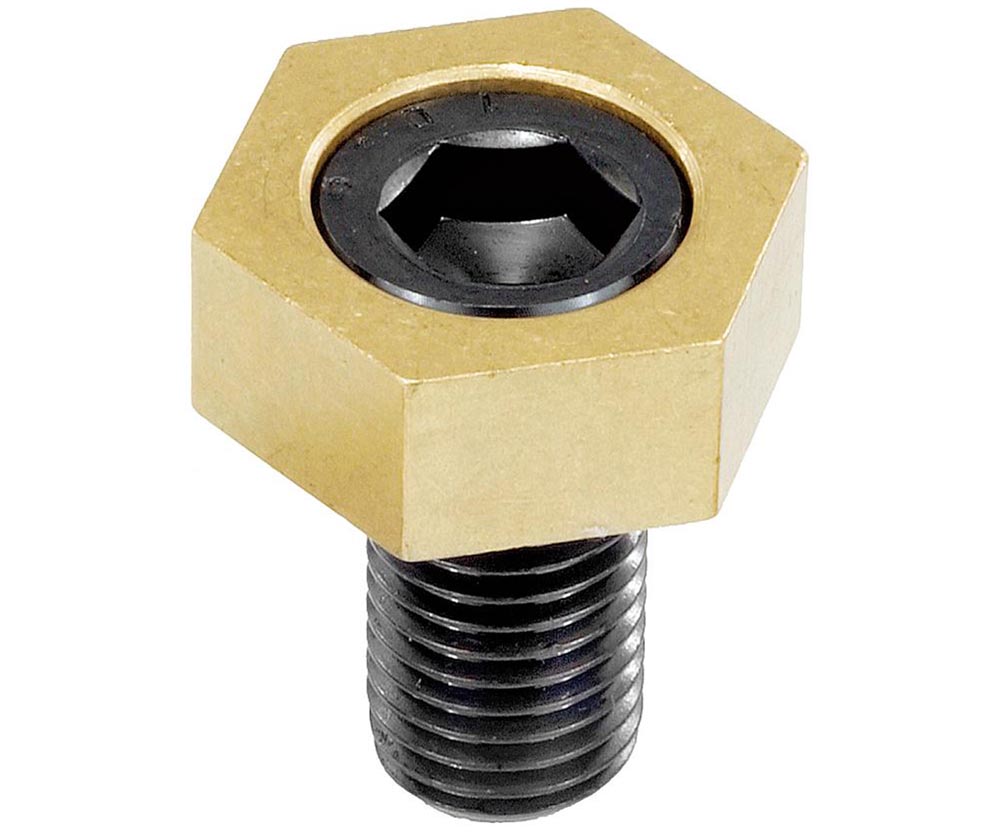

These fixture clamps are made up of a hardened steel socket cap screw with an offset head and a brass hex washer. By tightening down on the screw, the washer is forced towards the workpiece to provide fast strong clamping. The low profile and small size allow for faster set up and more parts per load. Please note: clockwise location is recommended. The workpiece stop should be on the right of the clamp.

NOTE FROM PRODUCT TABLE
*W1 - Location to drill and tap from edge of the workpiece.
