MBOD

Form Holding Clamps

OD holding, concentric

Product Types

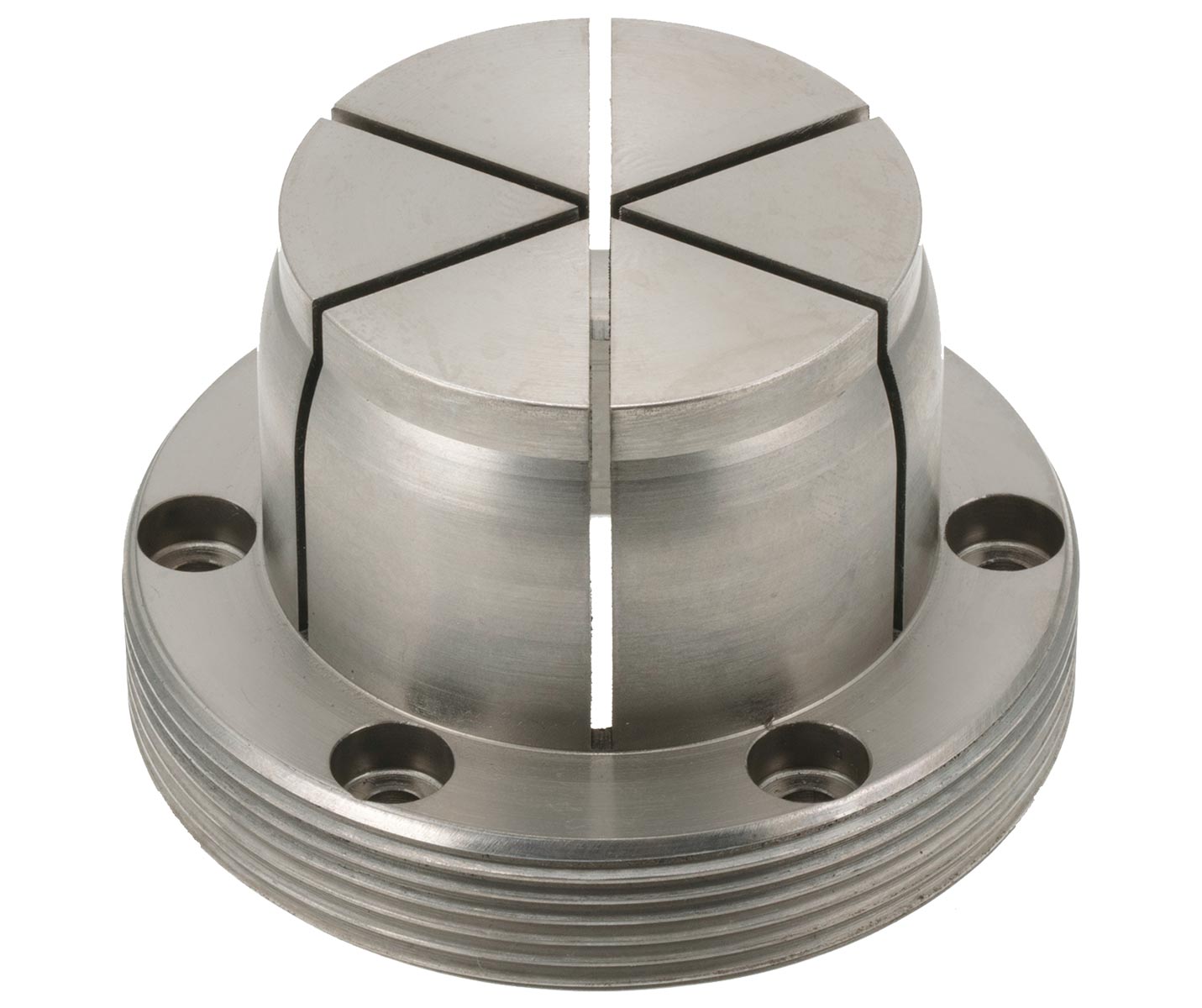

Form Holding Clamp - Jaw only (MBOD)
Form Holding Clamp - Jaw only (MBOD)

Part Options


Description


This jaw is used on MBOD concentric OD Clamp units (sold separately). The compact design of these OD clamp units provides high clamping force and is applicable for small workpieces as small as 2.5mm diameter. The machinable, collet-shaped jaw can be machined to custom fit the workpiece. The clamp is also applicable for long workpieces by machining completely through. Indicators on the cap are guides to read the rotation degree for torque control without a torque wrench. The jaw is made from S17C steel.
