QLSWC-R/L

Swing Clamps

Black oxide or nickel-plated, right or left

Product Types


Swing Clamps - One-Touch Miniature - with Std Handle - Nickel Plated (QLSWC-NP) - Fixtureworks
Swing Clamps - One-Touch Miniature - with Std Handle - Nickel Plated (QLSWC-NP) - Fixtureworks

Part Options


Description

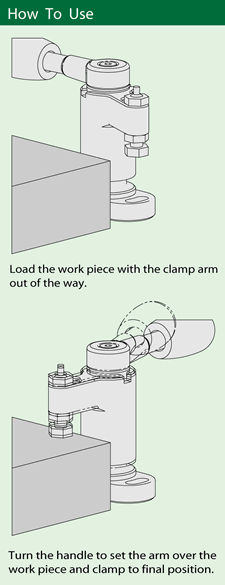

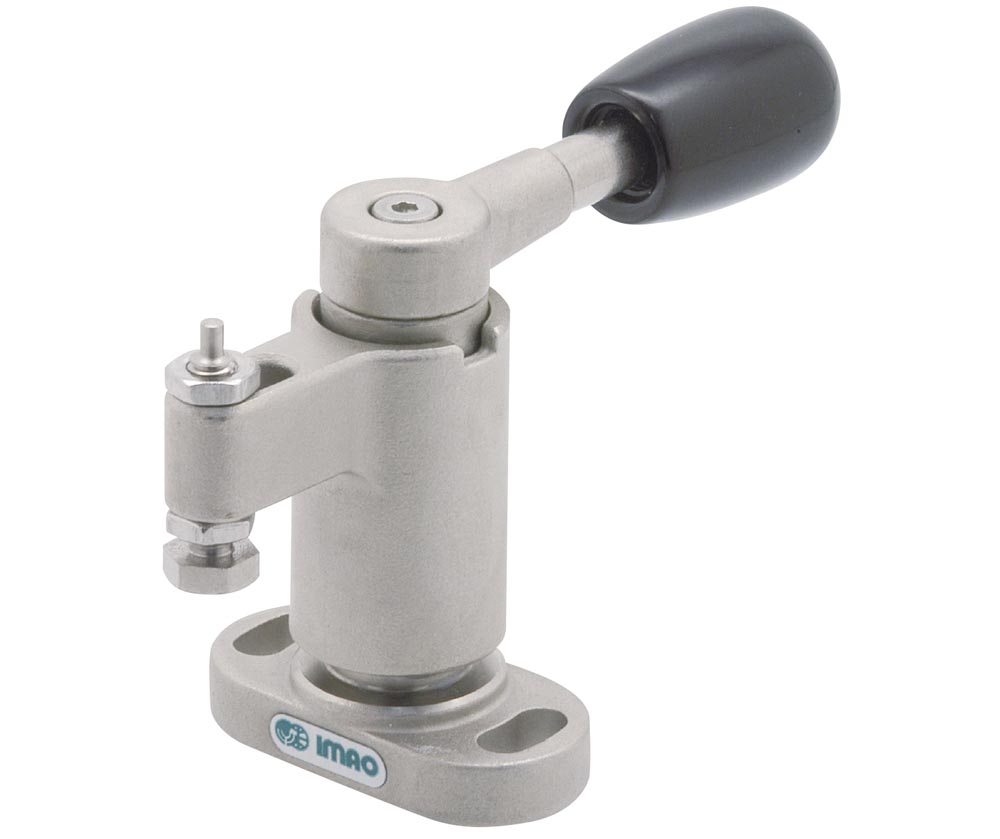

These miniature swing clamps swing into position and clamp straight down onto the workpiece for direct downward pressure. The arm swings completely out of the way to allow for easy loading and unloading of the workpiece. Ideal for repetitive clamping operations. Comes with a contact bolt that can be reversed for finished or rough surfaces. Mounts from the top with two mounting holes. Part numbers ending with R have a clockwise clamping direction, part numbers ending in L have a counter clockwise clamping direction.

The body, handle and spindle are made from SAE-1045 alloy steel. The clamp arm and cam shaft are made from SAE-4140 alloy steel. Parts are heat treated. The electroless nickel plating provides improved corrosion and wear resistance to increase the life of the clamp in harsh environments. Handle made from black plastic.
