QLRCF

Thrust Clamps

Vertical clamping body, light or heavy duty

Product Types

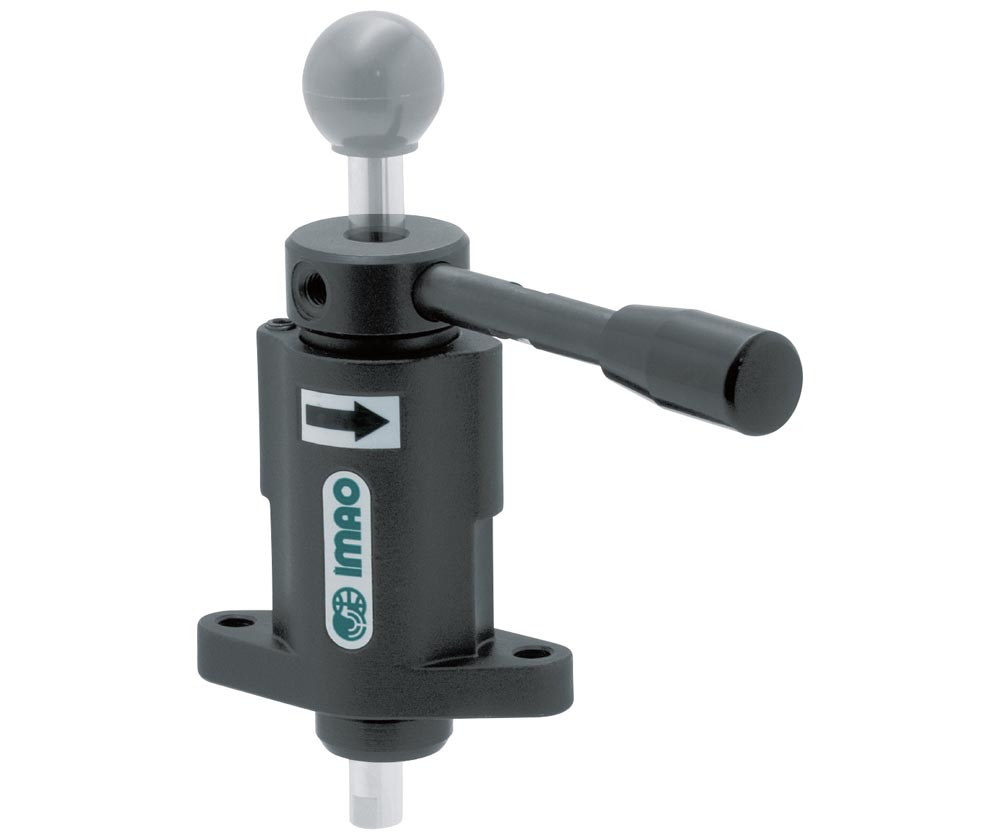

Thrust Clamps - One -Touch - Vertical Clamping Body - Heavy Duty (QLRC)
Thrust Clamps - One -Touch - Vertical Clamping Body - Heavy Duty (QLRC)

Part Options


Description


These thrust clamps feature a clamping body and a clamping bar used together for a wide range of workholding solutions. To clamp, simply push the bar through the center of the clamping body until contact is made with the workpiece. Final clamping is achieved by turning the handle which extends and clamps the bar for secure workholding. Releasing the handle allows the clamping bar to be retracted for workpiece removal. The long clamping bar projection range allows for clamping recessed or hard to access parts. The clamping bar has a tapped end so a custom tip can be used. The clamping bar can be cut shorter to the desired lengths. (If the user is making a custom clamping bar, it is recommended the outside diameter is finished to an h9 or better tolerance to insure proper fit.) The clamping body and lever arm are made from 1045 alloy steel. The internal cam is made from hardened 4115 alloy steel. Black oxide finish. The handle is black plastic. When the reaction force exceeds the stated clamping force, the clamp will release. The clamp body and clamp bar are sold separately.

For the QLRCF-08 clamps, use the 8 mm clamping bar, for the QLRCF-12 clamps, use the 12 mm clamping bar.
