S Series

Centering Vises

Basic or premium, with GripSert-equipped jaws

Product Types

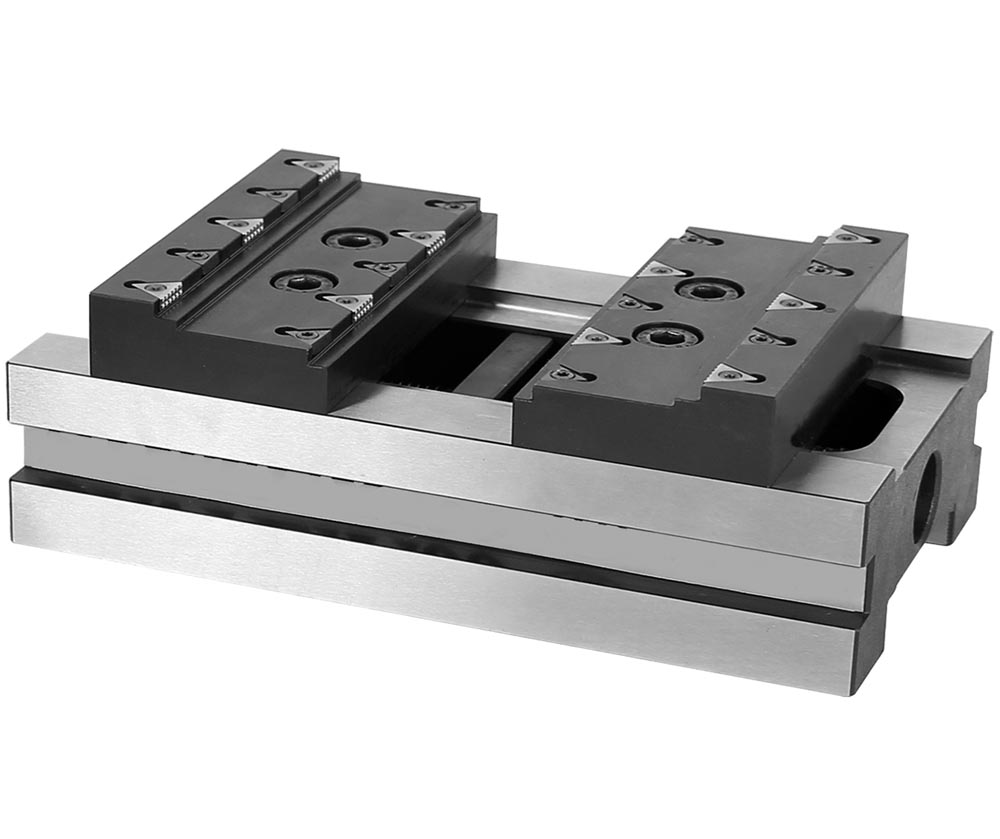

TriMax S Series Vises - Premium Set
TriMax S Series Vises - Premium Set

Part Options


Description


This Premium vise set features stepped jaws that can hold up to ten TG GripSert workholding grippers on each jaw. It allows clamping up to 150 mm. TriMax self-centering vises feature high clamping forces and accuracy while using just 3.5 mm of workpiece surface utilizing patented TG GripSert workholding grippers. These vises allow for first and secondary operations with one jaw set, eliminating the need for multiple set ups. Their low profile provides machining tool access required for 5-axis machining. TriMax S vises also allow for workpiece repeatability of just +/-.01 mm.

A Basic and a Premium version of the TriMax S vise are available. This Premium version has a clamping range of 7-150 mm. The Premium TriMax S vise can be mounted on a T-slot or grid machine table as well as custom fixtures. Vise comes with ten TG-STD inserts made for holding steel workpieces (for hardened steel or aluminum, HRC or ALU-type inserts available on request. For more information on TG GripSerts, see TG GripSerts category online). Vise sets also include a wrench and a work stop with washer and screw. Jaws are sold in pairs.
