QCTHL

Quarter-Turn Fasteners

Low profile, stainless steel knob

Product Types


One Touch Fasteners - Quarter-Turn - Low Profile (QCTHL)
One Touch Fasteners - Quarter-Turn - Low Profile (QCTHL)

Part Options


Description

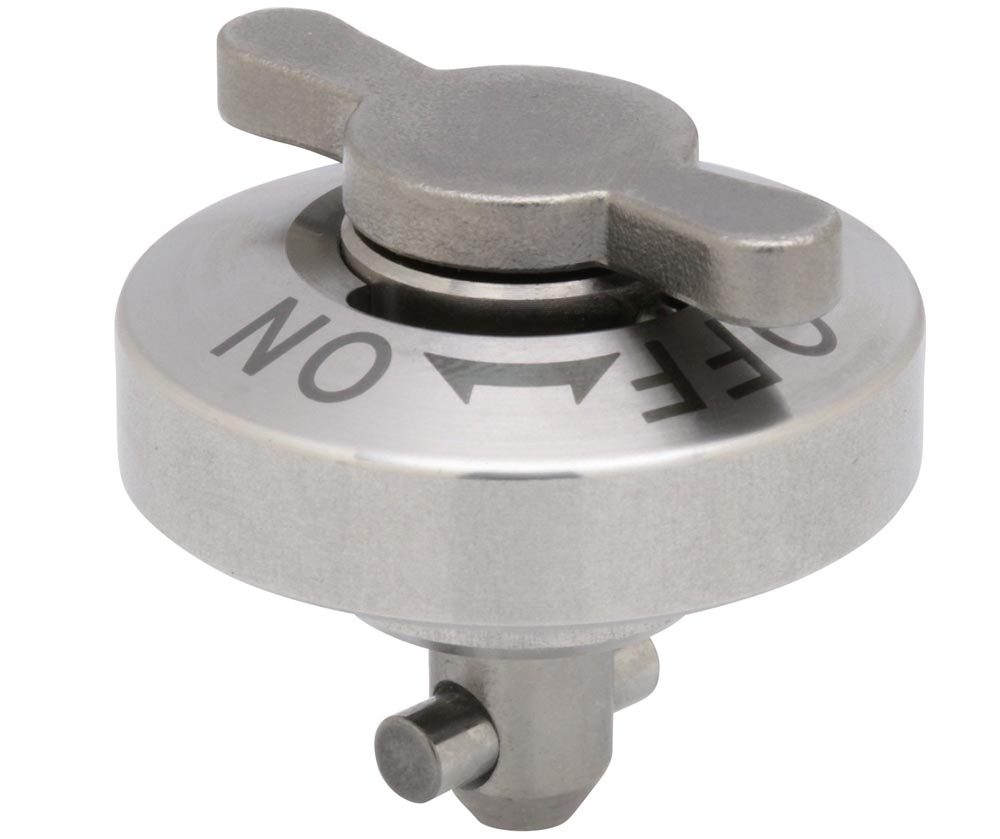

Provide positive locking in quick change applications where there is frequent insertion and removal of a fastener. They allow for consistent fastening force, eliminating the chance for under or over tightening by the operator. They are designed to be used with the cam receptacles referenced on the table. The fastener is mounted to the fixture and the receptacle is mounted to the base. As the fastener is inserted into the receptacle, the pins on the fastener align with the grooves in the receptacle. The spring in the fastener allow for a range of fixture thicknesses. Turning the knob one quarter turn aligns and locks the fastener into place. The fasteners are marked with “ON” and “OFF” indicators to show the position of the fastening pins. They can be used with locating pins to provide highly accurate positioning. The body is made from 300 stainless steel with an electroless nickel plating finish. The pins are made from 304 stainless steel. The knob is made from stainless steel. The spring made from A877 steel. Three socket head cap screws for mounting are included (M3X0.5 - 6 mm long or M2X0.4 - 5 mm long). The receptacles are available in two mounting styles – thin plate and embedded.
